| Spec | Value |
|---|---|
| Manufacturer | Tigo Energy |

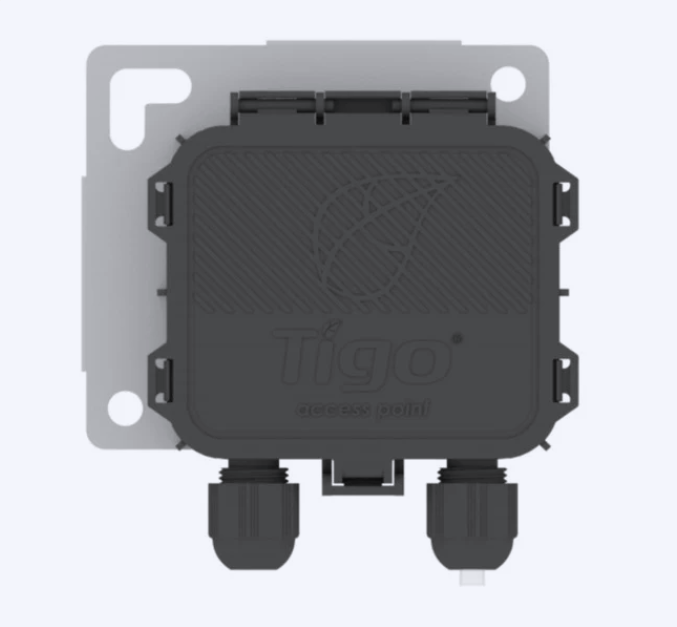

| Model | TAP Access Point |
| Part Number (MPN) | 158-00000-02 |
| Device Type | Wireless Communication Access Point |
| Compatible Devices | Tigo TS4-A-O, TS4-A-S, TS4-A-M MLPE |
| Maximum Connected TS4 Units | Up to 300 devices per TAP |
| Communication | Wireless mesh network with TS4 devices |
| Connection to CCA | RS485 wired communication |
| Operating Voltage | 5 – 25 V DC |
| Power Consumption | 0.5 W average, 1 W peak |
| Operating Temperature | -30°C to +70°C |
| Protection Rating | IP68 / Type 4R |
| Dimensions | 1.06 L x 5.11 W x 4.97 H inches |
| Weight | 0.5 lb |
| Installation | Tool-free mounting on module frame |
