Testing Condition |
STC |
|
Maximum Power (Pmax/W) |
585 |
|
Operating Voltage (Vmpp/V) |
44.22 |
|
Operating Current (Impp/A) |
13.23 |
|
Open-Circuit Voltage (Voc/V) |
52.17 |
|
Short-Circuit Current (Isc/A) |
13.89 |
|
Module Efficiency (%) |
22.60 |
| Specification | Details |
|---|---|

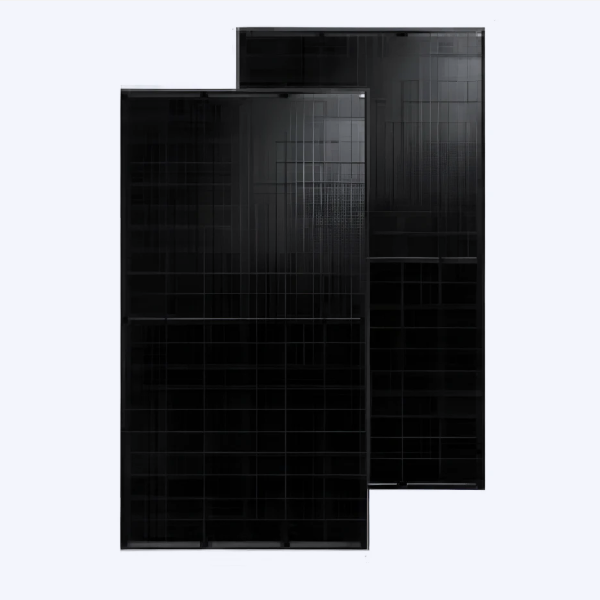

| Model Number | TM7G72M-585 |
| Power Output (Pmax) | 585W |
| Maximum Efficiency | 22.7% |
| Power Tolerance | 0~+5W |
| Open Circuit Voltage (Voc) | 52.7V |
| Short Circuit Current (Isc) | 14.01A |
| Maximum Power Voltage (Vmp) | 44.01V |
| Maximum Power Current (Imp) | 13.29A |
| Module Dimensions (L x W x H) | 89.69" x 44.65" x 1.18" |
| Weight | 70.11 lbs |
| Cell Type | N-Type Monocrystalline (16BB, 144 Half-Cell) |
| Front Glass | 2.0mm AR Coated Semi-Tempered Glass |
| Back Glass | 2.0mm Glazed Semi-Tempered Glass |
| Frame Material | Anodized Aluminum Alloy |
| Junction Box | IP68, 3 Bypass Diodes |
| Connector Type | MC4 / MC4-EVO2 |
| Cable Length | 350mm (+), 250mm (-) or Customized Length |
| Maximum System Voltage | 1500V DC |
| Maximum Fuse Rating | 30A |
| Operating Temperature | -40°C to +85°C |
| Certifications | IEC 61215, IEC 61730, UL 61730, ISO 9001, ISO 14001 |
