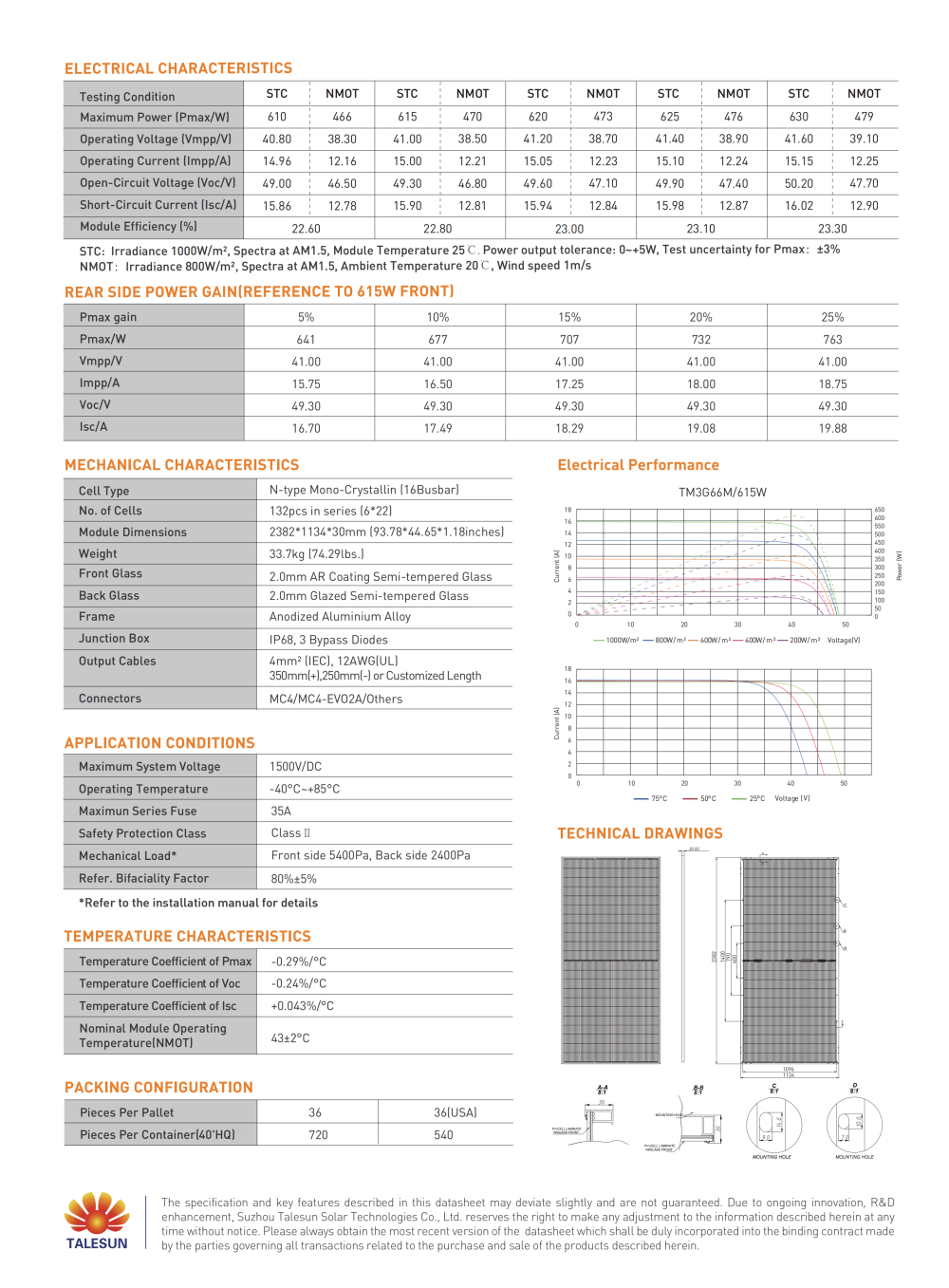

Testing Condition |
STC |
|
Maximum Power (Pmax/W) |
620 |
|
Operating Voltage (Vmpp/V) |
41.20 |
|
Operating Current (Impp/A) |
15.05 |
|
Open-Circuit Voltage (Voc/V) |
49.6 |
|
Short-Circuit Current (Isc/A) |
15.94 |
|
Module Efficiency (%) |
23.00 |

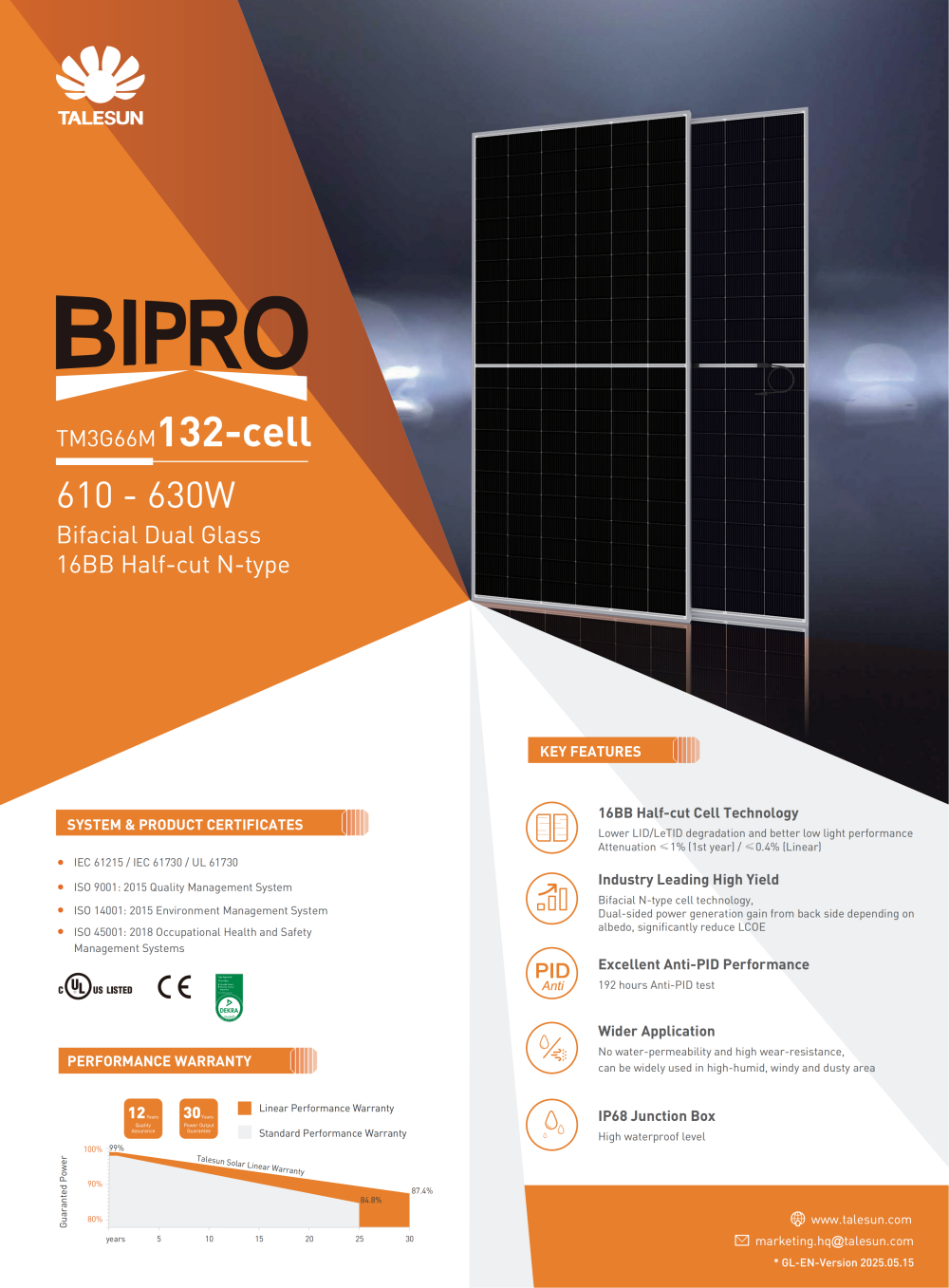

| Specification | Details |
|---|---|

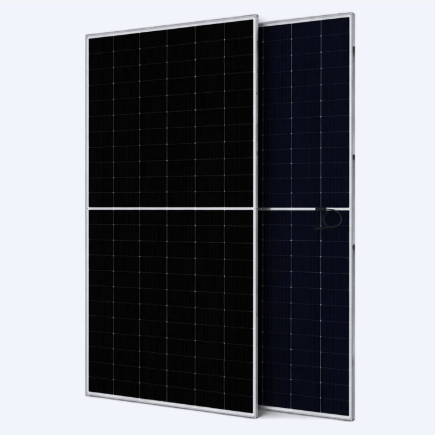

| Manufacturer | Talesun Solar |
| Model | TM3G66M-620 |
| Cell Type | N-Type Mono-Crystalline, 16BB |
| Cell Configuration | 132 cells (6×22) |
| Maximum Power (Pmax) | 620 W |
| Module Efficiency | 23.00% |
| Maximum Power Voltage (Vmp) | 41.20 V |
| Maximum Power Current (Imp) | 15.05 A |
| Open Circuit Voltage (Voc) | 49.60 V |
| Short Circuit Current (Isc) | 15.94 A |
| Power Tolerance | 0~+5 W |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 35 A |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Temperature Coefficient (Voc) | -0.24% / °C |
| Temperature Coefficient (Isc) | +0.043% / °C |
| Nominal Module Operating Temp (NMOT) | 43 ±2°C |
| Dimensions | 93.78 × 44.65 × 1.18 in |
| Weight | 74.29 lbs |
| Front Glass | 2.0 mm AR Coating Semi-tempered |
| Back Glass | 2.0 mm Glazed Semi-tempered |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68, 3 bypass diodes |
| Connector | MC4 / MC4-EVO2 compatible |
| Mechanical Load | 5400 Pa (Front) / 2400 Pa (Back) |
| Bifaciality Factor | 80% ±5% |
| Packing | 36 pcs per pallet (USA) / 540 pcs per 40’ HQ |
