Home > All Products > BOS & Components > Tigo RSS Transmitter 490-00000-51 Rapid Shutdown Activator DIN Mount

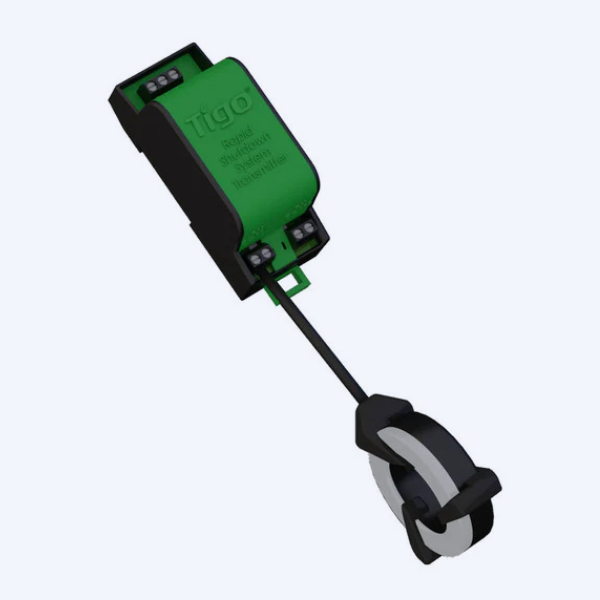

  • Tigo RSS Transmitter 490-00000-51 Rapid Shutdown Activator DIN Mount
1/1
  • Tigo RSS Transmitter 490-00000-51 Rapid Shutdown Activator DIN Mount
Share:

Tigo Single Core Pure Signal RSS DIN Rail Transmitter (490-00000-51)

No.490-00000-51
0.0 (0)
$53.14 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
Download
Add to Favorites (0)
  • Tigo RSS Transmitter 490-00000-51 Rapid Shutdown Activator DIN Mount
  • Tigo RSS Transmitter 490-00000-51 Rapid Shutdown Activator DIN Mount
1/1
  • Tigo RSS Transmitter 490-00000-51 Rapid Shutdown Activator DIN Mount
  • Description
Spec Value
Input Voltage 12VDC ±2%
Input Current 1A
Power Consumption 5.5W (max), 0.85W (average)
Power Standby 0.06W
Conductor Length 500 mm (19.7 in)
Max Current per Core 160A
Max String Voltage 1500VDC
Max Strings per Core 10
Max PV Modules per String 30
Operating Temperature -40°C to 85°C (-40°F to 185°F)
Enclosure Temperature Range -20°C to 50°C (-4°F to 122°F)
Enclosure Rating IP68, NEMA 3R
Core Dimensions 3.58 × 1.50 × 1.63 in
Enclosure Dimensions 10.63 × 6.69 × 4.33 in
