Product Description
Precision Designed for Residential Energy Needs

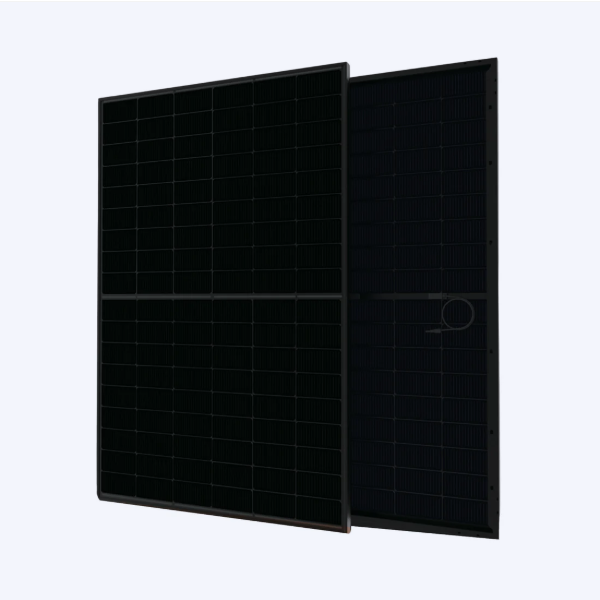

This innovative black solar panel is crafted specifically for homeowners seeking to enhance their energy independence without compromising on style. The panel’s all-black finish integrates seamlessly with contemporary rooftop aesthetics, adding visual appeal while delivering top-tier solar performance. Ideal for homeowners in diverse climates, the product offers resilience and reliable energy output, supported by leading warranties. This solution fits perfectly for users aiming to capitalize on proven n type solar panels technology with the added benefit of a solar panel bifacial system that effectively captures reflected sunlight to maximize daily generation.
Advanced Technical Specifications Elevate Efficiency
Equipped with cutting-edge topcon solar panel technology, this product utilizes high-purity n type solar panels cells arranged in an efficient bifacial dual-glass design. The solar panel bifacial construction allows energy capture from both the front and rear surfaces, increasing total power output by up to 25%. Featuring anti-reflective coatings and robust semi-tempered glass, it withstands severe environmental conditions. With a module efficiency reaching 22.8% and operating parameters optimized for voltages up to 1500V, it supports high-capacity system integration without performance drop-off, meeting strict technical demands for durability and output stability.
Versatile Application in Diverse Solar Installations
This panel’s durable design and superior power yield make it well-suited for multiple industry settings, including residential rooftop projects and retrofit solar systems needing performance enhancements. The bifacial nature enables efficient use of ground-reflected light, boosting system-wide energy harvest especially in regions with varied lighting conditions. Thanks to its rugged structure and IP68 junction box rating, it operates reliably in environments exposed to heavy winds and snow loads. This advancement in n type solar panels technology helps residential and small-scale commercial users optimize their energy investments efficiently and sustainably.
Key Highlights
- 16BB N-Type TOPCon Technology: Premium half-cut cell design offering higher module efficiency (≤1% 1st year degradation, ≤0.4% annual) and optimal performance under low-light conditions.
- Bifacial Dual-Glass Architecture: Captures ground-reflected light on the backside for up to 25% additional energy yield, maximizing total lifetime power output.
- All-Black Residential Aesthetic: Sleek black frame and backsheet seamlessly blend with modern residential roofs for maximum curb appeal.
- Heavy-Duty Durability: Dual 2.0mm semi-tempered glass paired with an IP68 junction box, engineered for extreme weather (5400Pa snow load / 2400Pa wind load).
- Certifications & Warranty: UL 61730 & CE listed. Backed by a 25-Year Product Warranty and a 30-Year Linear Power Warranty.
Shipping & SoCal Warehouse Pickup
• Free Local Pickup: Available at our warehouse in Anaheim, CA (Same-Day or Next-Day pickup available upon request).
• US Freight Delivery: Safely palletized and shipped nationwide via heavy freight directly to your job site or home.
|
Testing Condition
|
STC
|
|
Maximum Power (Pmax/W)
|
445
|
|
Operating Voltage (Vmpp/V)
|
33.07
|
|
Operating Current (Impp/A)
|
13.46
|
|
Open-Circuit Voltage (Voc/V)
|
39.45
|
|
Short-Circuit Current (Isc/A)
|
13.82
|
|
Module Efficiency (%)
|
22.80
|
| Specification |
Value |
| Manufacturer |
Talesun |
| Model |
TM7G54M-445 |
| Rated Power (Pmax) |
445W |
| Module Efficiency |
22.80% |
| Cell Type |
N-type Mono-Crystalline (16 Busbar) |
| Number of Cells |
108 cells (6 × 18) |
| Module Type |
Bifacial Dual Glass (Full Black) |
| Operating Voltage (Vmpp) |
33.07V |
| Operating Current (Impp) |
13.46A |
| Open-Circuit Voltage (Voc) |
39.45V |
| Short-Circuit Current (Isc) |
13.82A |
| Maximum System Voltage |
1500V DC |
| Operating Temperature |
-40°C to +85°C |
| Maximum Series Fuse |
30A |
| Safety Protection Class |
Class II |
| Front Glass |
2.0mm AR Coating Semi-tempered Glass |
| Back Glass |
2.0mm Glazed Semi-tempered Glass |
| Frame |
Anodized Aluminium Alloy |
| Junction Box |
IP68, 3 Bypass Diodes |
| Connectors |
MC4 / MC4-EVO2 / Others |
| Output Cables |
4mm² (IEC), 12AWG (UL) |
| Cable Length |
350mm (+), 250mm (-) or customized |
| Dimensions (L x W x H) |
67.80 x 44.65 x 1.18 inches |
| Weight |
54.01 lbs |
| Mechanical Load |
Front 5400Pa / Rear 2400Pa |
| Bifaciality Factor |
80% ± 5% |
| NMOT |
43 ± 2°C |
| Temperature Coefficient (Pmax) |
-0.29% / °C |
| Temperature Coefficient (Voc) |
-0.24% / °C |
| Temperature Coefficient (Isc) |
+0.043% / °C |
FAQ
What benefits do the Talesun 445W BIPRO solar panels offer for residential use?
Our black solar panel features advanced N-Type TOPCon cells and a bifacial dual-glass design, providing up to 25% more energy from the rear side. Its all-black aesthetics suit modern rooftops, combining efficiency and style for homeowners seeking dependable solar performance.
Can you explain the installation requirements for the bifacial panels?
We recommend installing our bifacial dual-glass panels in locations where reflected light is abundant to maximize the rear-side energy gain. Our team supports homeowners with guidance on mounting solutions suited for residential rooftops designed to handle the panel's mechanical load and weather resistance.
Are there options for customizing panel configurations or accessories?
While the Talesun 445W BIPRO is offered as a complete, high-efficiency unit, we provide various connector options such as MC4 and MC4-EVO2. Our technical team can advise on cable length customizations and system setups to fit your specific residential solar project requirements.
Do you stock panels locally for quick delivery or pickup?
Yes, we keep inventory in Southern California for fast US freight shipping and offer free local pickup at our Anaheim warehouse. This makes it easy for customers near us to receive high-performance n type solar panels quickly and start installation without delays.
