RUIXU RX9MP Busbar for Lithi2-16 | 800A | Orange+ Black | One Pair | work with PP140

IMPORTANT: RUiXU quick-connect busbar design features with quick-connect terminals, making it more convenient for some customers to install. It's just one of the options we offer to customers; customers don't necessarily have to use our busbar.

If use RUiXU quick-connect terminal busbar RX9MP, pls choose PP140 cable for this busbar specially.

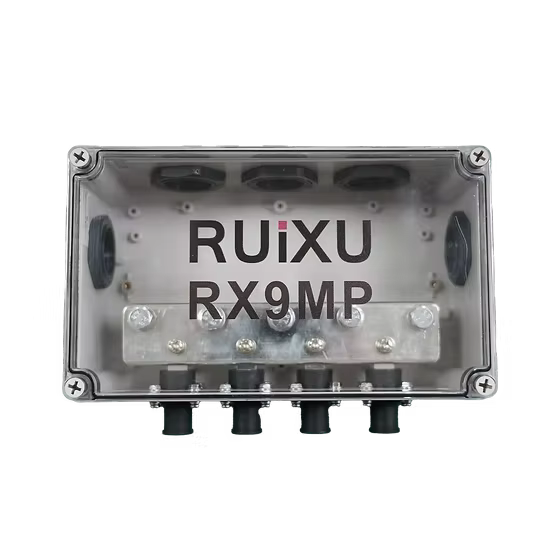

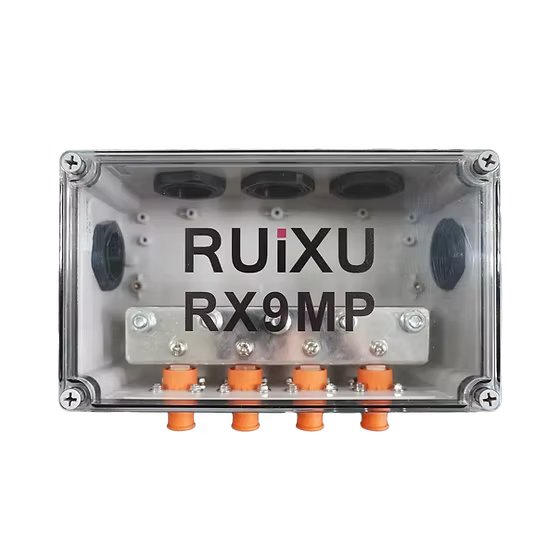

RUiXU Quick-Connect Busbar for Lithi2-16 Features

• 800A Heavy Duty: Rated at 800A continuous capacity.

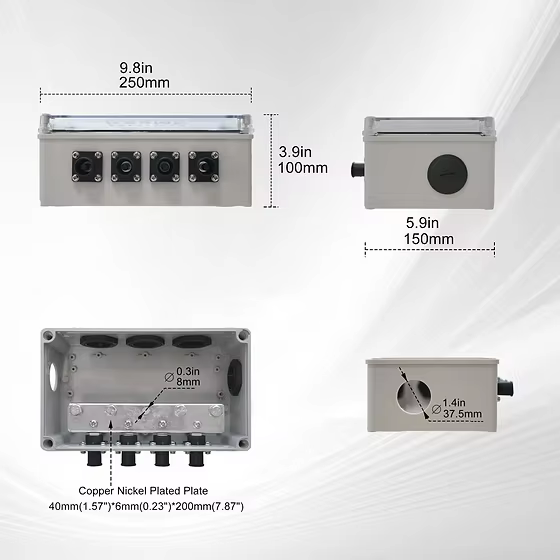

• Quality Material: Bus bar terminal block with 250mm (9.84") x 150mm (5.9") x 100mm (3.93") outer size. Uses a copper nickel-plated plate measuring 40mm (1.57") x 6mm (0.23") x 200mm (7.87") with stainless steel studs and nuts.
• 5/16" Studs & Pluggable Connectors: Power distribution block bus bar equipped with 5 x 5/16" (M8) stud posts and 4 x Pluggable Battery Pole Connectors, making it convenient to connect RUiXU Lithi2-16.
• Waterproof Design: 800Amp junction block box comes with waterproof rings that act as a seal, ensuring secure and reliable wiring.
• Wall-Mount Hardware: Equipped with screws to secure the busbar to the wall.

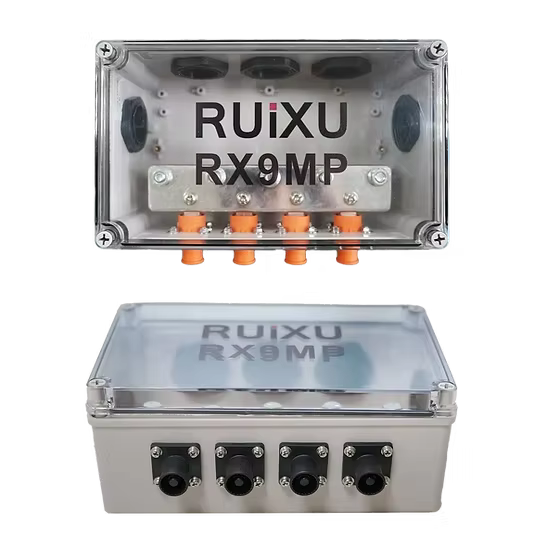

• Color-Coded Pair: Includes 1 x Orange Positive Busbar and 1 x Black Negative Busbar for Lithi2-16.

Technical Specifications
