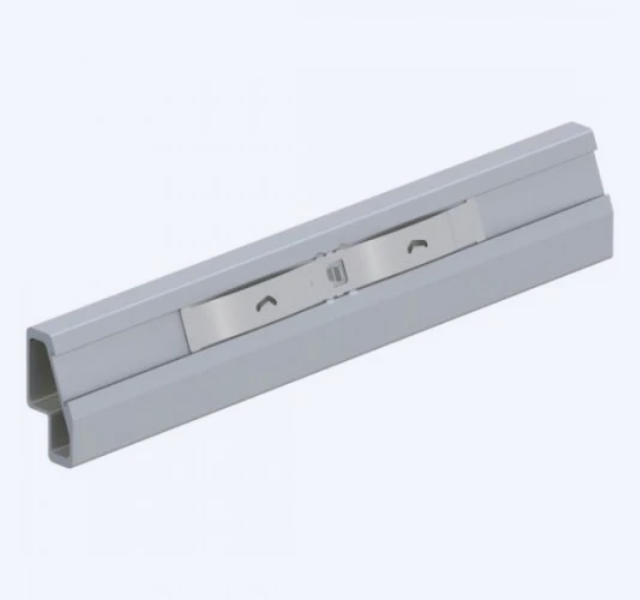

Name: IronRidge XR10 Bonded Structural Splice Mill Finish XR10-BOSS-01-M1
Brand: Solarinfi
SKU: XR10-BOSS-01-M1
Price: 9 USD
Availability: InStock

No.XR10-BOSS-01-M1

0.0 (0)

$9.00

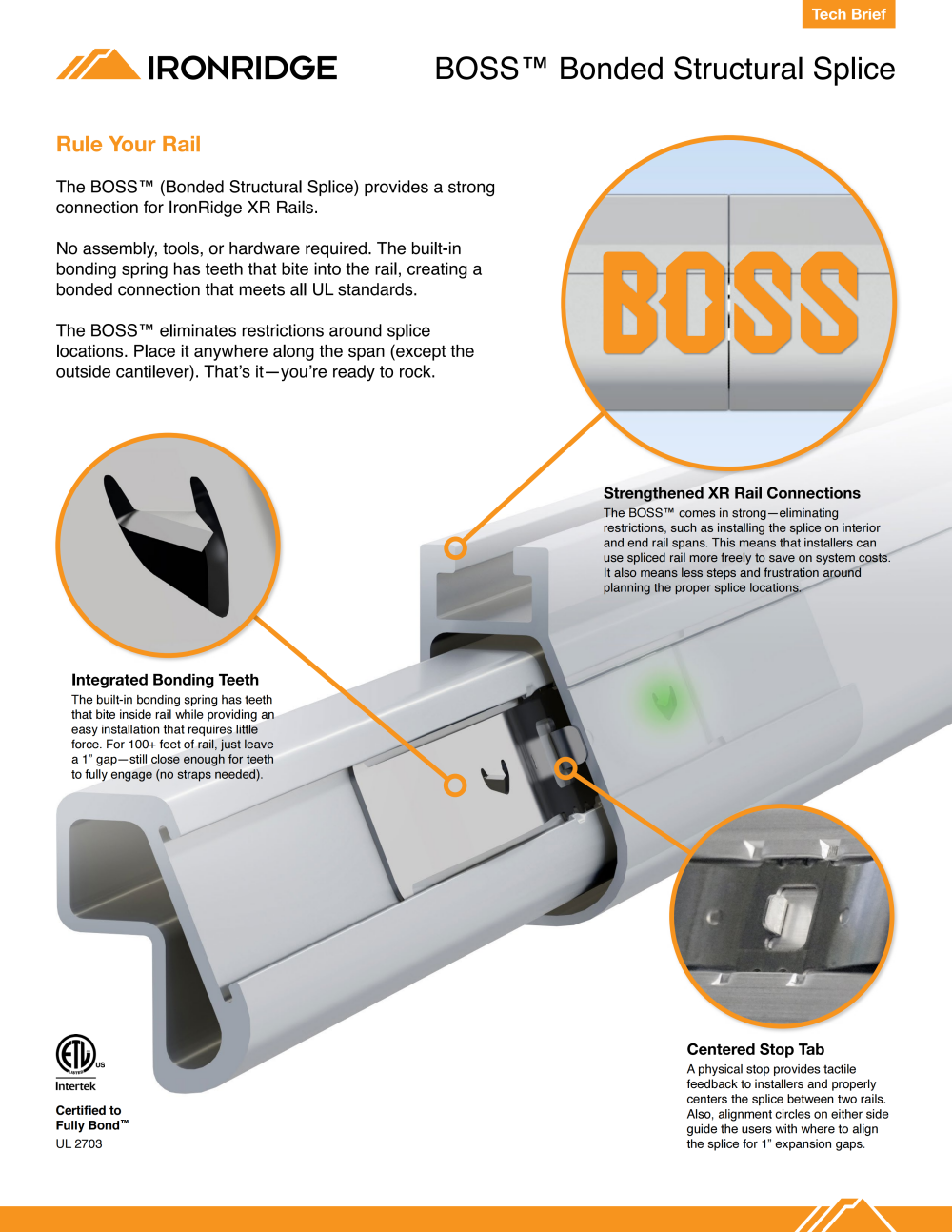

The IronRidge XR10 BOSS (Bonded Structural Splice) seamlessly connects two XR10 solar mounting rails together. Engineered for toolless installation, providing structural strength and built-in electrical bonding in a single step.

Self-Bonding Design: Features self-piercing bonding teeth that create a reliable UL 2703 electrical ground connection automatically.

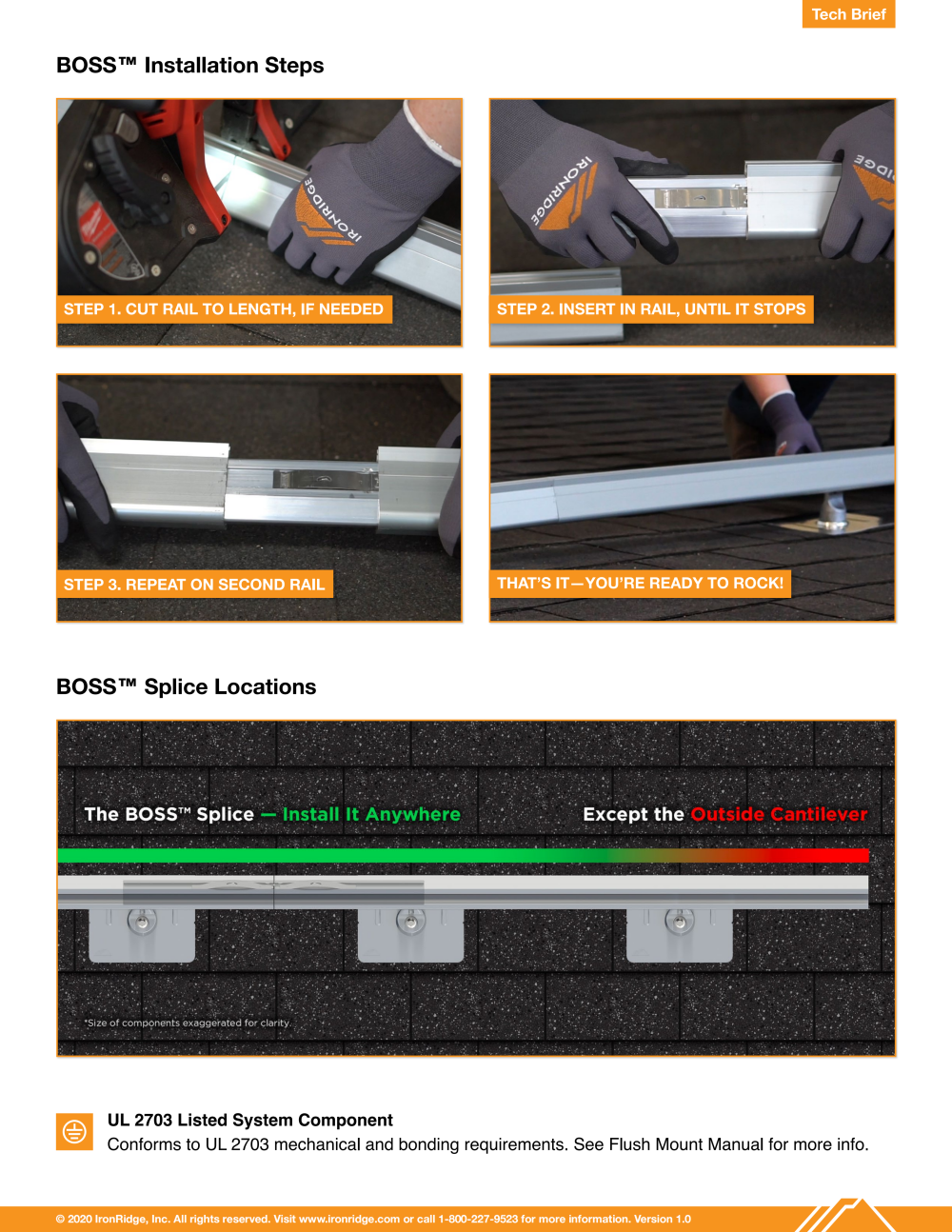

Toolless Assembly: Slide-in internal splice design requires no fasteners, speeding up roof installation times.
XR10 System Fit: Designed exclusively for IronRidge XR10 rails with a clean, concealed mill finish.
SoCal Warehouse: In stock in Anaheim, CA. Ships via fast parcel ground with free local pickup options.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Key Features

Bonded Structural Splice: Connects adjacent IronRidge XR10 rails while establishing an integrated structural and electrical bond.
Integrated Grounding (UL 2703): Equipped with self-piercing teeth that bite into the aluminum rail to eliminate separate grounding straps or jumper wires.
Concealed Internal Design: Slides neatly inside the rail cavity for a clean aesthetic without interfering with panel mounts or clamps.
Durable Construction: Built from high-strength aluminum and stainless steel components with a mill finish.

Fulfillment & Pickup

• Parcel Ground Shipping: Ships via standard UPS/FedEx Parcel Express to your home or job site.

• Local Pickup: Free local warehouse pickup available at our Anaheim, CA facility.

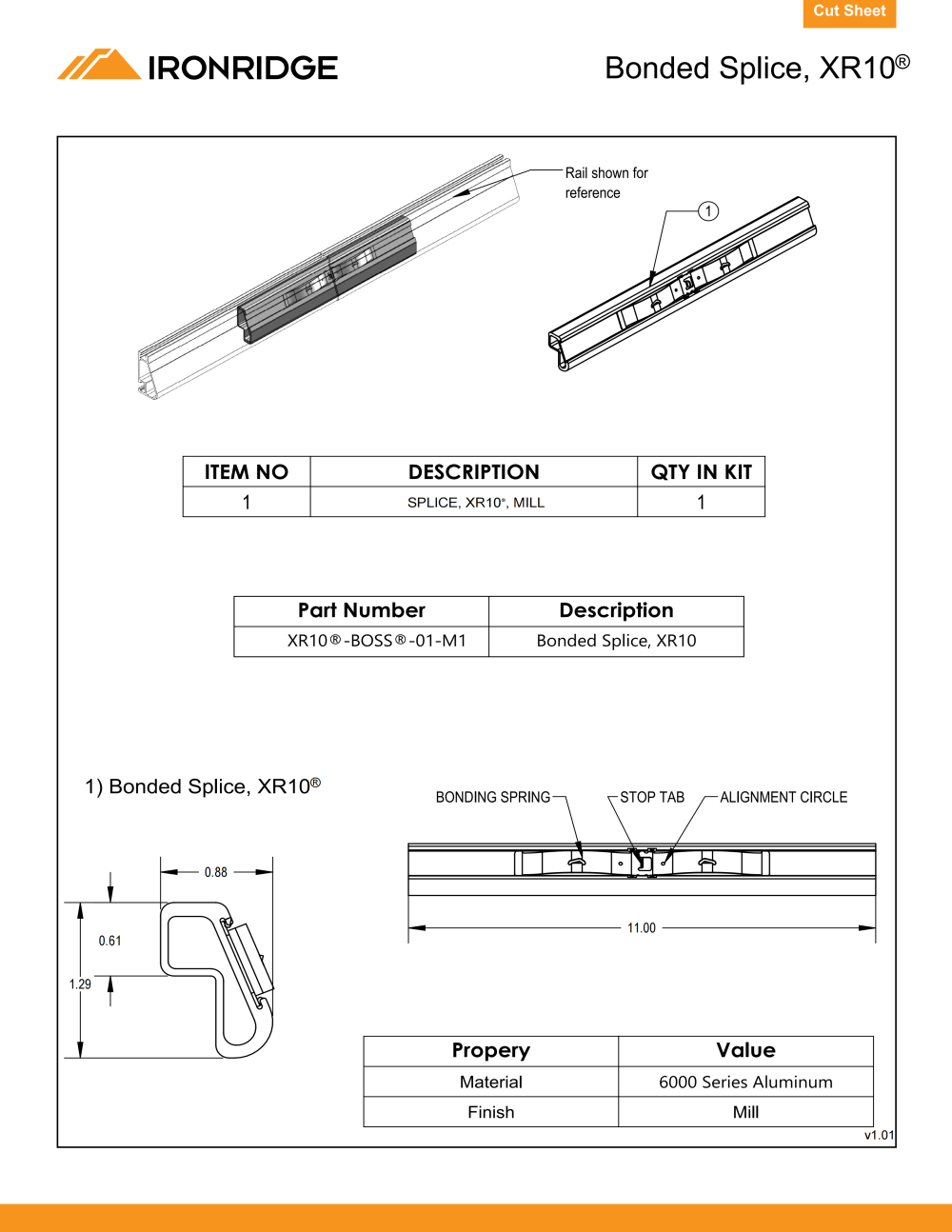

Spec	Value
Model	XR10-BOSS-01-M1
Type	Bonded Structural Splice
Compatibility	XR-10 Rails
Assembly	Tool-less
Finish	Mill
Material	High-grade metal alloy
Installation	Easy and quick
Applications	Solar panel installations
