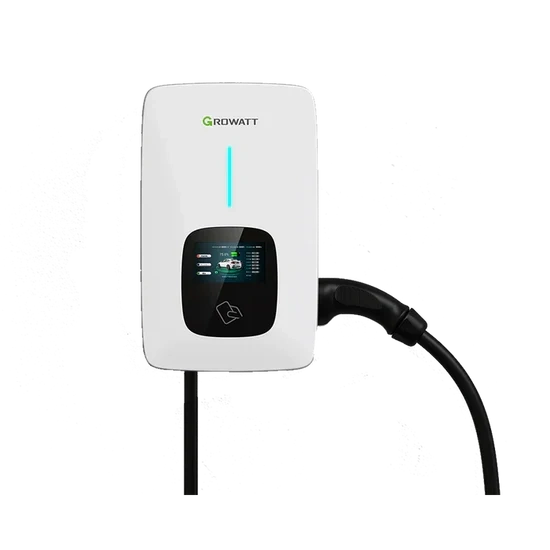

The Growatt THOR Level 2 AC EV Charger Series is designed to seamlessly integrate EV charging into residential Growatt solar and battery systems. Available in 9.6kW (40A) and 12kW (50A) power ratings, THOR allows homeowners to maximize self-consumption by utilizing surplus solar energy to power their electric vehicles. Featuring plug-and-play setup, RFID access control, smart scheduling, and full mobile app monitoring, this charger provides a versatile and cost-effective home charging solution.
Key Features & Benefits
- Solar-Integrated EV Charging: Communicates directly with Growatt inverters and smart meters to charge your EV using 100% renewable solar power when available.
- Flexible Operating Modes: Choose between Fast Charging for maximum speed, PV Linkage for solar prioritization, Off-Peak scheduling to minimize grid tariffs, and dynamic Load Balancing.
- Universal EV Compatibility: Fitted with a standard SAE J1772 Type 1 connector and a 23 ft (7m) heavy-duty cable, compatible with all major EV brands in North America.
- Multiple Activation Options: Easily start or stop charging sessions via the ShinePhone mobile app, RFID card swipe, or simple Plug & Play mode.
- Comprehensive Electrical Protection: Built-in DC residual current protection, over/under voltage, overload, short circuit, over-temperature, and lightning surge protection.
- Outdoor Rated: NEMA 4X / IP65 enclosure with forced air cooling handles extreme environments from -22°F to 122°F (-30°C to +50°C).
Technical Specifications
- Nominal Input/Output Voltage: 240V AC (Split-Phase 50/60Hz)
- Charging Interface: SAE J1772 Type 1 (23 ft / 7m Cable Included)
- Enclosure Rating: NEMA 4X (IP65) Outdoor/Indoor
- Connectivity: WiFi / Ethernet / (Optional WiFi+4G)
- Operating Temperature: -22°F to +122°F (-30°C to +50°C)
- Dimensions (W × H × D): 9.68 × 15.0 × 6.06 in (246 × 382 × 154 mm)
- Weight: < 20.9 lbs (< 9.5 kg)
- Safety Certifications: UL 2594, CSA-C22.2, UL 2231-1, UL 2231-2, UL 1998, FCC Part 15
- Warranty: 3 Years
