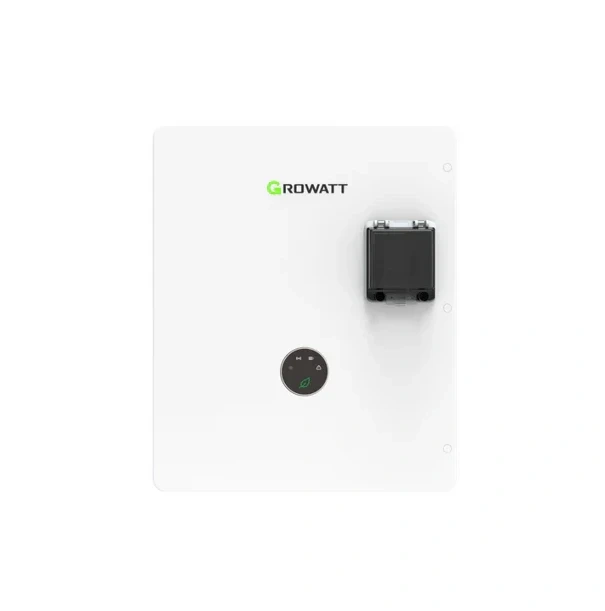

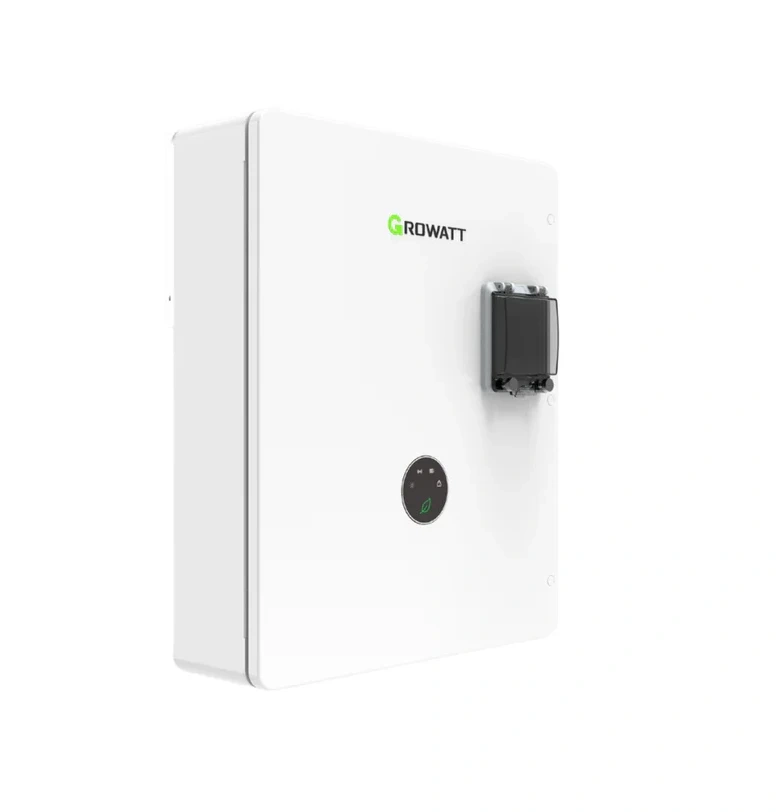

Growatt SYN 200-XH-US Automatic Transfer Switch Backup Box

Name: Growatt SYN 200-XH-US Automatic Transfer Switch Backup Box
Brand: Solarinfi
SKU: SYN 200-XH-US-11A
Price: 1399.99 USD
Availability: InStock

No.SYN 200-XH-US-11A

0.0 (0)

$1,399.99 ~~$1,662.00~~

Integrated 200A Grid Breaker — Built-in 200A main service entrance breaker eliminates the need for external disconnect switches.
120/240V Split-Phase Transformer — Integrated split-phase transformer supporting seamless whole-home backup power transition.
Smart Generator Auto-Start (13A Model) — Integrated 2-wire start dry contact interface for automatic generator backup integration.
NEMA 4X Outdoor Protection — Weatherproof enclosure designed for harsh indoor and outdoor installations with silent cooling.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Why Choose Growatt SYN 200-XH-US?

Seamless Backup Transition: Automatically switches your essential loads from grid power to battery/solar backup in less than 500ms during an outage.
Service Entrance Rated: Service-rated design simplifies installation directly between your utility meter and main distribution panel.
Flexible Generator Support (13A Model): Easily connect a standby generator to provide unlimited backup power during extended winter grid failures.
UL1741 & NEMA 4X Certified: Built to meet strict North American electrical safety and code requirements.

Overview

The Growatt SYN 200-XH-US is an intelligent automatic transfer switch (ATS) engineered for Growatt MIN-XH hybrid inverter systems. Featuring an integrated 200A main breaker, split-phase auto-transformer, and optional generator interface, it manages whole-home power switching effortlessly during grid blackouts.

Technical Specifications

Grid Input & Output: 200A Max Overcurrent Protection | 160A Max Continuous Input | 120/240Vac Split-Phase | 60Hz
Switchover Speed: < 500ms Disconnection Switchover Time
Backup Power Output: 48A Max Inverter Backup Current | 3,000W Imbalance Compensation
Generator Input (13A Only): 24,000W Max Rated Power | 100A Max Current | 2-Wire Auto Start Dry Contact
Enclosure & Environment: NEMA Type 4X / IP65 Outdoor Rating | -40°C to +50°C (-40°F to 122°F) | Wall Mountable
Dimensions & Weight: 445 x 550 x 160 mm (17.5 x 21.6 x 6.3 in) | 26.7 kg (58.8 lbs)
Safety Certifications: UL1741, CSA 22.2 NO. 107, UL869A, FCC Part 15 Class B
