Product Overview

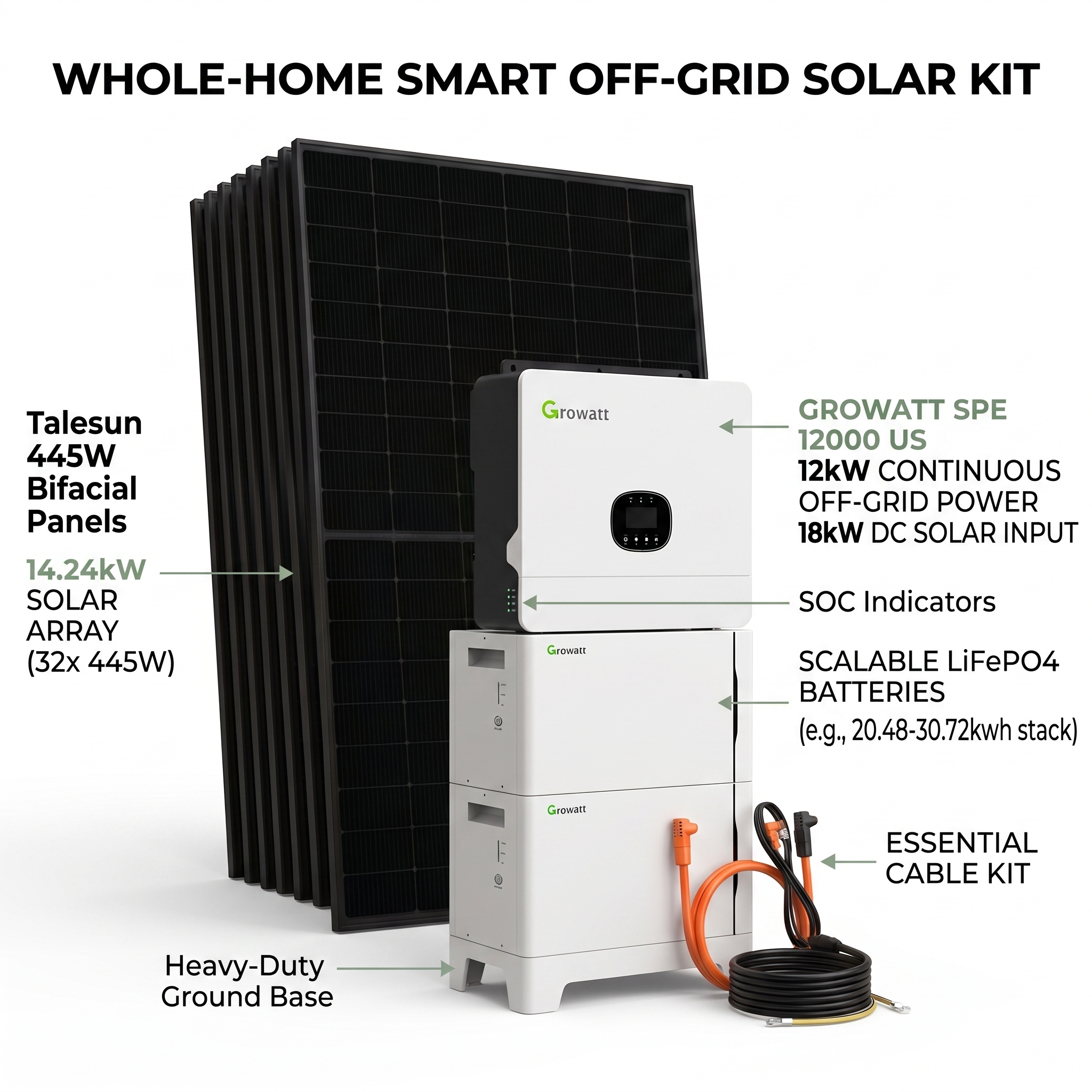

The COMPLETE GROWATT SPE 12000 HEAVY-DUTY DIY OFF-GRID SOLAR KIT (120V/240V) is engineered for large off-grid homes, commercial workshops, agricultural facilities, and off-grid estates requiring total power independence. Delivering 12kW of continuous 120V/240V split-phase power, this ultimate off-grid package combines robust power conversion, modular cobalt-free LiFePO4 lithium storage (ALP 5.0L-E2 US), ground mounting accessories, and an expansive 14.24kW bifacial TOPCon solar array.
Key Performance Highlights
- Full 12kW Continuous Power: Transformerless SPE 12000 US inverter providing 12,000W continuous 120V/240Vac split-phase output. Capable of running AC units, heavy 240V well pumps, and workshop machinery simultaneously.
- Massive 18,000W PV Input Capacity: Dual independent MPPT controllers supporting up to 18,000W of total DC solar input (9,000W per MPPT) with a maximum PV input voltage of 550Vdc.
- High-Capacity ALP LiFePO4 Storage: IP66/NEMA Type 4X rated cobalt-free LiFePO4 modules (5.12kWh / 51.2V / 100Ah per module) with a 10-year warranty. Includes heavy-duty floor base stand and primary power interconnect cables.
- 14.24kW Bifacial TOPCon Array: 32x Talesun 445W dual-glass N-Type TOPCon panels delivering up to 20% additional power generation gain from the rear side.
- 70A Generator & Grid Passthrough: Integrated 70A passthrough with automated generator auto-start support for fail-safe emergency backup charging.
Battery Storage Sizing Guide
- 20.48kWh (4x ALP 5.0L-E2 Modules): Entry threshold required to release maximum continuous discharge output for 12kW power loads.
- 25.60kWh (5x ALP 5.0L-E2 Modules) ⭐ RECOMMENDED: Perfect balance for whole-home overnight backup running multiple 240V heavy loads.
- 30.72kWh (6x ALP 5.0L-E2 Modules): Ultimate off-grid energy storage for extended multi-day resilience and heavy daily power demands.
Package Contents
| Component |
Description |
Qty |
| Off-Grid Inverter |
Growatt SPE 12000 US (12kW, 120/240Vac Split-Phase) |
1 Unit |
| Battery Storage |
Growatt ALP 5.0L-E2 US LiFePO4 Module (5.12kWh, 51.2V, 100Ah) |
4, 5, or 6 Modules |
| Battery Base |
Growatt ALP Heavy-Duty Floor Installation Base |
1 Unit |
| System Cables |
Main Inverter Cable Set & Battery Interconnect Hardware |
1 Full Set |
| Solar Panels |
Talesun 445W N-Type TOPCon Bifacial Dual-Glass Panels |
32 Panels (14.24kW) |
Additional Installation Items (Not Included)
To accommodate different site layouts and surface types, standard installation hardware is sourced separately based on your specific setup:
- PV Extension Cables: Solar-rated 10AWG wiring to span the distance from your solar array to the inverter.
- Mounting Racks: Roof racking or ground mounts chosen specifically for your installation surface.
- AC/DC Breakers & Switches: Standard circuit breakers, disconnects, and conduit required for your site.
Notice: All installations must comply with local and national electrical codes. Please consult a qualified electrician or solar installer to determine proper wire sizing, fusing, and safety equipment for your specific location.
