Product Description
Optimized Residential Energy Solutions for Modern Homes
Designed specifically for homeowners seeking smarter energy control, this product serves as a versatile residential energy storage inverter and hybrid storage inverter. It supports seamless integration with popular battery options, enabling homeowners to maximize solar energy use and self-consumption. Whether installing a new system or upgrading an existing one, this inverter adapts to varied solar array configurations and supports backup power features to maintain essential loads during outages. This model caters to users valuing energy independence and sustainable living with reliable, long-term support.
Advanced Electrical Features and High Efficiency
The inverter incorporates four Maximum Power Point Trackers to enhance solar panel output on complex roofs, optimizing energy capture even under shading or partial exposure. It maintains peak efficiency of up to 98.5%, ensuring minimal energy loss during conversion. Designed to meet critical grid compliance standards such as UL1741SA/SB and CA Rule 21, it offers multiple operating modes including zero export and off-grid backup. Its robust technical specifications encompass a 22.8 kW max PV rating and built-in surge and fault protections, reflecting high reliability as a solar storage inverter.
Applicability Across Residential Power and Storage Systems
This hybrid storage inverter integrates smoothly within residential solar installations focused on reducing grid dependency and enhancing energy management flexibility. It supports advanced time-of-use energy management schemes and aligns with demand response programs. Well-suited for households requiring seamless backup power and scalable energy storage capacity, it provides measurable benefits in energy cost savings and environmental impact. Installation flexibility and compliance with US grid regulations underscore its practical value to residential system integrators and end-users alike.

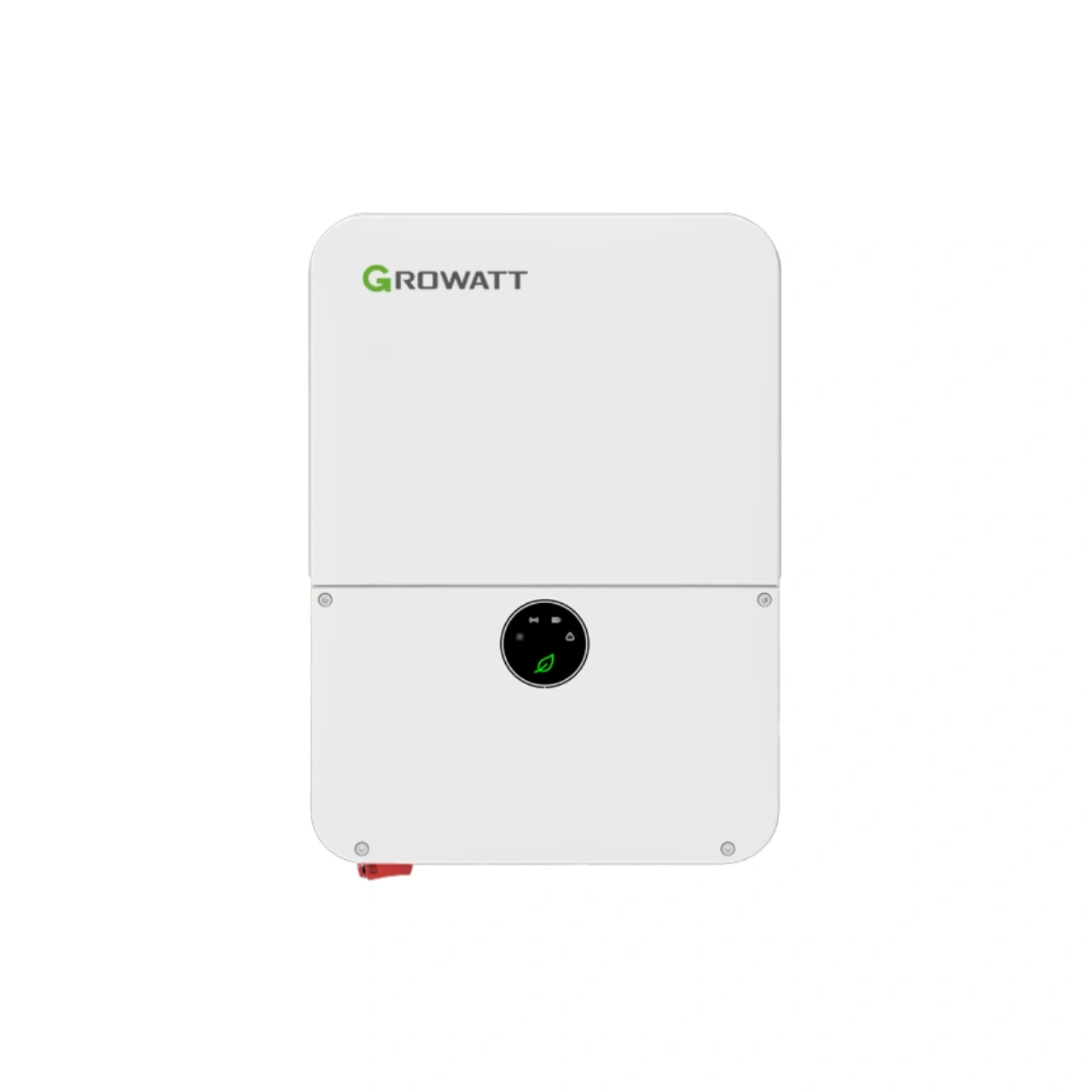

The Growatt MIN 11400TL-XH-US is a high-efficiency, single-phase grid-tied inverter designed to be storage-ready for residential solar applications. Whether you are setting up a new PV system or upgrading an existing installation with energy storage, this inverter provides seamless integration for DC-coupled and AC-coupled battery systems.
Key Features:
-
Battery-Ready Architecture: Compatible with Growatt APX, ARO high-voltage battery systems, and LG batteries for versatile energy storage.
-
4 MPP Trackers: Multi-MPPT design allows optimal panel layout on complex roof designs, featuring 13.5A max input current per tracker.
-
High Performance: Exceptional peak efficiency of up to 98.5% and CEC efficiency of 97.5% at 240V AC.
-
Advanced Safety: Integrated DC Switch, Type II DC Surge Protection, Type III AC Surge Protection, Ground Fault Monitoring, and AFCI Protection.
-
Multiple Operating Modes: Supports Self-consumption, Zero Export, Time-of-Use (TOU), and Off-grid backup operations.
-
Grid Compliance: Conforms to UL STD 1741, 1741SA, 1741SB, IEEE 1547, CA Rule 21, and HECO requirements.
Technical Specifications:
-
Max. Recommended PV Power (STC): 22,800W
-
Max. DC System Voltage: 600V
-
Startup Voltage: 80V
-
Full Load MPPT Voltage Range: 220V–500V
-
No. of MPPTs / Strings per MPPT: 4 / 2
-
Max. Input Current per MPPT: 13.5A
-
Max. Short-Circuit Current per MPPT: 16.9A
-
AC Nominal Output Power: 11,400W @ 240V AC / 9,880W @ 208V AC
-
Max. Continuous Output Current: 48A @ 240V
-
Max. Output Overcurrent Protection: 63A
-
Backup Power Output (EPS): 11,400W Nominal / 15,800VA Peak
-
Dimensions (W x H x D): 15.8 x 25.2 x 7.4 inches (400 x 638 x 187 mm)
-
Weight: 45.2 lbs (20.5 kg)
-
Enclosure Protection: NEMA 4X (IP65)
-
Standard Warranty: 10 Years
FAQ
Is the Growatt MIN 11400TL-XH-US compatible with different battery brands?
Yes, our hybrid storage inverter supports multiple battery systems, including Growatt APX, ARO, and LG high-voltage batteries. This flexibility allows you to expand or customize your energy storage setup with trusted battery options.
What installation requirements does the Growatt MIN 11400TL-XH-US have?
Our residential energy storage inverter features a NEMA 4X (IP65) enclosure, suitable for outdoor installation. Proper mounting and wiring must comply with local electrical codes and grid standards such as UL1741 and CA Rule 21 for safety and performance.
How does this storage inverter enhance backup power during outages?
We designed the Growatt MIN 11400TL-XH-US with an off-grid backup mode that provides up to 11.4 kW nominal output, ensuring continuous power during outages. This capability increases your home’s energy resilience with reliable solar and battery integration.
Can the Growatt MIN 11400TL-XH-US be used to optimize complex solar panel layouts?
Yes, it has four independent MPPTs, allowing optimal configuration for varying roof angles or shading. This feature makes our solar storage inverter ideal for maximizing energy harvest from complex residential solar array designs.
