Home > All Products > Solar Batteries > Growatt ALP 5.0L-E2 US 5.12kWh 48V LiFePO4 Lithium Battery Module

1/1

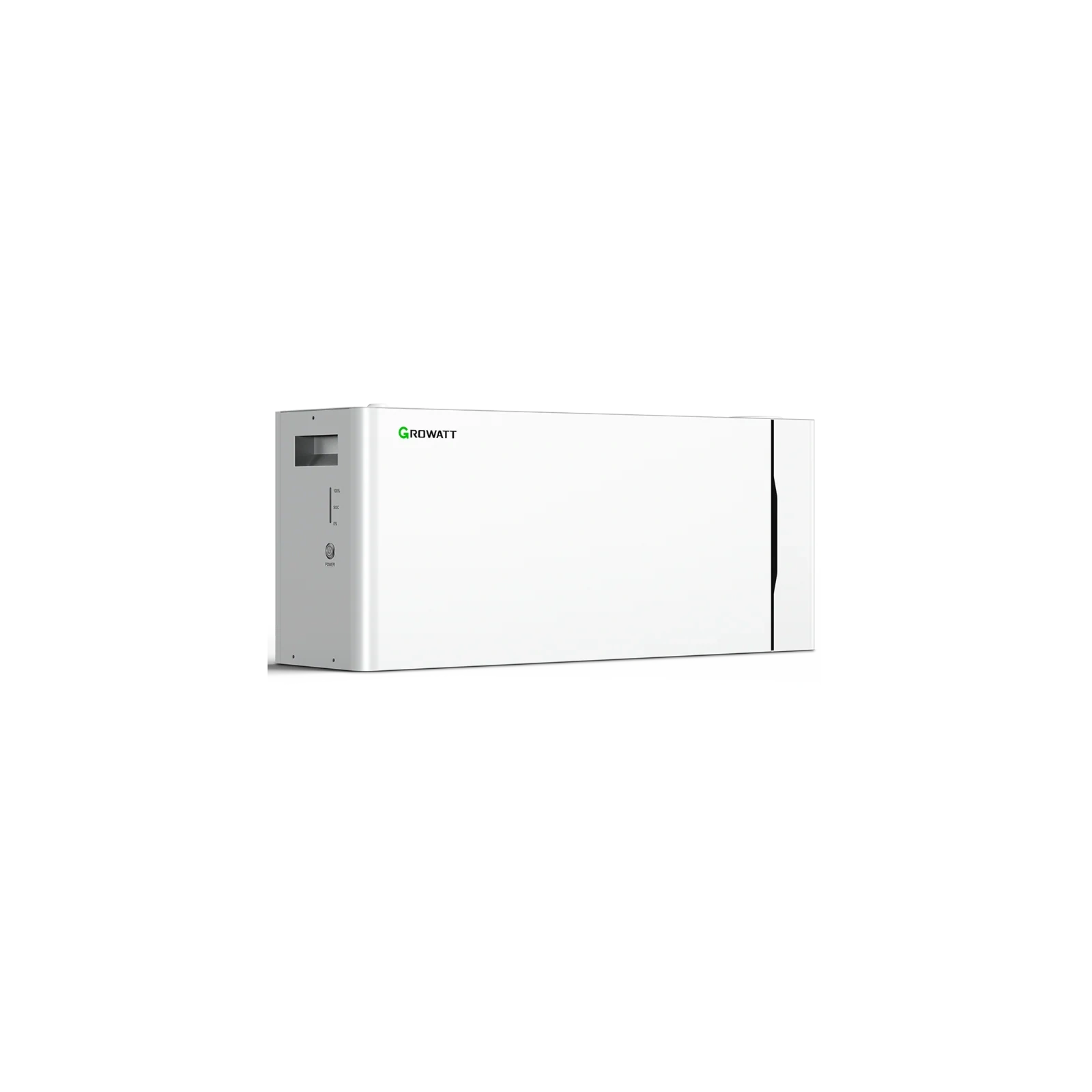

Growatt ALP 5.0L-E2 US 5.12kWh 48V LiFePO4 Lithium Battery Module

Name: Growatt ALP 5.0L-E2 US 5.12kWh 48V LiFePO4 Lithium Battery Module
Brand: Solarinfi
SKU: ALP-5.0L-E2-US
Price: 1521.31 USD
Availability: InStock

No.ALP-5.0L-E2-US

0.0 (0)

$1,521.31 ~~$1,672.72~~

5.12kWh Capacity & 90% DoD: Safe Cobalt-Free LiFePO4 chemistry delivering 4.6kWh usable energy per module.
Flexible Modular Scalability: Stackable design expandable from 5.12kWh up to 320kWh (supports up to 8 modules per stack and 8 parallel clusters).
IP66 / NEMA 4X Protection: Rugged weatherproof enclosure engineered for both indoor and outdoor wall-mount or floor-mount installation.
UL1973 & UL9540A Certified: Premium safety standard backed by a 10-year warranty and smart CAN BMS monitoring.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Why Choose Growatt ALP 5.0L-E2 US?

Safe LiFePO4 Chemistry: Premium Cobalt-free Lithium Iron Phosphate cells offer maximum thermal stability and 94% round-trip efficiency (DC-DC RTE).
Outdoor-Ready IP66 Rating: NEMA Type 4X / IP66 enclosure protects the battery against dust, rain, and harsh weather conditions.

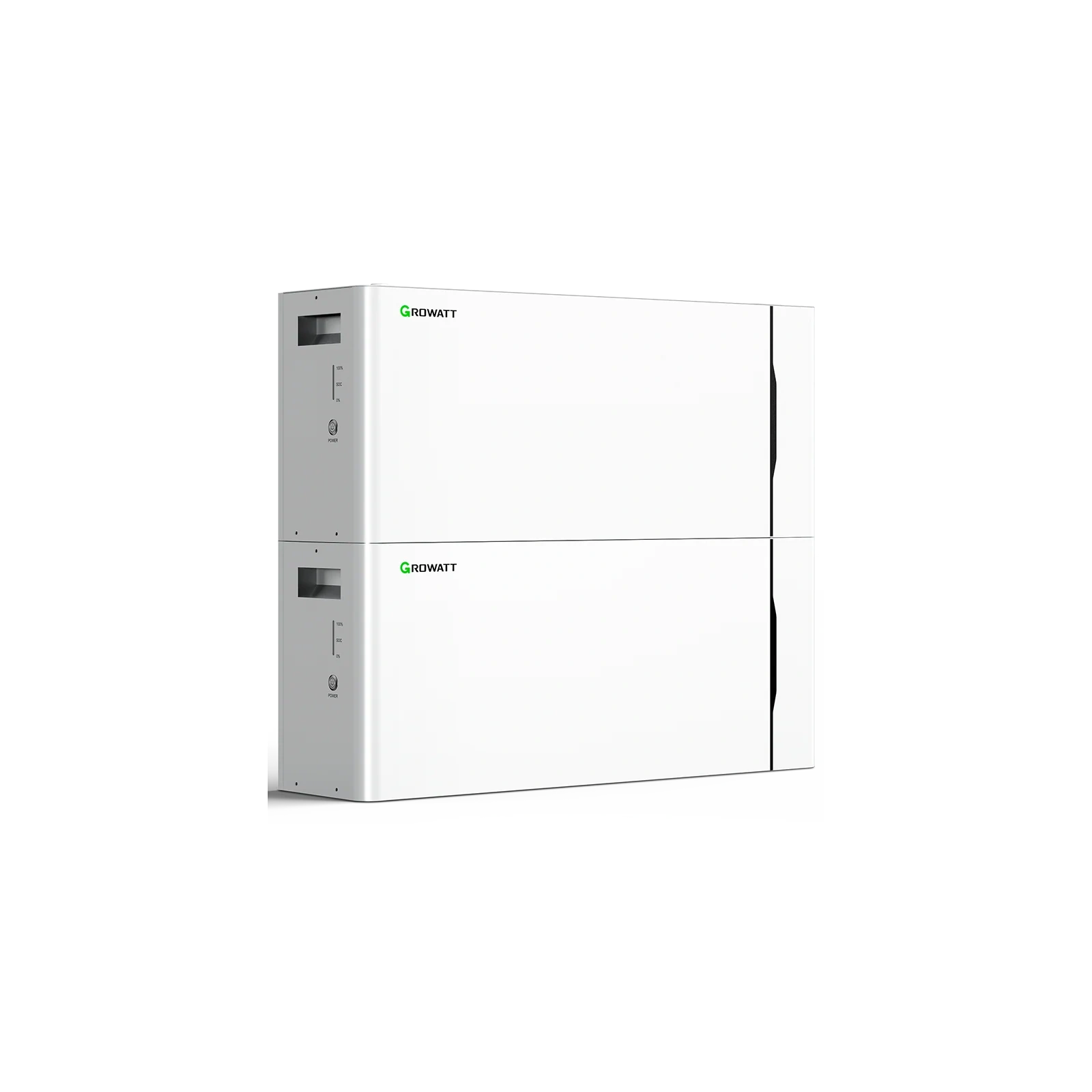

Seamless Capacity Expansion: Stackable modular architecture allows easy capacity upgrades as your energy needs grow.
10-Year Warranty & UL Certified: Rigorously tested and certified under UL1973, UL9540A, UN38.3, and FCC standards.

Overview

The Growatt ALP 5.0L-E2 US is a high-performance 5.12kWh 48V (51.2V nominal) modular LiFePO4 battery module built for residential and commercial solar energy storage systems. Featuring a stackable modular architecture, IP66 outdoor protection, and CAN bus BMS integration, it delivers reliable, safe, and long-lasting power backup for off-grid and hybrid installations.

Technical Specifications

Module Energy: 5.12kWh Nominal Capacity | 4.6kWh Usable Energy (90% DoD) | 100Ah | 51.2V Nominal Voltage
Charge/Discharge Performance: 60A Standard & Max Current | 3kW Continuous Power per Module
Operating Conditions: Voltage Range: 46.4V–57.6Vdc | Operating Temperature: -10°C to 50°C (14°F to 122°F)
Enclosure & Mounting: IP66 / NEMA Type 4X Rating | Wall-Mounted or Floor-Mounted (Floor Base sold separately)
Dimensions & Weight: 710 x 185 x 295 mm (28.0 x 7.3 x 11.6 in) | Weight: 46 kg (101.4 lbs)
System & Safety: CAN Communication | Integrated Smart BMS | 10-Year Warranty | UL1973, UL9540A, UN38.3 & FCC Certified
