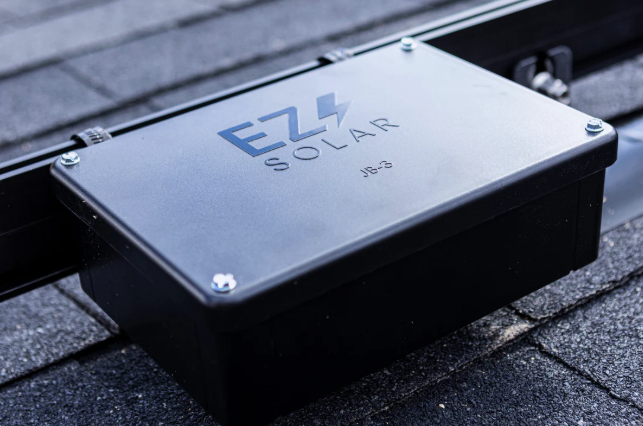

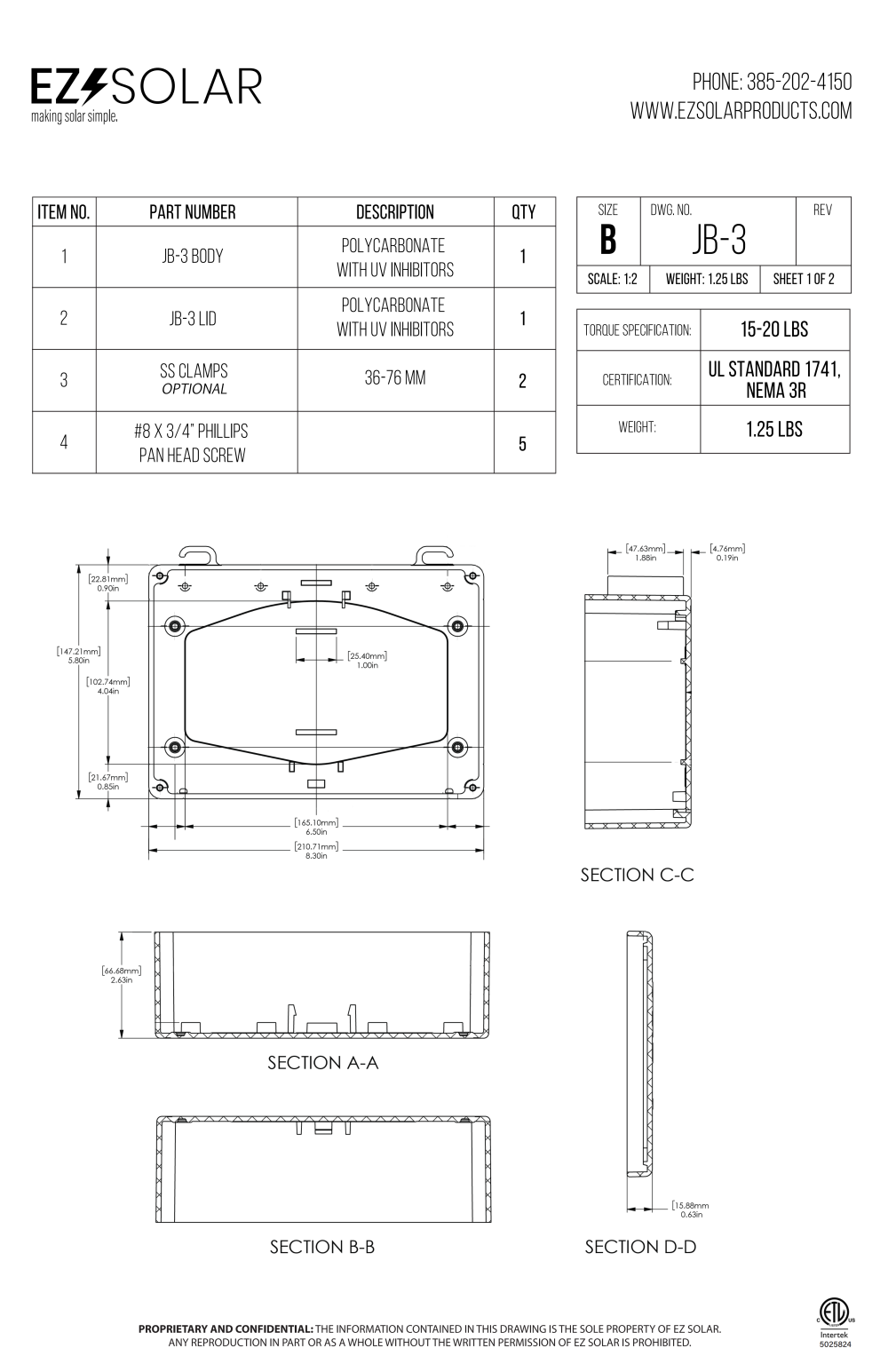

EZ Solar Rooftop PV Junction Box JB-3
No.JB-3
(0)
$42.79
1/1
| Spec | Value |
|---|---|
| Model | JB-3 |
| Material | Polycarbonate with UV inhibitors |
| Certification | UL Standard 1741 |
| Enclosure Rating | NEMA 3R |
| Weight | 1.25 lbs |
| Torque Specification | 15–20 lbs |
| Revision | Rev B |

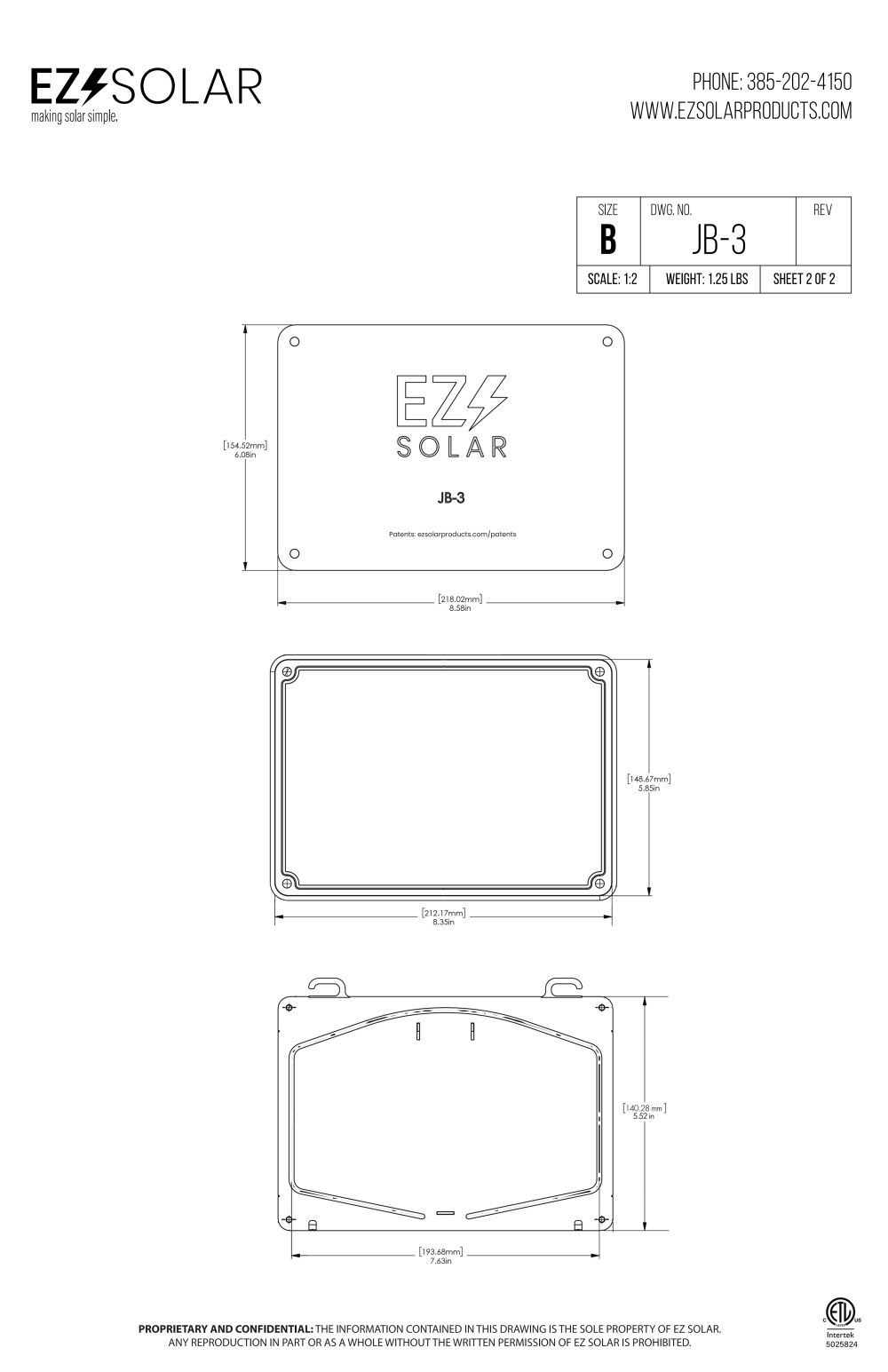

| Lid Width | 8.58 in (218.02 mm) |
| Lid Height | 6.08 in (154.52 mm) |
| Internal Opening Width | 8.36 in (212.17 mm) |
| Internal Opening Height | 5.85 in (148.67 mm) |
| Body Height | 5.52 in (140.28 mm) |
