Product Description
Advanced Residential Solar Solution for Reliable Energy Conversion

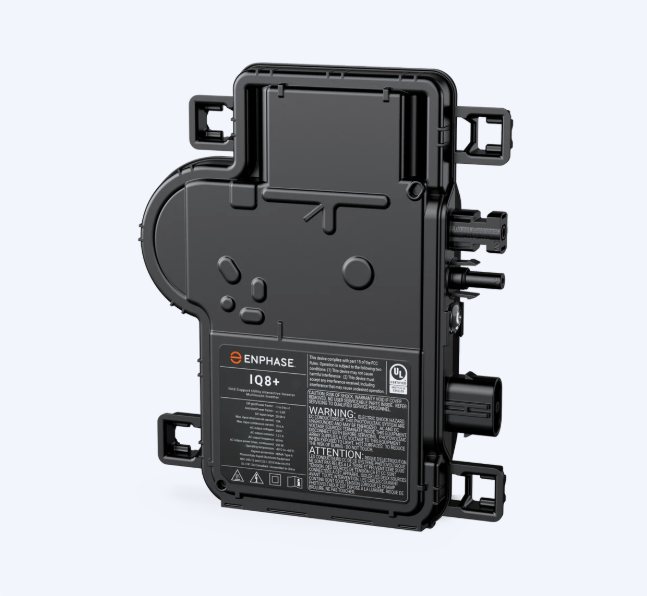

The enphase iq8 microinverter is tailored for homeowners seeking reliable, efficient solar power solutions. This device supports 72-cell or equivalent PV modules, optimizing energy output while ensuring high compatibility. Its ability to generate split-phase 240V AC power benefits residential electrical configurations that require stable, backup-ready power. Ideal for users who want a compact, easily installed microinverter for solar panels, it offers peace of mind with its robust design and comprehensive support for typical home solar panel setups.
Cutting-Edge Technical Features Driving High Efficiency
This enphase energy microinverter boasts a continuous AC output of 290VA, with a peak capacity of 300VA, supporting modules up to 450W. Featuring software-defined split-phase 240V AC power conversion, it delivers smooth, grid-compliant electricity with up to 97% CEC efficiency. Integrated power line communication enables seamless system monitoring and control. Safety and durability are ensured by UL 1741-SA and IEEE 1547:2018 certifications, while the 25-year limited warranty underlines its long-term reliability in converting DC to AC efficiently.
Versatile Applications in Modern Solar Energy Systems
As a grid tie microinverter, this product excels in both new installations and expansions, especially where advanced grid compliance such as CA Rule 21 is required. It supports seamless integration with high-powered solar arrays and enables microgrid-forming capabilities that provide backup power during outages. Quick installation is facilitated through plug-and-play Enphase connectors and IQ cable technology. Its reliable performance and industry certifications make it suitable for contractors and end users focusing on sustainable and uninterrupted solar energy solutions.
Key Highlights
- Microgrid-Forming Technology: Industry-first software-defined microinverter with split-phase power conversion, built to produce power even when the grid goes down.
- Optimized for High-Power Modules: Pairs seamlessly with 235W–440W+ PV modules, delivering 290VA continuous AC power and 300VA peak output.
- Fast & Simple Installation: Lightweight and compact design featuring plug-and-play Enphase connectors and standard two-wire IQ Cable setup.
- Advanced Grid Compliance: Fully compliant with CA Rule 21 (UL 1741-SA), IEEE 1547:2018 (UL 1741-SB 3rd Ed.), and built-in PV rapid shutdown equipment (NEC 2014-2023).
- 25-Year Limited Warranty: Built with a double-insulated Class II corrosion-resistant polymeric enclosure and backed by Enphase's industry-leading 25-year warranty.
Shipping & SoCal Warehouse Pickup
• Free Local Pickup: Available at our warehouse in Anaheim, CA (Same-Day or Next-Day pickup available upon request).
• Fast US Shipping: Ships via ground or freight express directly to your installation site across the US.
| Specification |
Data |
| Model |
IQ8PLUS-72-M-US |
| Continuous AC Output Power |
300W |
| Nominal Output Voltage |
240VAC Split-Phase |
| Compatible Module Type |
72-Cell or Equivalent |
| Recommended Module Power |
Up to ~450W |
| MPPT Voltage Range |
38 – 45V |
| DC Input Voltage Range |
16 – 60V |
| Input Connector Type |
MC4 Compatible |
|
CEC Efficiency
|
97.0% |
| Communication |
Power Line Communication (PLC) |
| Enclosure Rating |
NEMA 6 (Outdoor Rated) |
| Dimensions (L × W × H) |
8.3 × 6.9 × 1.2 in |
| Weight |
~2.43 lbs |
| Certifications |
UL 1741-SA, IEEE 1547, NEC 690.12 |
| Warranty |
25-Year Limited Warranty |
FAQ
What type of solar panels work best with the Enphase IQ8+ Microinverter?
Our Enphase IQ8 microinverter is designed to pair with 72-cell or equivalent solar modules, supporting up to approximately 450W. This compatibility ensures efficient power conversion for most residential solar panels, allowing you to maximize energy output from your system.
Can I install the Enphase IQ8PLUS-72-M-US microinverter myself?
We provide plug-and-play installation with Enphase connectors and a simple two-wire IQ cable setup to make installing this microinverter for solar panels straightforward. However, we recommend consulting a licensed installer to ensure safety and code compliance.
Does this microinverter support backup power during outages?
Yes, our grid tie microinverter uses microgrid-forming technology to supply power during grid outages. This feature enhances home energy reliability by providing backup power to critical appliances when the main grid is down.
How quickly can I receive the Enphase IQ8+ Microinverter if I order from you?
We stock the IQ8PLUS-72-M-US model locally in Anaheim, California, enabling fast domestic shipping and free warehouse pickup. This local inventory helps reduce wait times and supports timely installation for your solar project.
