Product Overview

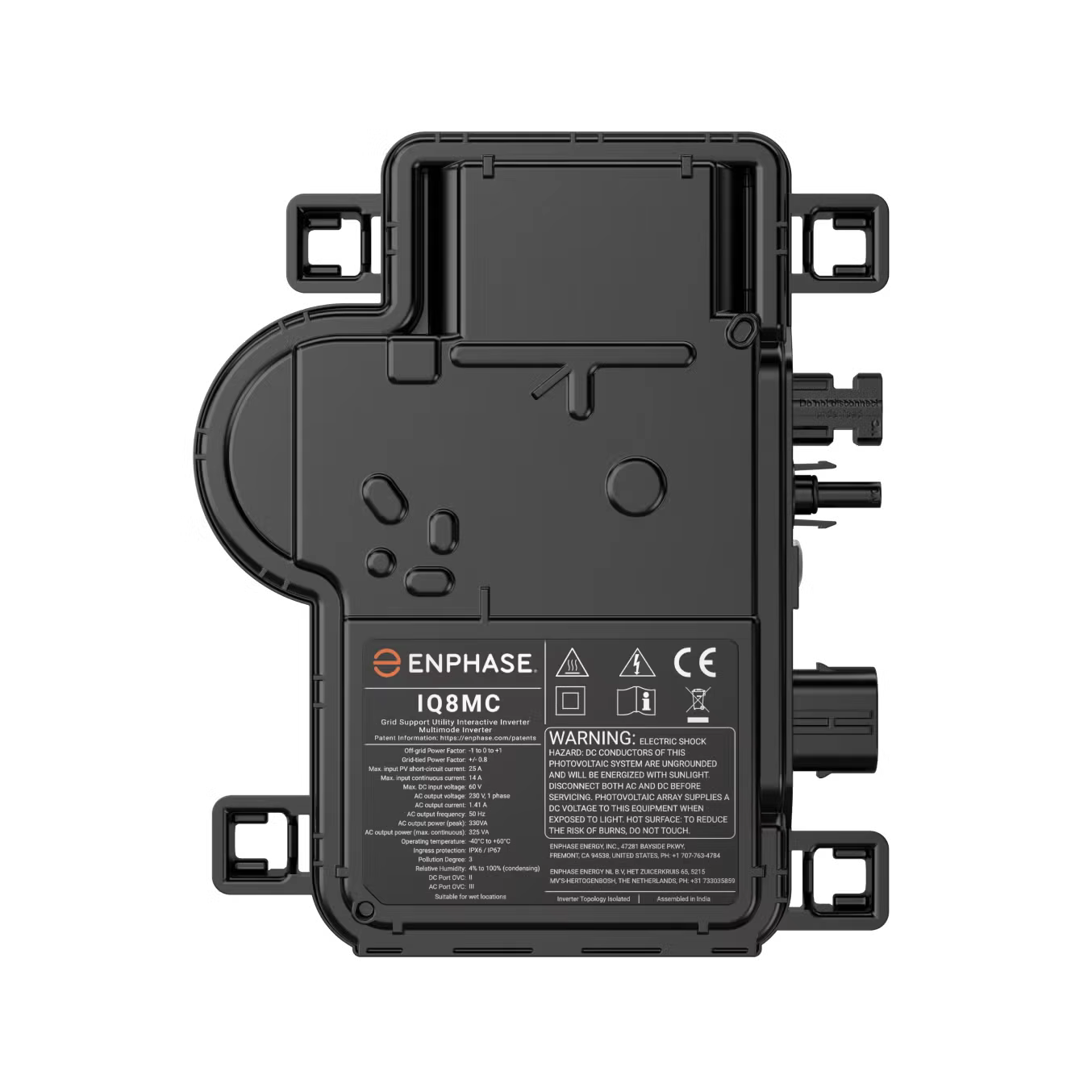

The Enphase IQ8MC Microinverter is a software-defined, microgrid-forming microinverter engineered to pair seamlessly with higher-power residential and commercial solar panels ranging from 260W to 460W+. Producing 330VA peak AC output power at 240VAC, the IQ8MC converts DC solar energy into clean AC power right at the panel level with split-phase conversion capability, eliminating single points of failure across your array.
Key Performance Highlights
- 330VA Peak Output Power: Delivers up to 320VA continuous output power @240VAC (315VA peak / 310VA continuous @208VAC) for maximum energy conversion from modern PV modules.
- Microgrid-Forming Capability: Advanced software-defined architecture capable of forming a microgrid during grid outages when paired with an Enphase IQ System Controller.
- Broad Panel Compatibility: Supports solar panels rated from 260W to 460W+, supporting maximum short-circuit current (Isc) up to 20A and MPPT voltage ranges of 25V–45V.
- Integrated Rapid Shutdown: UL Listed as PV rapid shutdown equipment conforming to NEC 2014, 2017, 2020, and 2023 section 690.12 requirements.
- Built for Longevity: Lightweight, compact design featuring Class II double-insulated NEMA Type 6 outdoor enclosure backed by an industry-leading 25-year limited warranty.
Technical Specifications
| Specification |
Details (@240 VAC) |
Details (@208 VAC) |
| Peak Output Power |
330 VA |
315 VA |
| Max Continuous Output Power |
320 VA |
310 VA |
| Common Module Pairings |
260 W – 460 W+ |
| CEC Weighted Efficiency |
97.0% |
96.5% |
| Max Units Per 20A Branch Circuit |
12 Units |
10 Units |
| Connectors & Enclosure |
Stäubli MC4 / NEMA Type 6 / Class II Double-Insulated |
| Warranty |
25-Year Limited Warranty |
