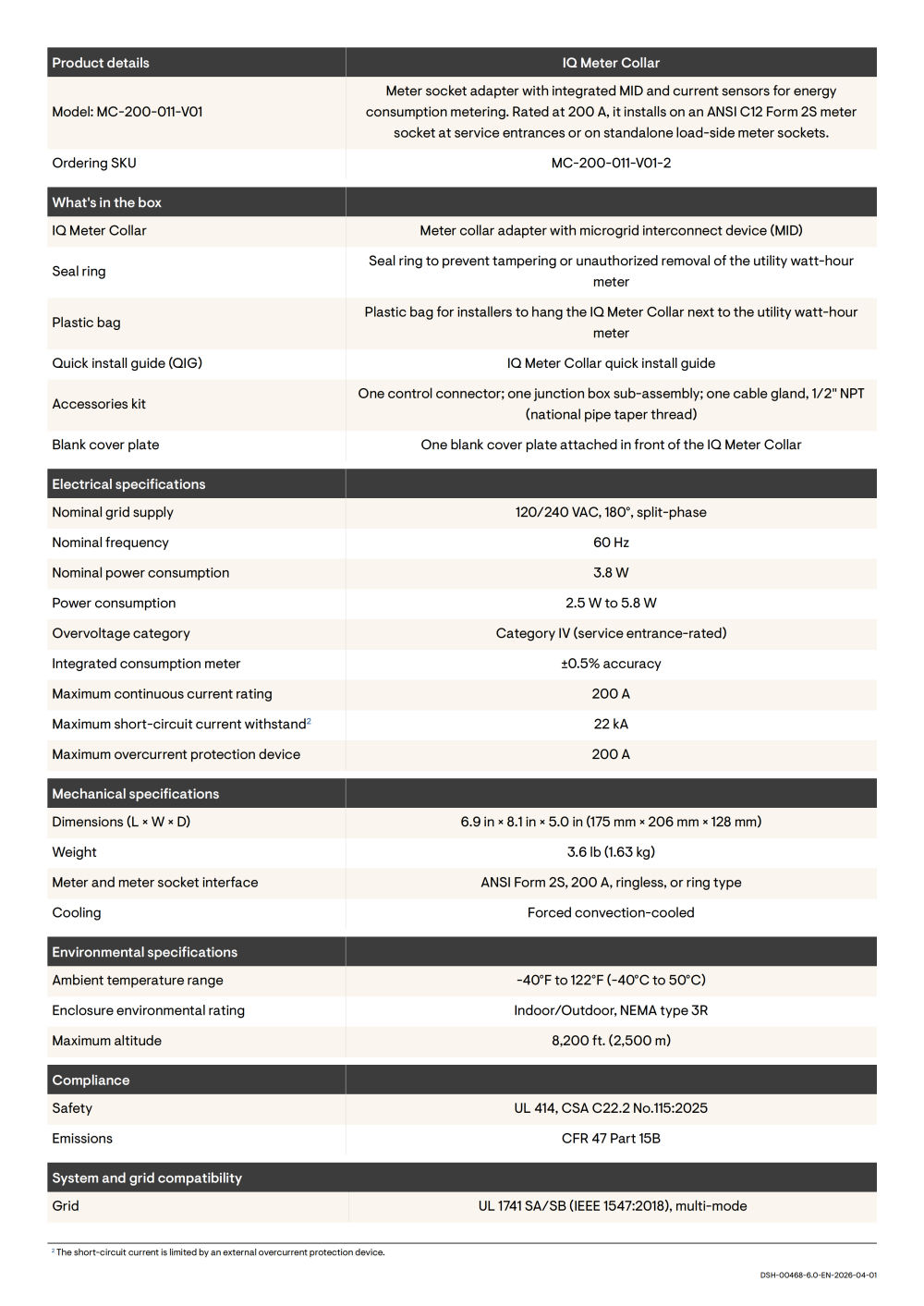

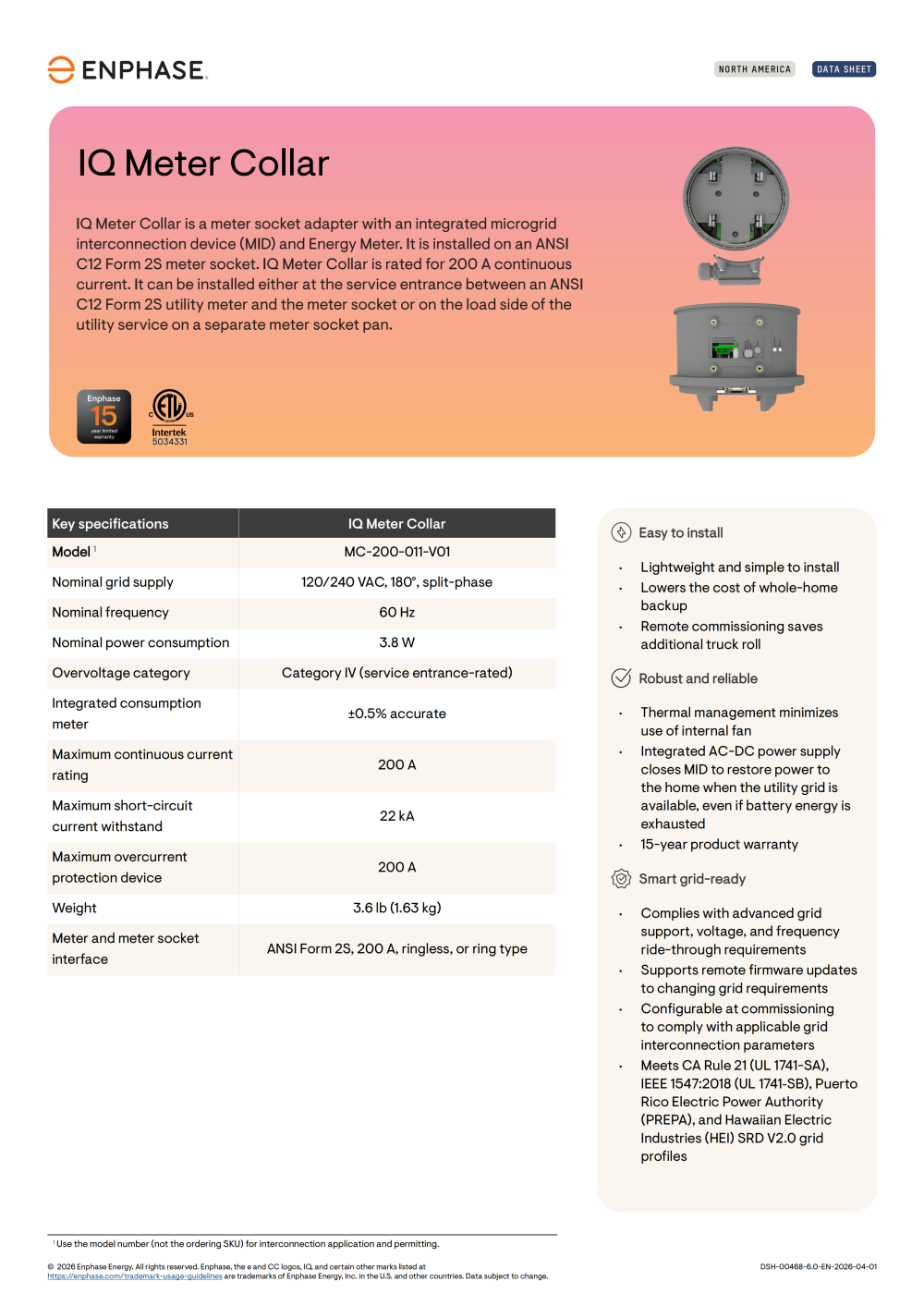

| Spec | Value |
|---|---|

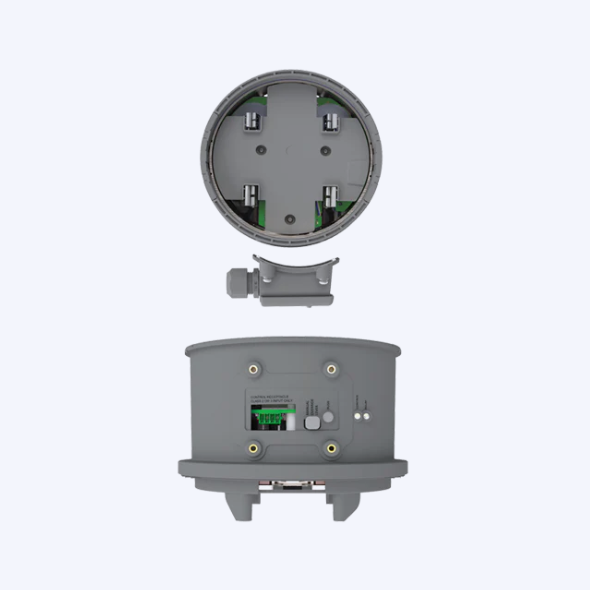

| Model | MC-200-011-V01 |
| Nominal Grid Supply | 120/240 VAC, split-phase |
| Nominal Frequency | 60 Hz |
| Maximum Continuous Current | 200 A |
| Short-Circuit Withstand | 22 kA |
| Overvoltage Category | Category IV (service entrance-rated) |
| Meter Accuracy | ±0.5% |
| Meter Socket Interface | ANSI Form 2S, 200 A, ringless or ring type |
| Cooling | Forced convection |
| Enclosure Rating | NEMA Type 3R (Indoor/Outdoor) |
| Ambient Temperature | -40°F to 122°F (-40°C to 50°C) |
| Maximum Altitude | 8,200 ft (2,500 m) |
| Weight | 5 lbs |
| Compliance | UL 414, UL 1741 SA/SB, IEEE 1547:2018 |

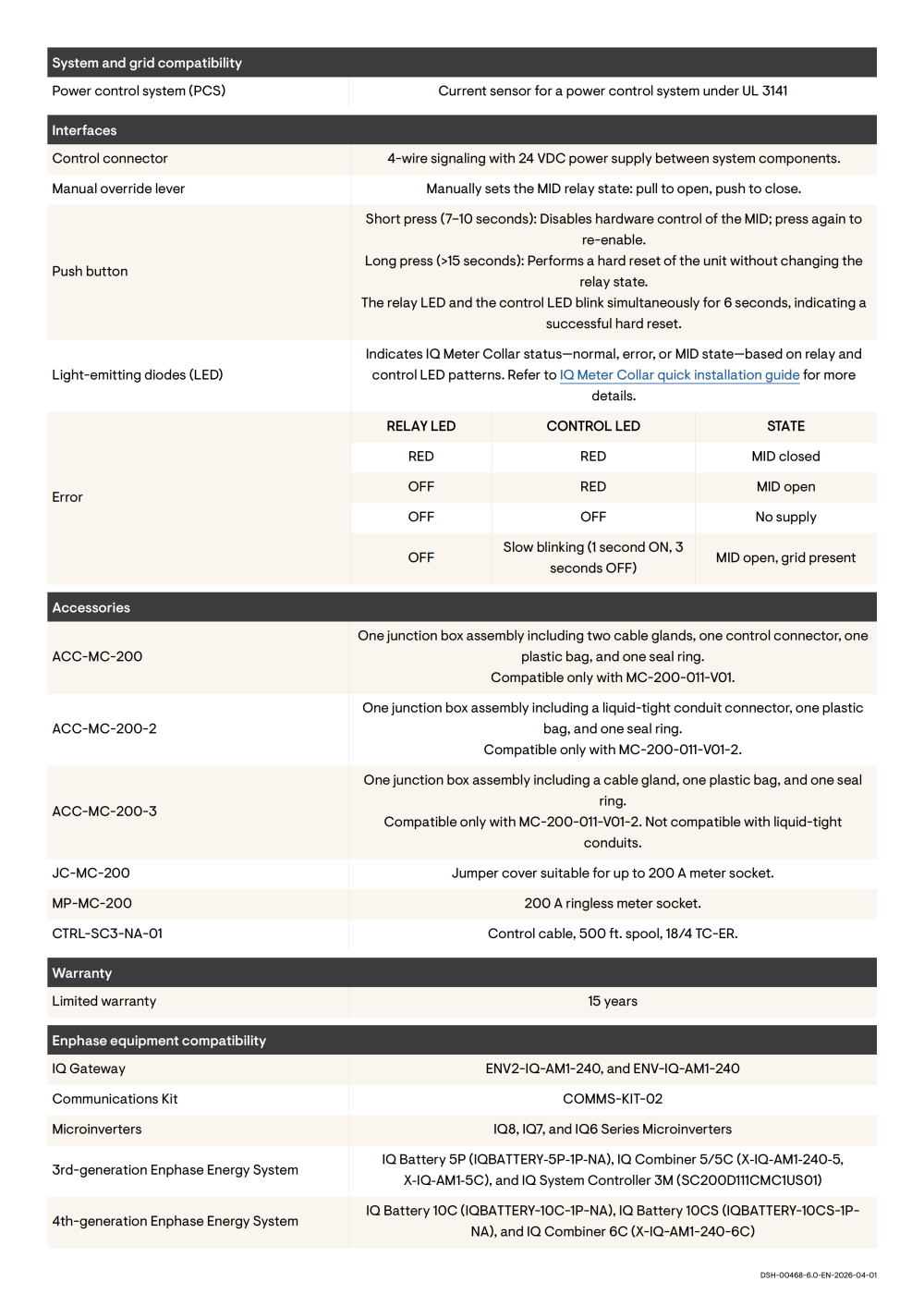

| Control Interface | 4-wire 24 VDC signaling, push-button, manual override lever |
| Warranty | 15 Years |
