| Specification | Data |
|---|---|

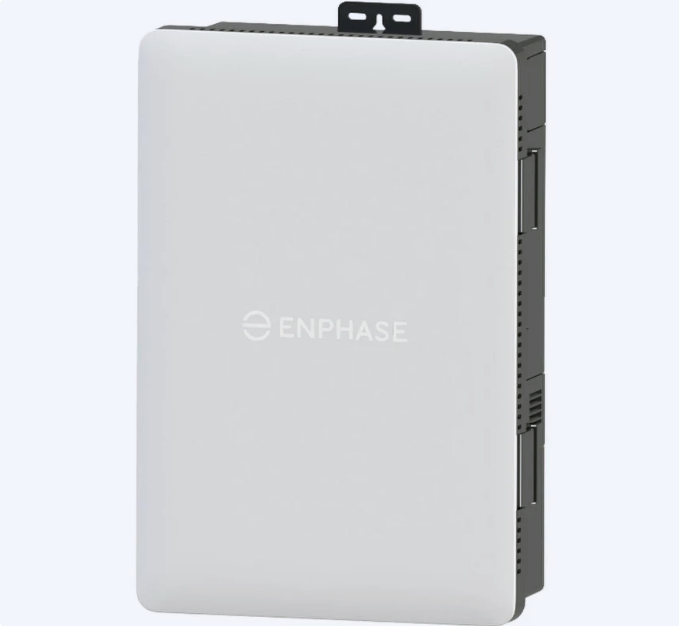

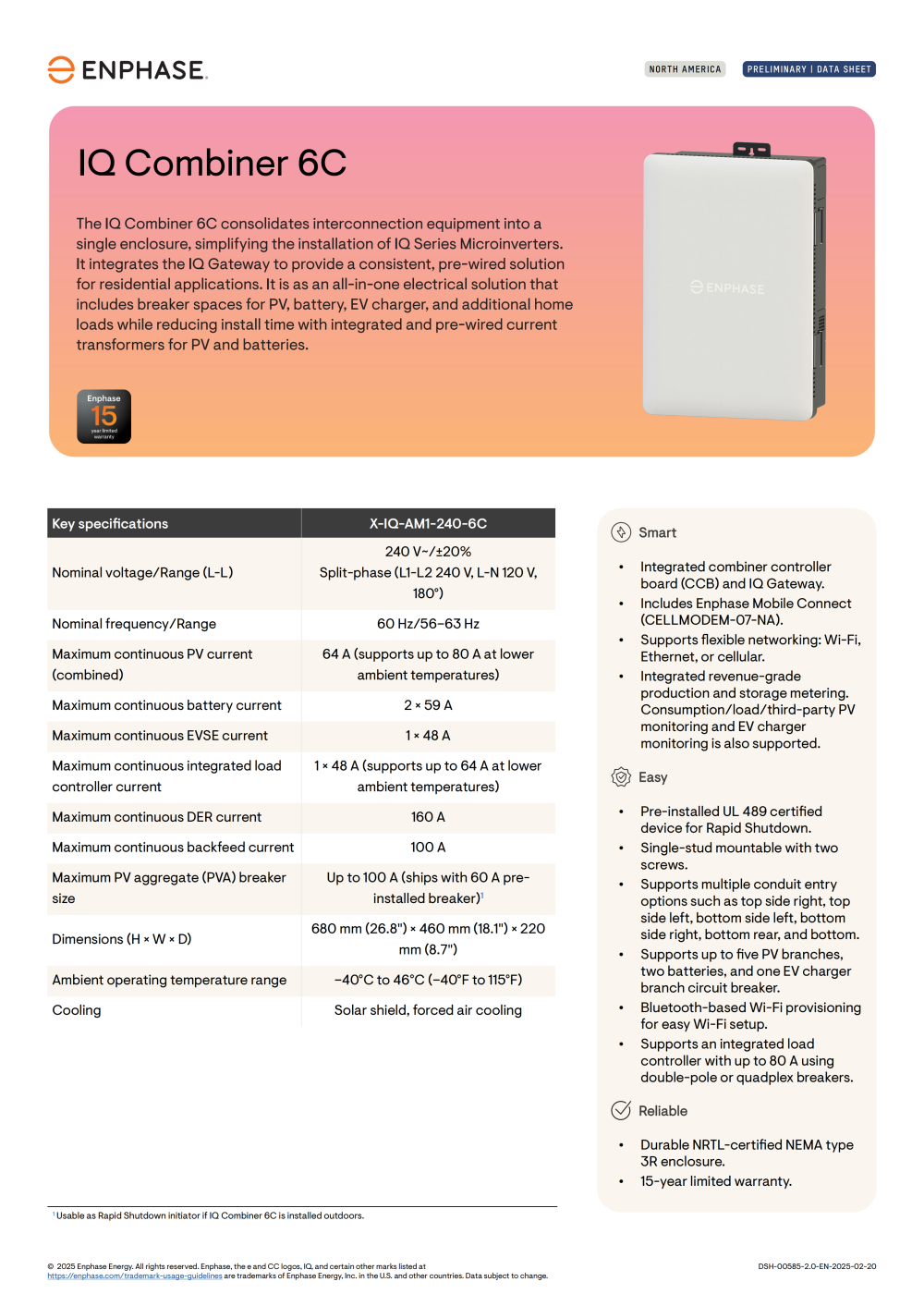

| Model | X-IQ-AM1-240-6C |

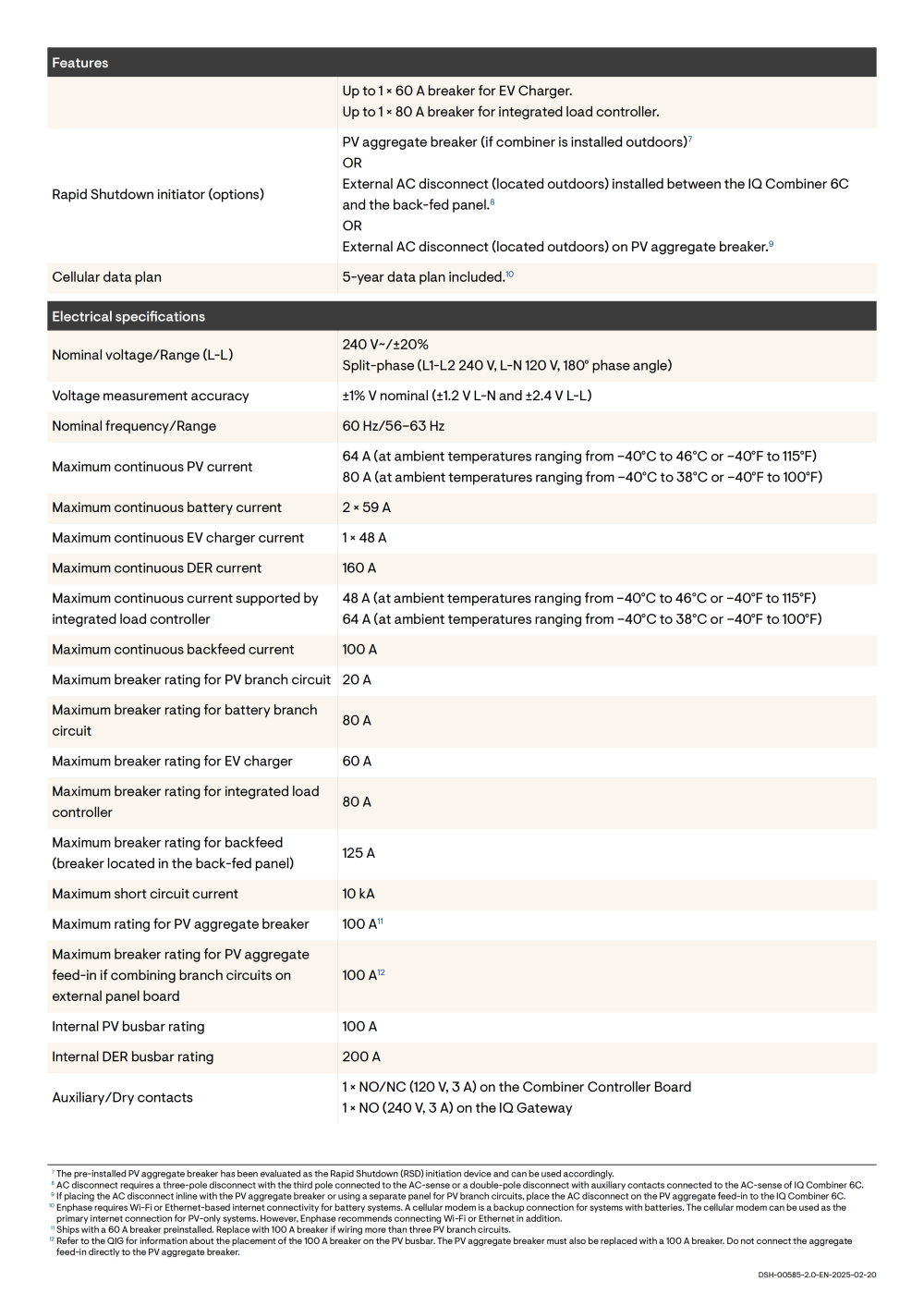

| Nominal Voltage | 240 V~ ±20% |
| Frequency Range | 60 Hz (56–63 Hz) |
| Max PV Current | 64 A (80 A at ≤100°F ambient) |
| Max Battery Current | 2 × 59 A |
| Max EV Charger Current | 1 × 48 A |
| Max DER Current | 160 A |
| Max Load Controller Current | 48 A (64 A at ≤100°F) |
| Max Backfeed Current | 100 A |
| Max Breaker Ratings | PV: 20 A, Battery: 80 A, EV: 60 A, Load Ctrl: 80 A |
| PV Aggregate Breaker | 60 A pre-installed (upgradeable to 100 A) |

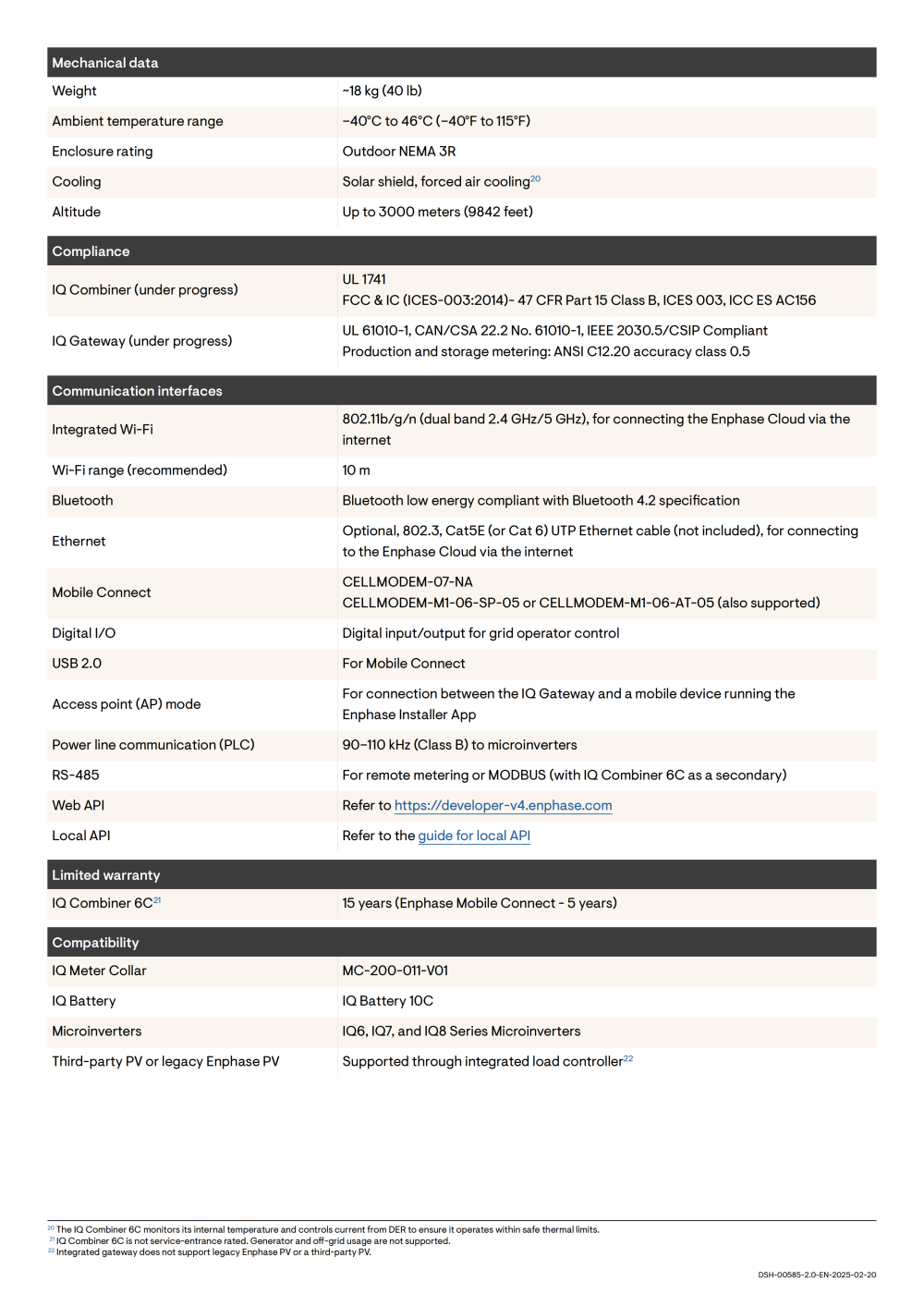

| Enclosure Rating | NEMA 3R (Outdoor) |
| Cooling | Forced air with solar shield |
| Dimensions (H × W × D) | 26.8 × 18.1 × 8.7 in |
| Weight | 40 lbs |
| Max Altitude | 9,842 ft (3,000 m) |
| Breaker Slots | 8 × double-pole (4 PV, 2 battery, 1 EV, 1 load) |
| Monitoring | Production, storage, load, and EV (via CTs) |
| Included Modem | CELLMODEM-07-NA (5-year plan) |
| Communication | Wi-Fi, Ethernet, Bluetooth, RS-485, USB, PLC |
| Compliance | UL 1741, FCC Part 15, ANSI C12.20, IEEE 2030.5 |
| Warranty | 15 Years (Combiner), 5 Years (Modem) |
