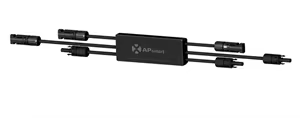

Name: APsystems RSD-D Dual PV Module Rapid Shutdown Device (446101)
Brand: Solarinfi
SKU: 446101
Price: 56.29 USD
Availability: InStock

No.446101

0.0 (0)

$56.29

Developed by the experts at APsystems, the APsmart RSD-D (446101) delivers reliable, module-level rapid shutdown protection for your solar array:

Broad System Compatibility: Works seamlessly with new or existing string and central inverters equipped with or paired with a SunSpec PLC transmitter.
Code Compliant: Fully meets U.S. NEC 2017 & 2020 (690.12) rapid shutdown safety requirements.
Cost-Saving Dual-Module Control: Connects to two PV modules, cutting hardware costs and installation time in half.
SunSpec PLC Technology: Transmits over existing DC wiring without extra signal lines; requires a SunSpec PLC Transmitter (e.g., APsmart 406001) or integrated inverter.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Cost-Effective Dual-Module Rapid Shutdown Protection for Solar PV Systems

The APsystems RSD-D (446101) is an advanced, high-efficiency rapid shutdown device (RSD) engineered to meet NEC 2017, 2020, and 2023 (690.12) requirements for module-level rapid shutdown. Designed to manage two PV modules simultaneously, the RSD-D significantly reduces hardware costs and installation labor compared to single-unit alternatives.

Powered by SunSpec-compliant Power Line Communication (PLC), the RSD-D seamlessly integrates with string inverters and certified transmitters, ensuring optimal rooftop safety for installers and emergency first responders.

Key Features & Benefits

Dual-Module Control: Connects directly to two separate PV modules, cutting the required number of shutdown hardware units in half and lowering overall system balance-of-system (BOS) costs.
SunSpec PLC Communication: Utilizes standard SunSpec Power Line Communication (PLC) over existing DC lines, eliminating the need for dedicated communication wiring or wireless setup.
NEC 690.12 Compliance: Accurately attenuates array voltage below safe limits within seconds of system shutdown, ensuring full compliance with national electrical safety codes.
Automatic Safety Shutdown: Automatically drops module output voltage when utility AC power is interrupted or when the PLC transmitter signal stops.
Rugged Weatherproof Build: Features an IP68 / NEMA 4X enclosure designed to withstand extreme rooftop weather, UV radiation, and severe temperature fluctuations.

Product Specifications

Manufacturer: APsystems
Part Number / SKU: 446101
Model: RSD-D
Module Capability: 2 PV Modules (Dual-Module Input)
Communication Type: SunSpec PLC (Power Line Communication)
Regulatory Compliance: NEC 2017/2020/2023 690.12, UL 1741, SunSpec Certified
Enclosure Rating: IP68 / NEMA 4X
Operating Temperature: -40°F to +185°F (-40°C to +85°C)
