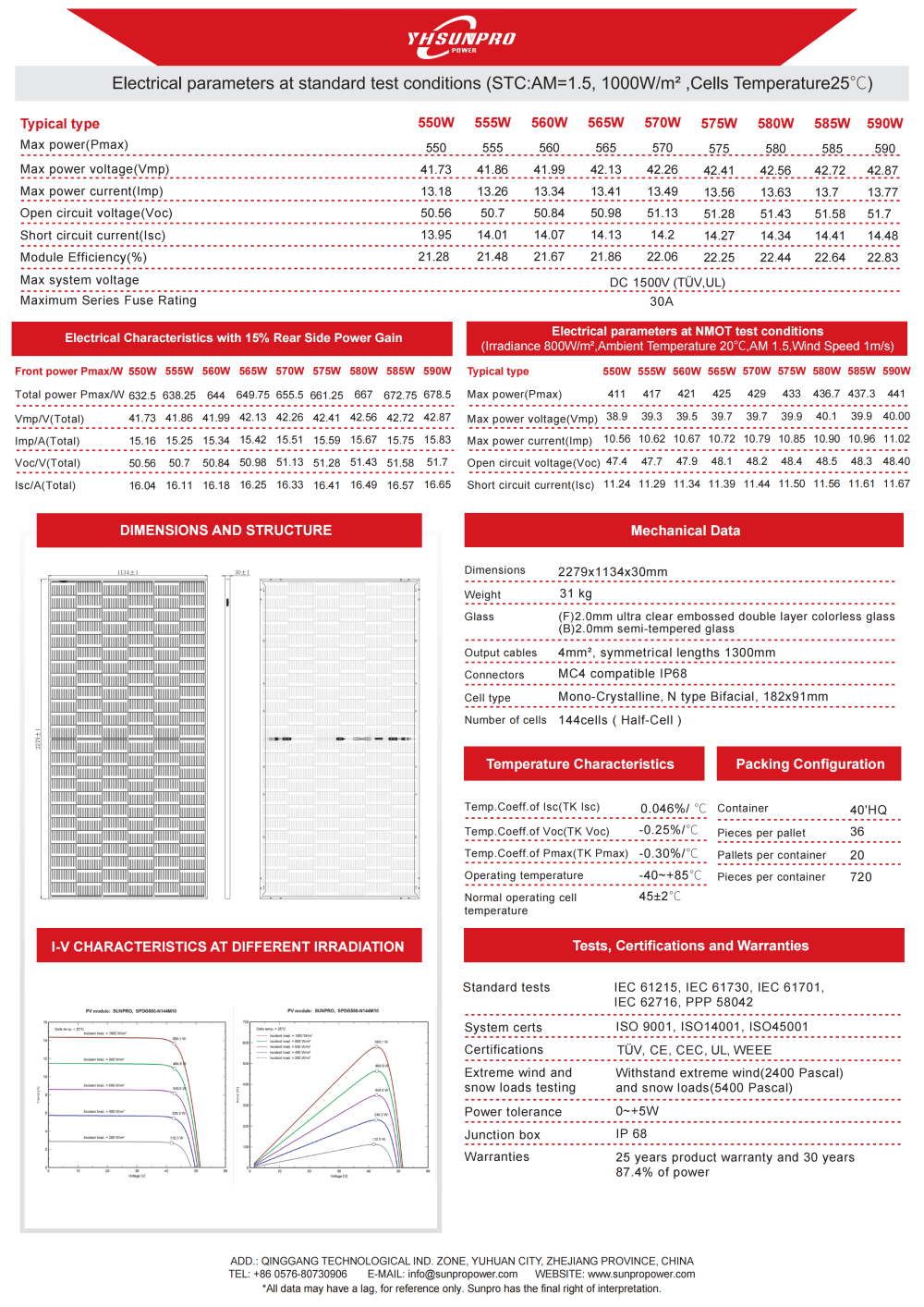

Testing Condition |
STC |
|
Maximum Power (Pmax/W) |
590 |
|
Max power voltage(Vmp) |
42.87 |
|
Max power current(Imp) |
13.77 |
|
Open-Circuit Voltage (Voc/V) |
51.70 |
|
Short-Circuit Current (Isc/A) |
14.48 |
|
Module Efficiency (%) |
22.83 |
| Specification | Details |
|---|---|

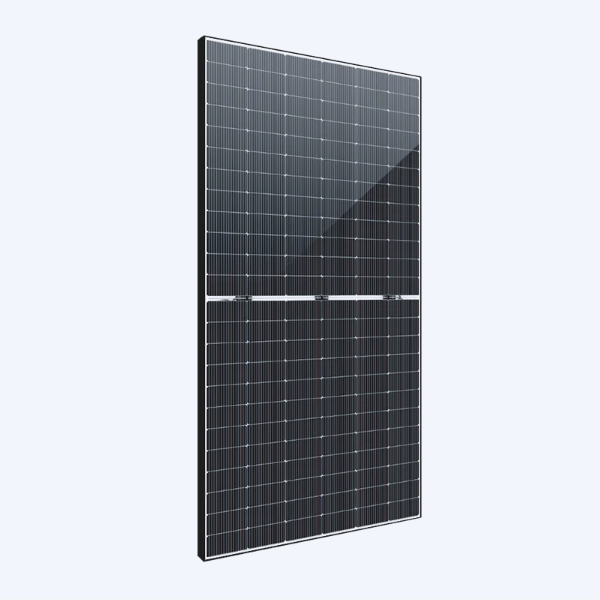

| Manufacturer | SUNPRO Power |
| Model | SPDG590-N144M10 |
| Rated Power (Pmax) | 590 W |
| Cell Type | N-Type Mono-Crystalline TOPCon, 144 cells (182×91 mm) |
| Module Efficiency | 23.02% |
| Module Size | 89.7 × 44.6 × 1.18 in |
| Weight | 68.3 lb |
| Front Glass | 2.0 mm tempered, anti-reflection coating |
| Back Glass | 2.0 mm heat-strengthened glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68, 3 bypass diodes |
| Output Wire | 4 mm², 1300 mm standard/customizable |
| Connector | Stäubli MC4 |
| Maximum System Voltage | 1500 VDC |
| Maximum Series Fuse | 30 A |
| Operating Temperature | -40°C to +85°C |
| Mechanical Load | +5400 Pa / -2400 Pa |
| Warranty | 15-year product / 30-year power warranty |
