| Specification | Value |

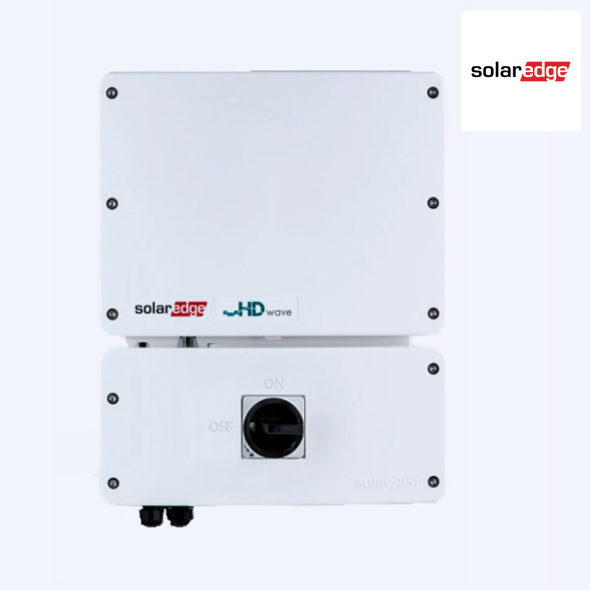

| Model No. (Applicable to inverters with part number - SEXXXXH-USMNBBXXX) | SE3800H-US |
| Rated AC Power (208V / 240V) | 3300 W / 3800 W |
| Maximum AC Power Output (208V / 240V) | 3300 W / 3800 W |
| AC Output Voltage (Nominal) | 208 / 240 Vac |
| AC Output Voltage (Range) | 183 – 264 Vac |
| AC Frequency Range (min - nom - max) | 59.3 – 60 – 60.5(2) Hz |
| Maximum Continuous Output Current @ 240V | 16 A |
| Maximum Continuous Output Current @ 208V | 16 A |
| GFDI Threshold | 1 A |
| Total Harmonic Distortion (THD) | < 3 % |
| Power Factor | 1, adjustable -0.85 to 0.85 |
| Utility Monitoring, Islanding Protection, Country Configurable Thresholds | Yes |
| Charge Battery from AC (if allowed) | Yes |
| Typical Nighttime Power Consumption | < 2.5 W |
| Rated AC Power in Backup Operation | 7600 W |
| AC L-L Output Voltage Range in Backup | 211 – 264 Vac |
| AC L-N Output Voltage Range in Backup | 105 – 132 Vac |
| AC Frequency Range in Backup (min - nom - max) | 55 – 60 – 65 Hz |
| Maximum Continuous Output Current in Backup Operation | 32 A |
| GFDI | 1 A |
| THD | < 5 % |
| Rated AC Power | 9600 W |
| AC Output Voltage Range | 211 – 264 Vac |
| On-Grid AC Frequency Range (min - nom - max) | 59.3 – 60 – 60.5 Hz |
| Maximum Continuous Output Current @240V (grid, PV and battery) | 40 Aac |
| Transformer-less, Ungrounded | Yes |
| Max Input Voltage | 480 Vdc |
| Nom DC Input Voltage | 380 Vdc |
| Reverse-Polarity Protection | Yes |
| Ground-Fault Isolation Detection | 600k? Sensitivity |
| Maximum DC Power @ 240V | 7600 W |
| Maximum DC Power @ 208V | 6600 W |
| Maximum Input Current(4) @ 240V | 20 Adc |
| Maximum Input Current(4) @ 208V | 9 Adc |
| Max. Input Short Circuit Current | 45 |
| Maximum Inverter Efficiency | 99.20% |
| CEC Weighted Efficiency | 99.00% |
| 2-pole Disconnection | Yes |
| Supported Battery Types | SolarEdge Home Battery, LG RESU Prime |
| Number of Batteries per Inverter | Up to 3 SolarEdge Home Battery, up to 2 LG RESU Prime |
| Continuous Power(5) (208 / 240) | 3800 W / 7600 W |
| Peak Power(5) (208 / 240) | 3800 W / 7600 W |
| Max Input Current | 20 Adc |
| 2-pole Disconnection | Up to inverter rated backup power |
| Consumption Metering | Built-in(6) |
| Backup & Battery Storage | With Backup Interface (purchased separately) for service up to 200A; up to 3 inverters |
| EV Charging | Direct connection to SolarEdge Home EV Charger |
| Supported Communication Interfaces | RS485, Ethernet, Cellular(7, 8), Wi-Fi(8), SolarEdge Home Network |
| Revenue Grade Metering, ANSI C12.20 | Built-in(6) |
| Integrated AC, DC and Communication Connection Unit | Yes |
| Inverter Commissioning | With the SetApp mobile application using built-in Wi-Fi Access Point for local connection |
| DC Voltage Rapid Shutdown (PV and Battery) | Yes, according to NEC 2014 – 2023 per article 690.11 and article 690.12 |
| Safety | UL 1741, UL 1741SA, UL 1741SB, UL 1699B, CSA 22.2#107.1, C22.2#330, C22.3#9, ANSI/CAN/UL 9540 |
| Grid Connection Standards | IEEE 1547 and IEEE 1547.1, Rule 21, Rule 14H |
| Emissions | FCC Part 15 Class B |
| AC Output and EV AC Output Conduit Size / AWG Range | 1'' maximum / 14 – 4 AWG |
| DC Input (PV and Battery) Conduit Size / AWG Range | 1'' maximum / 14 – 6 AWG |
| Dimensions with Connection Unit (H x W x D) | 17.7 x 14.6 x 6.8 in / 450 x 370 x 174 mm |
| Weight with Connection Unit | 30.8 lb / 14 kg |
| Noise | < 50 dBA |
| Cooling | Natural Convection |
| Operating Temperature Range | (-) 40 to (+) 140 / (-) 40 to (+)60(9) ?F / ?C |
| Protection Rating | NEMA 4X |
| Warranty | 12 years. Extendable to 20 Years |
