| Specification | Value |

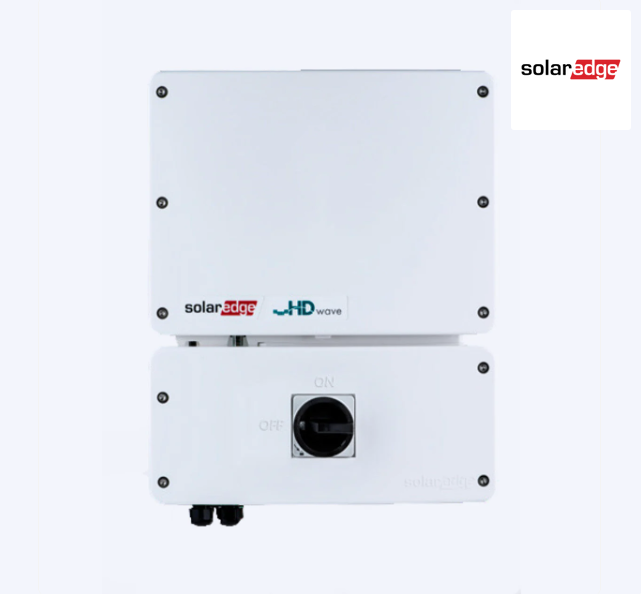

| Model No. | SE10000H-US |
| Rated AC Power Output | 10000 V |
| Maximum AC Power Output | 10000 V |
| AC Output Voltage Min.-Nom.-Max. | 211 - 240 - 264 Vac |
| AC Frequency (Nominal) | 59.3 - 60 - 60.5(1) Hz |
| Maximum Continuous Output Current @240V | 42 A |
| GFDI Threshold | 1 A |
| Utility Monitoring, Islanding Protection, Country Configurable Thresholds |
Yes |
| Maximum DC Power @240V | 15500 W |
| Transformer-less, Ungrounded | Yes |
| Maximum Input Voltage | 480 Vdc |
| Nominal DC Input Voltage | 400 Vdc |
| Maximum Input Current @240V(2) | 27 Adc |
| Max. Input Short Circuit Current | 45 Adc |
| Reverse-Polarity Protection | Yes |
| Ground-Fault Isolation Detection | 600k Sensitivity |
| Maximum Inverter Efficiency | 99.20% |
| CEC Weighted Efficiency | 99% |
| Nighttime Power Consumption | < 2.5 W |
| Supported Communication Interfaces | RS485, Ethernet, ZigBee (optional), Cellular (optional) |
| Revenue Grade Data, ANSI C12.20 | Optional(3) |
| Rapid Shutdown - NEC 2014 and 2017 690.12 | Automatic Rapid Shutdown upon AC Grid Disconnect |
| Safety | UL1741, UL1741 SA, UL1699B, CSA C22.2, Canadian AFCI according to T.I.L. M-07 |
| Grid Connection Standards | IEEE1547, Rule 21, Rule 14 (HI) |
| Emissions | FCC Part 15 Class B |
| AC Output Conduit Size / AWG Range | 1" Maximum /14-4 AWG |
| DC Input Conduit Size / # of Strings / AWG Range | 1" Maximum / 1-3 strings / 14-6 AWG |
| Dimensions with Safety Switch (HxWxD) | 21.3 x 14.6 x 7.3 in / 540 x 370 x 185 mm |
| Weight with Safety Switch | 38.8 lb / 17.6 kg |
| Noise | <50 dBA |
| Cooling | Natural Convection |
| Operating Temperature Range | -13 to +140 / -25 to +60(4) (-40?F / -40?C option)(5) |
| Protection Rating | NEMA 4X (Inverter with Safety Switch) |
| Warranty | 12 years. Extendable to 25 Years |
