| Specification | Data |
|---|---|

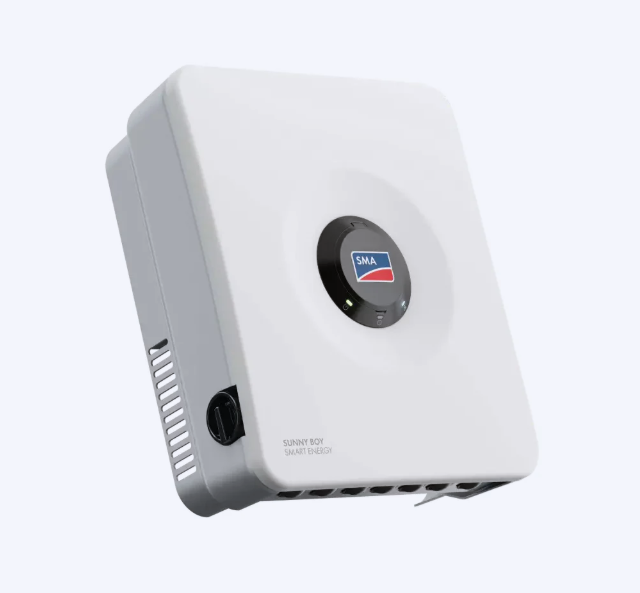

| Model Number | SBSE9.6-US-50 |
| Max. PV Array Power | 19,200 W |
| AC Rated Power (240V / 208V) | 9,600 W / 8,320 W |
| Max. DC Voltage | 600 V |
| MPP Voltage Range | 168 V – 480 V |
| MPPT Inputs | 3 or 4 |
| Max. Input Current / SC Current per MPPT | 15 A / 30 A |
| Battery Compatibility | BYD Battery-Box Premium HVL |
| Battery Voltage Range | 90 V – 500 V |
| Max. Charge / Discharge Power | 12,000 W / 10,105 W |
| Enclosure | NEMA 3R (Type 3R) |
| Cooling Method | Natural Convection |
| Max. Efficiency | 98% |
| CEC Efficiency (240V / 208V) | 97.5% / 97% |
| Integrated Rapid Shutdown | SunSpec Certified Transmitter |
| Communication | WLAN, Ethernet, RS-485, Modbus, CAN |
| Smart Features | ShadeFix, Smart Connected, Backup Secure |
| Dimensions (W × H × D) | 19.7 × 26.8 × 9.2 in |
| Weight | 48.5 lbs |
| Certifications | UL 1741 SB, UL 9540, UL 62109, NEC 2020/2023, IEEE 1547 |
| Warranty | 10 Years Standard (Optional +5/10/15) |
