Home > All Products > Solar Inverters > Hybrid Inverters > SMA 11.5kW Sunny Boy Smart Energy Hybrid Inverter SBSE11.5-US-50
  • SMA 11.5kW Sunny Boy Smart Energy Hybrid Inverter SBSE11.5-US-50
1/1
  • SMA 11.5kW Sunny Boy Smart Energy Hybrid Inverter SBSE11.5-US-50
Share:

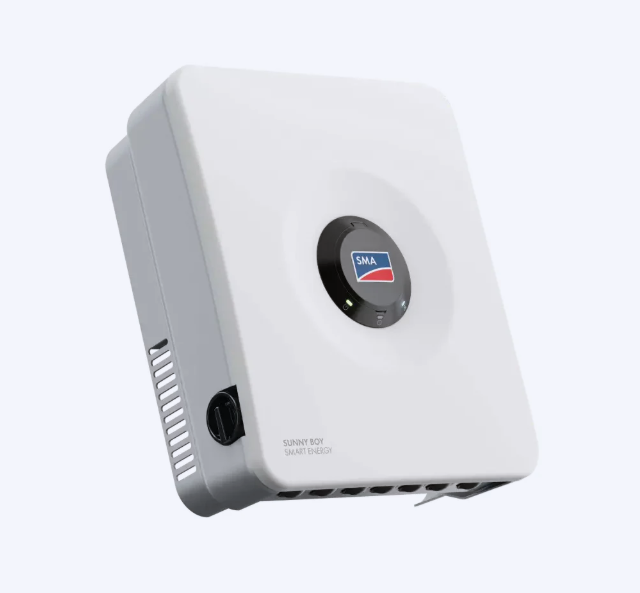

SMA Sunny Boy Smart Energy 11.5kW Hybrid Inverter 208-240V (SBSE11.5-US-50)

No.SBSE11.5-US-50
0.0 (0)
$3,279.37 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
Download
Add to Favorites (0)
  • SMA 11.5kW Sunny Boy Smart Energy Hybrid Inverter SBSE11.5-US-50
  • SMA 11.5kW Sunny Boy Smart Energy Hybrid Inverter SBSE11.5-US-50
1/1
  • SMA 11.5kW Sunny Boy Smart Energy Hybrid Inverter SBSE11.5-US-50
  • Description
Specification Data
Model Number SBSE11.5-US-50
AC Rated Power (240V) 11,520 W
AC Rated Power (208V) 9984 W
Max. DC Power (PV Input) 23,040 W
Max. DC Voltage 600 V
MPP Voltage Range 200 V – 480 V
MPPT Inputs 3 or 4 (configurable)
Max. Input Current per MPPT 15 A
Max. Short-Circuit Current per MPPT 30 A
Battery Compatibility BYD Battery-Box Premium HVL Series
Battery Voltage Range 90 V – 500 V
Max. Charge / Discharge Power 12,000 W / 12,000 W
Communication RS485, CAN, Ethernet, WLAN
Enclosure Type NEMA 3R (Outdoor Rated)
Cooling Method Natural Convection
Max. Efficiency 98%
CEC Efficiency (240V) 97.5%
Dimensions (W × H × D) 19.7 × 26.8 × 9.2 in
Weight 48.5 lbs
Warranty 10-Year Standard, Optional Extensions Available
Certifications UL1741 SB, UL62109, UL9540, IEEE1547, FCC, CA Rule 21, NEC 2023
