Module Type |
SEG-440-BTD-BG |
||
|
|
Front STC |
Front NOCT |
Back STC |
|
Maximum Power -Pmp(Wp)* |
440 |
332 |
352 |
|
Open Circuit Voltage -Voc(V) |
39.30 |
37.41 |
39.28 |
|
Short Circuit Current -Isc(A) |
14.15 |
11.33 |
11.33 |
|
Maximum Power Voltage -Vmp(V) |
32.70 |
30.83 |
32.68 |
|
Maximum Power Current -Imp(A) |
13.46 |
10.77 |
10.77 |
|
Module Efficiency(%) |
22.53 |
||
| Specification | Details |
|---|---|
| Manufacturer | SEG Solar |

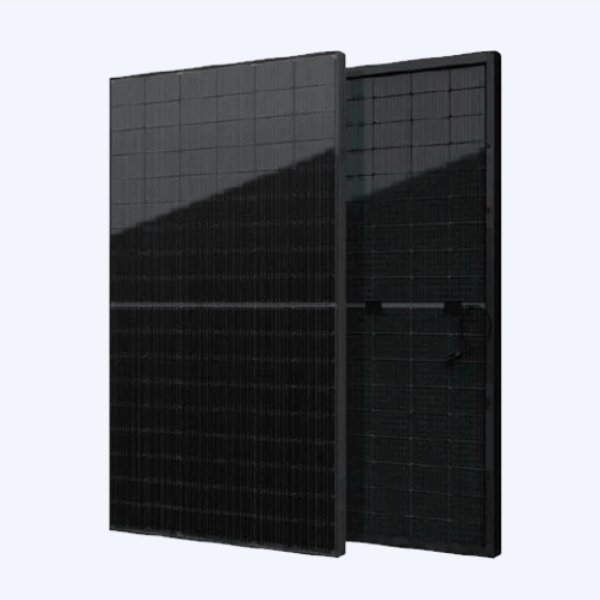

| Model | SEG-440-BTD-BG-T3 |
| Series | YUKON N Series |
| Cell Technology | N-Type Monocrystalline |
| Cell Configuration | 108 Half Cells |
| Maximum Power (Pmax) | 440 W |
| Module Efficiency | 22.53% |
| Maximum Power Voltage (Vmp) | 32.70 V |
| Maximum Power Current (Imp) | 13.46 A |
| Open Circuit Voltage (Voc) | 39.30 V |
| Short Circuit Current (Isc) | 14.15 A |
| Temperature Coefficient (Pmax) | -0.30% / °C |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 30 A |
| Operating Temperature | -40°C to +85°C |
| Nominal Operating Cell Temperature (NOCT) | 45 ± 2°C |
| Bifaciality | 80 ± 10% |
| Dimensions | 67.80 × 44.65 × 1.18 inches. |
| Weight | 52.9 lb |
| Front Glass | 2.0 mm AR-coated semi-tempered glass |
| Back Glass | 2.0 mm semi-tempered glass |
| Frame | Black anodized aluminum alloy |
| Junction Box | IP68 rated with 3 bypass diodes |
| Connector | MC4 |
| Cable | 12 AWG PV wire |
| Cable Length | Portrait: 400 mm (+) / 200 mm (-) |
| Front Load Capacity | 5400 Pa |
| Rear Load Capacity | 2400 Pa |
| Packaging | 36 modules per pallet / 864 modules per 40' HQ container |
