ELECTRICAL DATA |
STC |
|
Power Output-Pmax (W.) |
460 |
|
Watt Class Sorting-(W) |
0/+10 |
|
Nominal Power Voltage-Vmpp(V) |
54.9 |
|
Nominal Power Current-IMpp(A) |
8.38 |
|
Open Circuit Voltage-Voc (V) |
65.7 |
|
Short Circuit Current-1sc(A) |
8.88 |
|
Power Density (W/ft²) |
20.5 |
|
Panel Efficiency (%) |
22.1 |

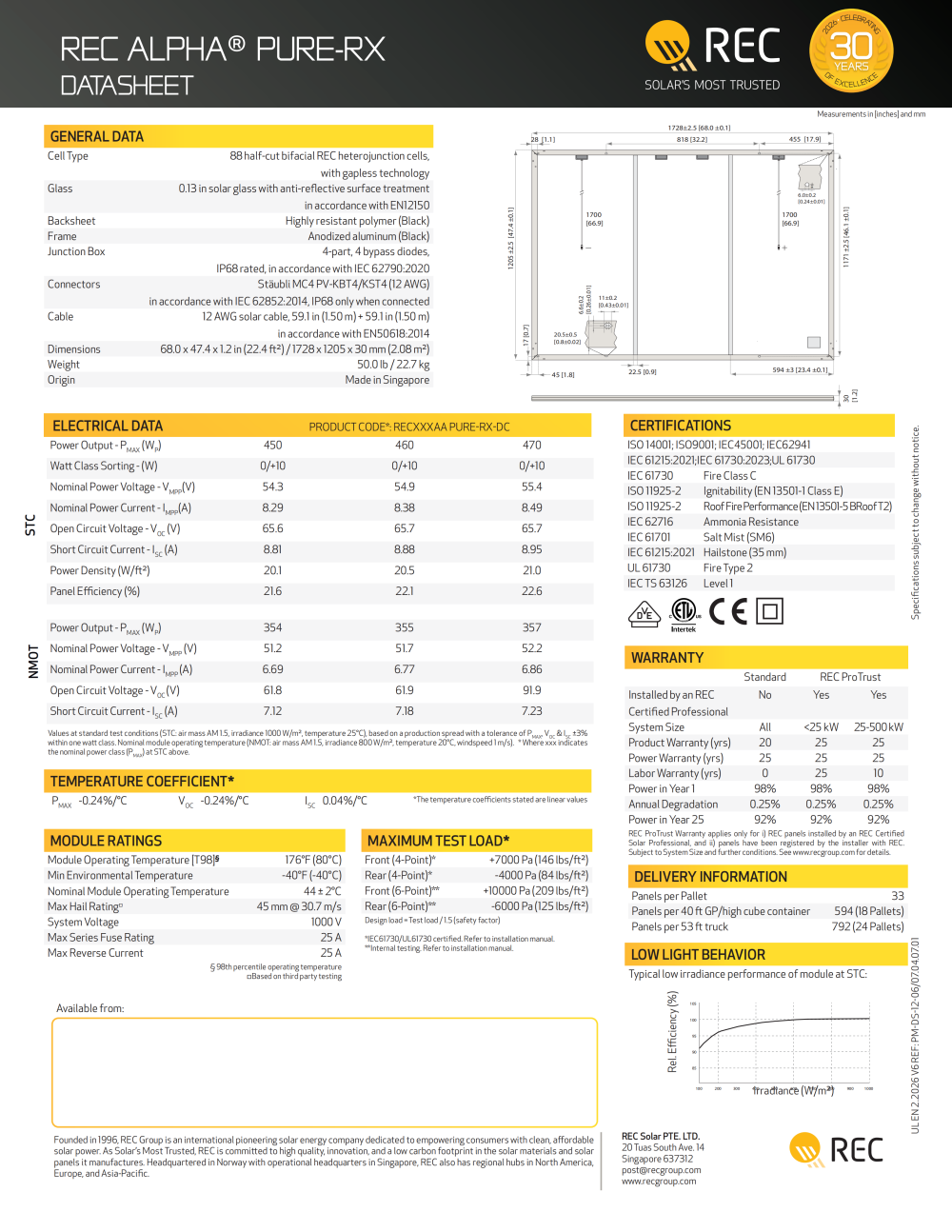

| Specification | Details |
|---|---|
| Manufacturer | REC Group |

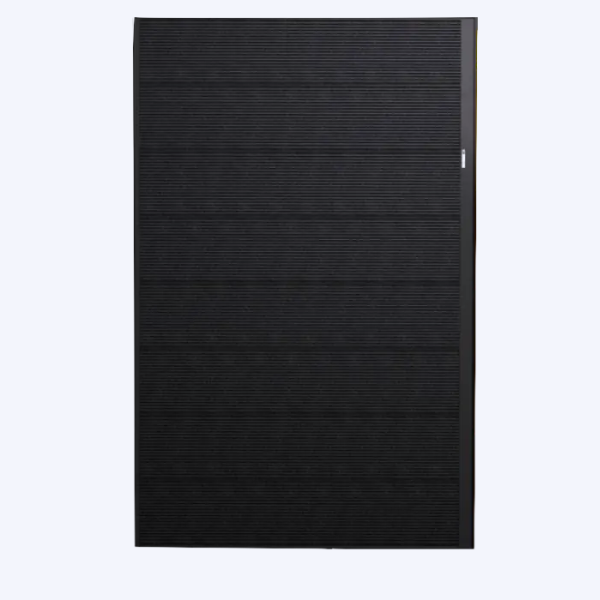

| Model | REC460AA PURE-RX-DC |
| Series | REC Alpha Pure-RX |
| Cell Technology | Heterojunction (HJT) |
| Cell Configuration | 88 Half-Cut Bifacial REC HJT Cells |
| Rated Power (Pmax) | 460W |
| Module Efficiency | 22.1% |
| Power Tolerance | 0 to +10W |
| Maximum Power Voltage (Vmp) | 54.9V |
| Maximum Power Current (Imp) | 8.38A |
| Open Circuit Voltage (Voc) | 65.7V |
| Short Circuit Current (Isc) | 8.88A |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 25A |
| Maximum Reverse Current | 25A |
| Temperature Coefficient (Pmax) | -0.24%/°C |
| Temperature Coefficient (Voc) | -0.24%/°C |
| Temperature Coefficient (Isc) | +0.04%/°C |
| Nominal Module Operating Temperature | 44°C ± 2°C |
| Operating Temperature Range | -40°F to 176°F (-40°C to 80°C) |
| Front Glass | 0.13 in (3.2 mm) Solar Glass with Anti-Reflective Coating |
| Backsheet | Highly Resistant Black Polymer |
| Frame | Black Anodized Aluminum |
| Junction Box | IP68 Rated, 4 Bypass Diodes |
| Connector Type | Stäubli MC4 PV-KBT4/KST4 |
| Cable Length | 59.1 in (1.5 m) Positive / Negative |
| Dimensions | 68.0 × 47.4 × 1.2 in |
| Weight | 50.0 lb |
| Maximum Front Load | +7000 Pa |
| Maximum Rear Load | -4000 Pa |
| Maximum Hail Rating | 45 mm @ 30.7 m/s |
| Origin | Made in Singapore |
| Pallet Quantity | 33 Modules |
| 40ft Container Quantity | 594 Modules |
