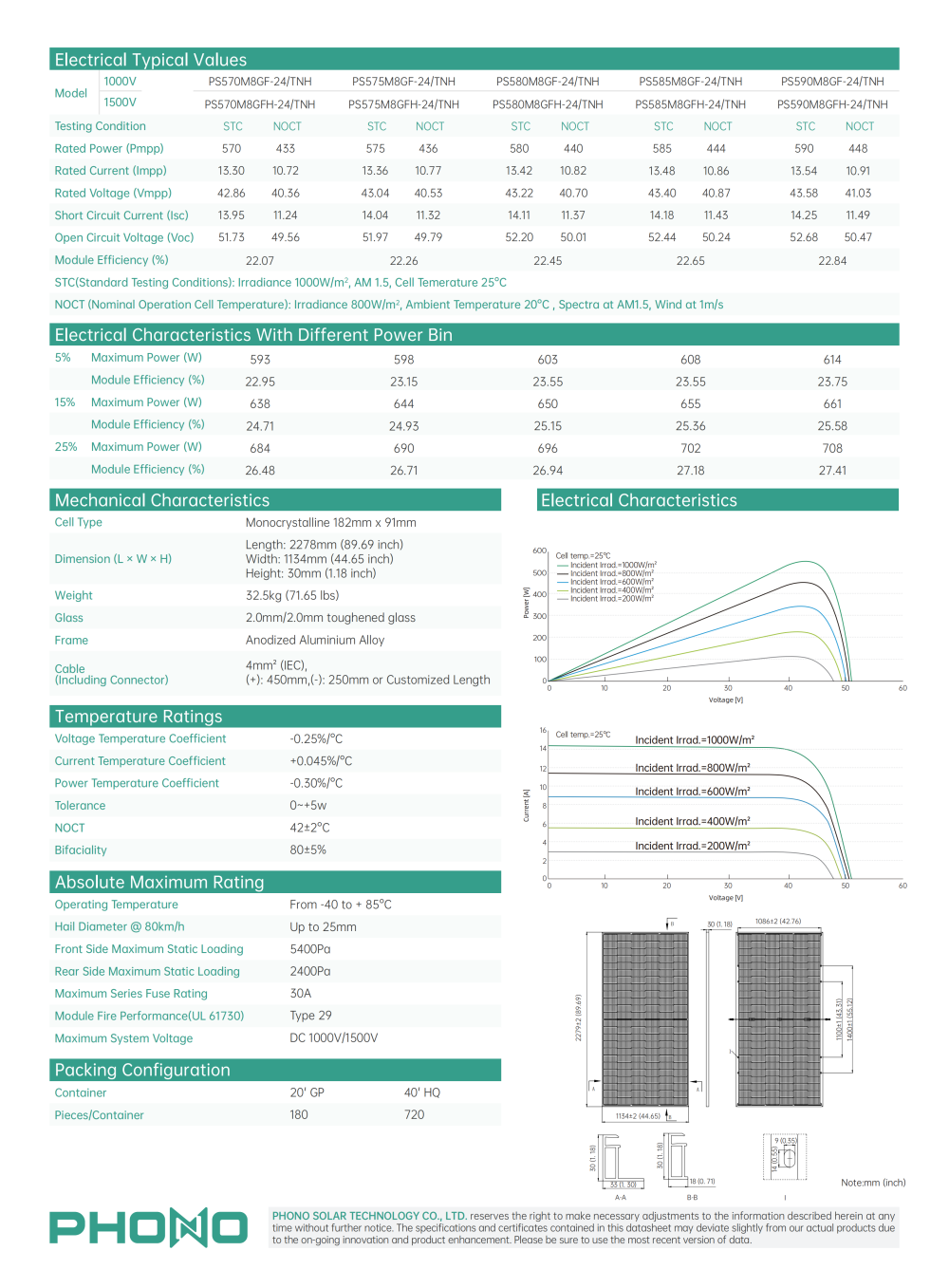

Model |
1000V |
PS590M8GF-24/TNH |
|
|
Testing Condition |
STC |
NOCT |
|
|
Rated Power (Pmpp) |
590 |
448 |
|
|
Rated Current (Impp) |
13.54 |
10.91 |
|
|
Rated Voltage (Vmpp) |
43.58 |
41.03 |
|
|
Short Circuit Current (Isc) |
14.25 |
11.49 |
|
|
Open Circuit Voltage (Voc) |
52.68 |
50.47 |
|
|
Module Efficiency (%) |
22.84 |
||
| Specification | Details |
|---|---|
| Manufacturer | Phono Solar |

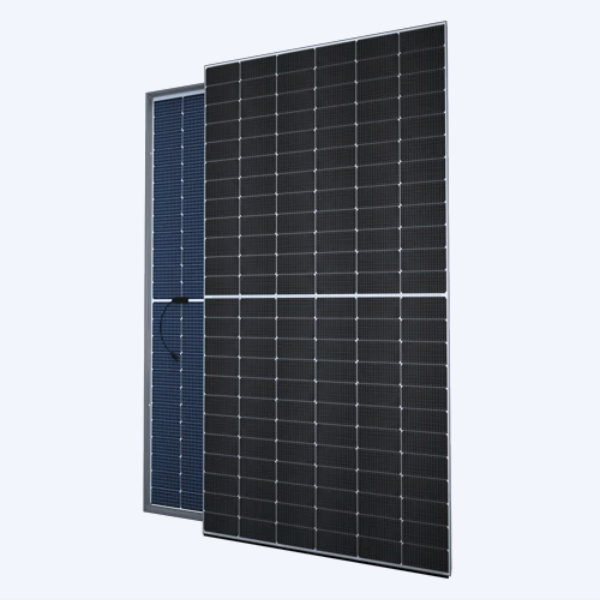

| Model | PS590M8GF-24/TNH |
| Cell Technology | N-Type TOPCon Monocrystalline Bifacial |
| Cell Configuration | 144 Half-Cut Cells |
| Maximum Power (Pmax) | 590 W |
| Module Efficiency | ≈ 22.84% |
| Maximum Power Voltage (Vmp) | 43.58 V |
| Maximum Power Current (Imp) | 13.54 A |
| Open Circuit Voltage (Voc) | 52.68 V |
| Short Circuit Current (Isc) | 14.25 A |
| Power Tolerance | 0 ~ +5 W |
| Bifaciality | ≈ 80% ± 5% |
| Maximum System Voltage | 1500 V DC |
| Temperature Coefficient (Pmax) | -0.30% / °C |
| NOCT | ≈ 42°C ±2°C |
| Operating Temperature | -40°C to +85°C |
| Mechanical Load | 5400 Pa front / 2400 Pa rear |
| Pallet Quantity | 36 modules |
