Product Description
Functional Benefits and Ideal Users

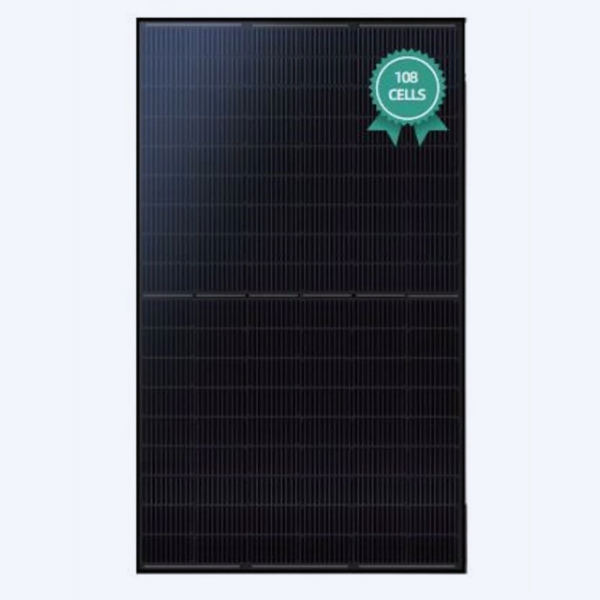

The Phono 440W Draco N-Type TopCon All Black Solar Panel is perfect for homeowners seeking a modern, high-performance solar panel for their residential energy needs. This black solar panel combines elegant aesthetics with robust solar energy production, making it an excellent choice for those who want a visually appealing system that blends well with contemporary homes. Thanks to its bifacial design, this solar panel bifacial capability captures sunlight from both front and back surfaces, increasing energy yield especially in reflective environments such as rooftops or light-colored ground surfaces. If you desire reliable, clean energy with a focus on sustainability and style, this panel meets those lifestyle and installation demands.
Technical Specifications and Measurable Performance
At the heart of this module lies the topcon solar panel technology with n type solar panels cells that elevate energy conversion efficiency to 22.53%. It delivers a rated power output of 440 watts, optimized for residential scale systems. The panel features dual tempered glass and an anodized aluminum frame, enhancing durability and protecting it against harsh weather conditions. Its wide operating temperature range, from -40°C to +85°C, ensures stable performance even under extreme climates. With an IP68 rated junction box and MC4 compatible connectors, installation is secure and seamless. These specifications confirm the black solar panel’s resilience, superior bifacial efficiency, and system compatibility for dependable everyday use.
Industry Applications and Practical Value
This solar panel is particularly suited for home solar projects that require both reliable output and handsome design integration. The n type solar panels technology embedded in this topcon solar panel reduces degradation effects, thereby extending product lifespan and energy production consistency. Its bifacial energy capture supports higher total power generation, making it an attractive option for projects demanding optimized rooftop or limited surface area efficiency. Whether retrofitting existing arrays or installing new systems, this black solar panel offers owners long-term savings on electricity bills while supporting a transition to sustainable energy. It aligns with UL certifications and domestic content requirements, smoothing permitting processes and ensuring compatibility with common residential solar workflows.
|

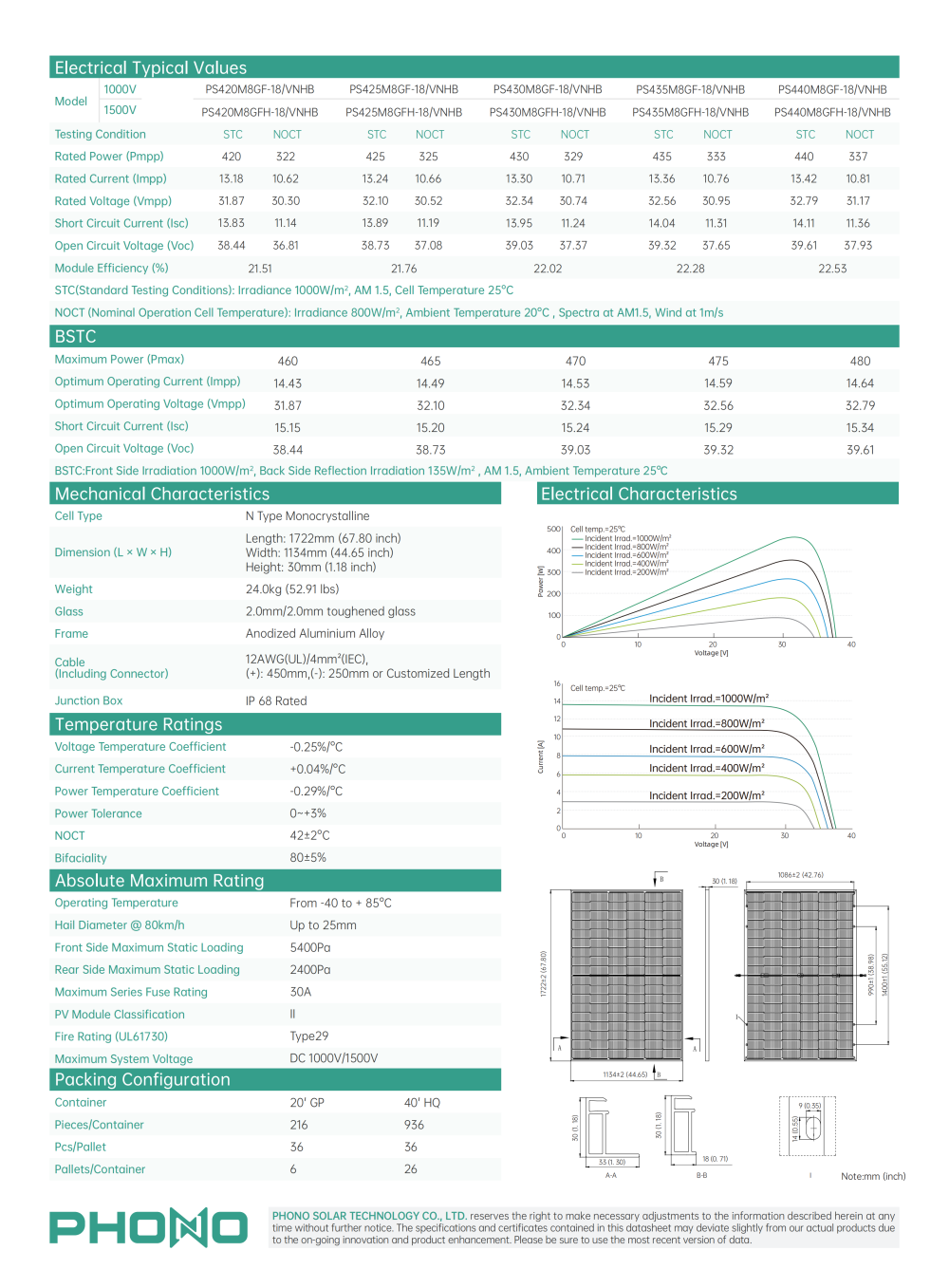

Model
|
1000V
|
PS440M8GF-18/VNHB
|
|
Testing Condition
|
STC
|
NOCT
|
|
Rated Power (Pmpp)
|
440
|
337
|
|
Rated Current (Impp)
|
13.42
|
10.81
|
|
Rated Voltage (Vmpp)
|
32.79
|
31.17
|
|
Short Circuit Current (Isc)
|
14.11
|
11.36
|
|
Open Circuit Voltage (Voc)
|
39.61
|
37.93
|
|
Module Efficiency (%)
|
22.53
|
| Specification |
Details |
| Manufacturer |
Phono Solar |
| Model |
PS440M8GFH-18/VNHB |
| Series |
Draco Module Series |
| Cell Technology |
N-Type TOPCon Bifacial |
| Cell Configuration |
108 Half Cells |
| Maximum Power (Pmax) |
440 W |
| Module Efficiency |
22.53% |
| Maximum Power Voltage (Vmp) |
32.79 V |
| Maximum Power Current (Imp) |
13.42 A |
| Open Circuit Voltage (Voc) |
39.61 V |
| Short Circuit Current (Isc) |
14.11 A |
| Temperature Coefficient (Pmax) |
-0.29% / °C |
| Maximum System Voltage |
1000 / 1500 V DC |
| Operating Temperature |
-40°C to +85°C |
| Nominal Operating Cell Temperature (NOCT) |
42 ± 2°C |
| Bifaciality |
80% ± 5% |
| Dimensions |
67.8 × 44.65 × 1.18 in |
| Weight |
52.9 lb |
| Glass |
2.0 mm / 2.0 mm toughened dual glass |
| Frame |
Anodized aluminum alloy |
| Junction Box |
IP68 rated |
| Connector |
MC4 compatible |
| Maximum Static Load |
5400 Pa (front) / 2400 Pa (rear) |
| Maximum Series Fuse Rating |
30 A |
| Pallet Quantity |
36 modules |
FAQ
What makes the Phono 440W Draco panel different from other solar panels?
Our Phono 440W Draco N-Type TOPCon panel uses advanced N-Type TOPCon cell technology, offering higher efficiency and durability. Its bifacial design captures sunlight from both sides, providing increased energy output compared to traditional single-sided solar panels.
Can I install the all black solar panel on any residential roof type?
Yes, the panel features an anodized aluminum frame compatible with standard mounting systems, making it suitable for most residential roofs. Its durable dual tempered glass and wide temperature tolerance ensure reliable performance in diverse climates.
Do you support warranty and maintenance for your solar panels?
We assist with manufacturer warranty claims directly from Phono Solar, which provides UL and FEOC certifications for safety and performance. Our Anaheim team helps coordinate warranty support and answers maintenance questions whenever needed.
How do you ensure fast delivery and local product availability?
Our Anaheim warehouse stocks steady inventory of the topcon solar panel and other solar hardware for fast domestic shipping. Local customers can visit to inspect products or schedule a pickup, ensuring timely project progress with reliable equipment.
