Home > All Products > Solar Inverters > Growatt SPF 12000T DVM-MPV 12kW 48V Low Frequency Split-Phase Off-Grid Inverter

1/1

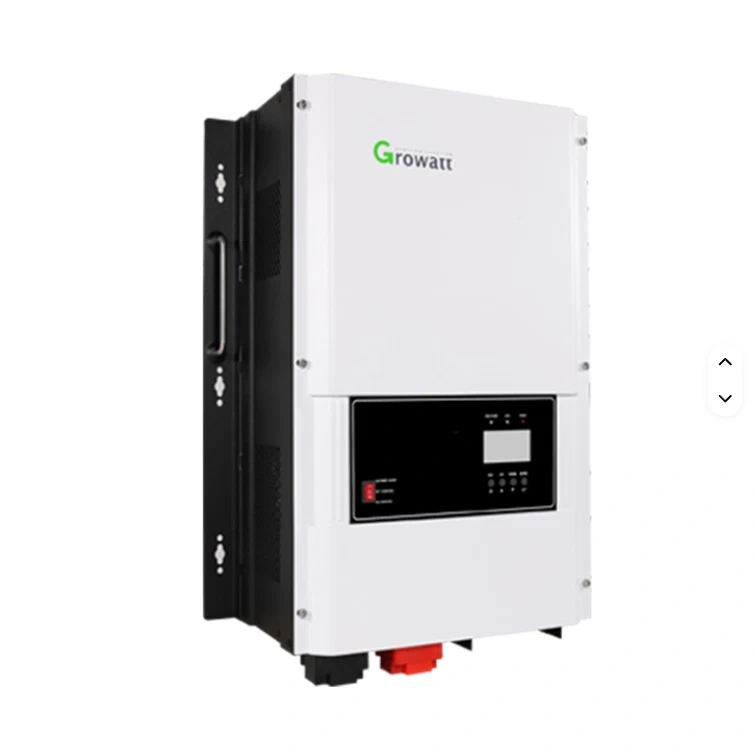

Growatt SPF 12000T DVM-MPV 12kW 48V Low Frequency Split-Phase Off-Grid Inverter

Name: Growatt SPF 12000T DVM-MPV 12kW 48V Low Frequency Split-Phase Off-Grid Inverter
Brand: Solarinfi
SKU: SPF 12000T DVM-MPV
Price: 2420.8 USD
Availability: InStock

No.SPF 12000T DVM-MPV

0.0 (0)

$2,420.80 ~~$2,583.00~~

12kW Continuous / 36kW Surge Output — Built-in pure copper low-frequency transformer delivers massive surge capacity for well pumps and heavy motor loads.
120V/240V Split-Phase AC Output — Direct dual-voltage output designed for North American residential and commercial off-grid electrical panels.
Upgraded MPV Dual MPPT Controller — Supports 7,000W PV array input with a high 120A solar charge current for rapid battery replenishment.
Heavy-Duty Utility & Generator Charging — Integrated 100A AC charger with configurable grid/solar/generator input priority modes.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Why Choose Growatt SPF 12000T DVM-MPV?

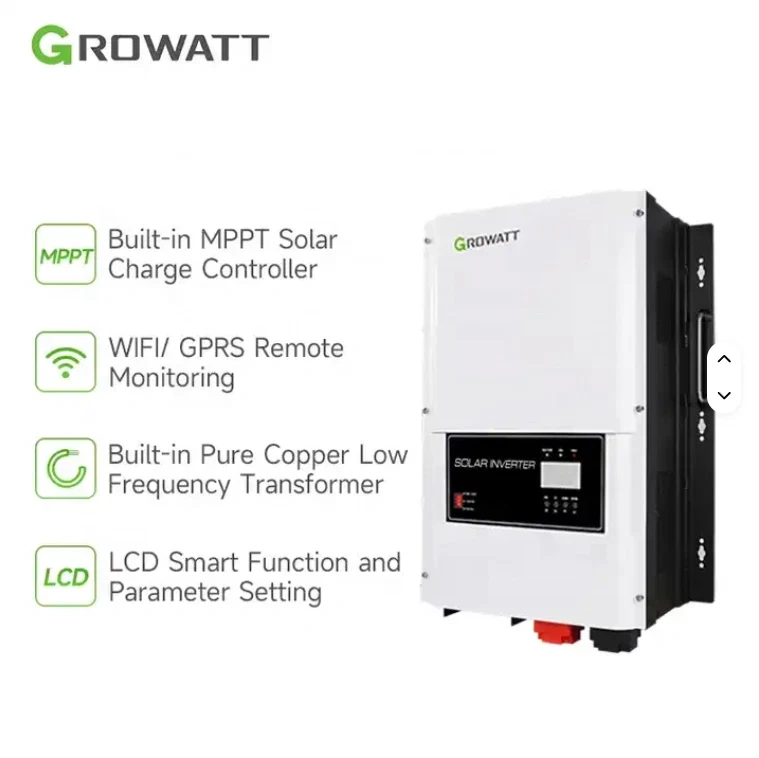

Heavy-Duty Low-Frequency Architecture: Built with a massive pure copper low-frequency transformer, providing extreme durability and three times (36kW) surge power to start high-inductance loads like air compressors, HVAC units, and water pumps.
Advanced MPV Solar Charger: Features upgraded MPPT solar charging architecture (2 independent trackers / 1 string each) supporting up to 7,000W PV array power and 120A maximum charging current.
Native Split-Phase Power: Outputs clean 120V/240V split-phase AC power out of the box without requiring external autotransformers.
Comprehensive Battery Compatibility: Operates seamlessly with 48V LiFePO4 (including Growatt ALP 5.0L) and lead-acid battery banks.

Overview

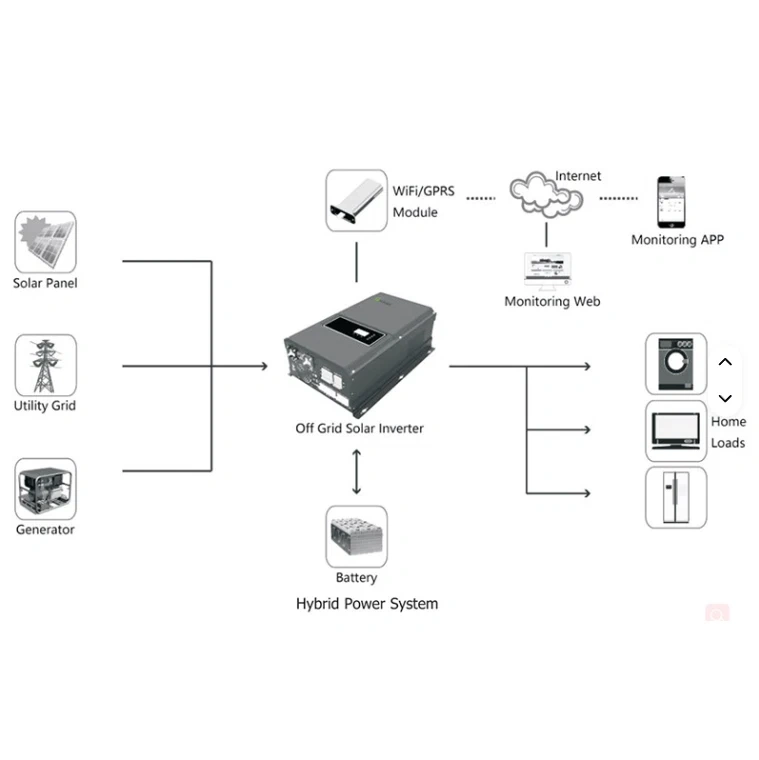

The Growatt SPF 12000T DVM-MPV is the flagship 12,000W 48V low-frequency off-grid inverter engineered for demanding off-grid estates, ranches, workshops, and commercial backup systems. Combining a pure sine wave inverter, an integrated 120A MPPT solar controller, a 100A utility/generator charger, and a heavy-duty copper transformer, it handles severe electrical environments and high startup surges with ease.

Technical Specifications

Model / SKU: SPF 12000T DVM-MPV
Continuous Output Power: 12,000W / 12kW
Surge Rating: 36,000W / 36kW Peak (300% Peak Capacity)
System Battery Voltage: 48VDC (Lithium and Lead-acid Compatible)
AC Output Voltage: 120V / 240V Split-Phase (Pure Sine Wave, 50/60Hz)
Max. PV Array Power & Current: 7,000W Max Solar Input | 120A Max Solar Charge Current | 250VDC Max PV Open Circuit Voltage
Max. AC Utility Charger: 100A Grid/Generator Charging Current
Physical Dimensions & Weight: 380 x 650 x 225 mm (15.0 x 25.6 x 8.9 in) | 75 kg (165.3 lbs)
Enclosure & Cooling: NEMA Type 1 / IP20 Protection Degree
