| Specification | Data |
|---|---|

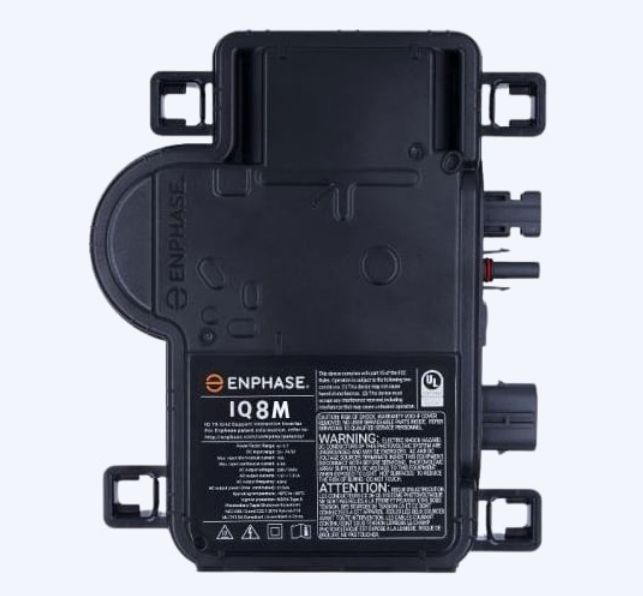

| Model | IQ8M-72-M-US |
| Continuous Output Power | 349VA |
| AC Voltage Output | 240VAC Split-Phase |
| Recommended PV Module | 72-cell (up to 480W) |
| MPPT Voltage Range | 38 – 45V |
| DC Input Voltage Range | 16 – 60V |
| CEC Weighted Efficiency | 97.0% |
| Rapid Shutdown | Built-in, NEC 690.12 |
| Monitoring Platform | Enphase Enlighten via IQ Gateway |
| Communication | Power Line Communication (PLC) |
| Enclosure | NEMA 6 (Outdoor Rated) |
| Dimensions (L × W × H) | 8.3 × 6.9 × 1.2 in |
| Weight | ~2.42 lbs |
| Certifications | UL 1741 SA, IEEE 1547, FCC Part 15 Class B |
| Warranty | 25-Year Limited Warranty |
