Home > All Products > Solar Inverters > EG4 Inverter/Charger 16000W 48V 120/240VAC 21000W MPPT EG4FLEXBOSS21
  • EG4 Inverter/Charger 16000W 48V 120/240VAC 21000W MPPT EG4FLEXBOSS21
1/1
  • EG4 Inverter/Charger 16000W 48V 120/240VAC 21000W MPPT EG4FLEXBOSS21
Share:

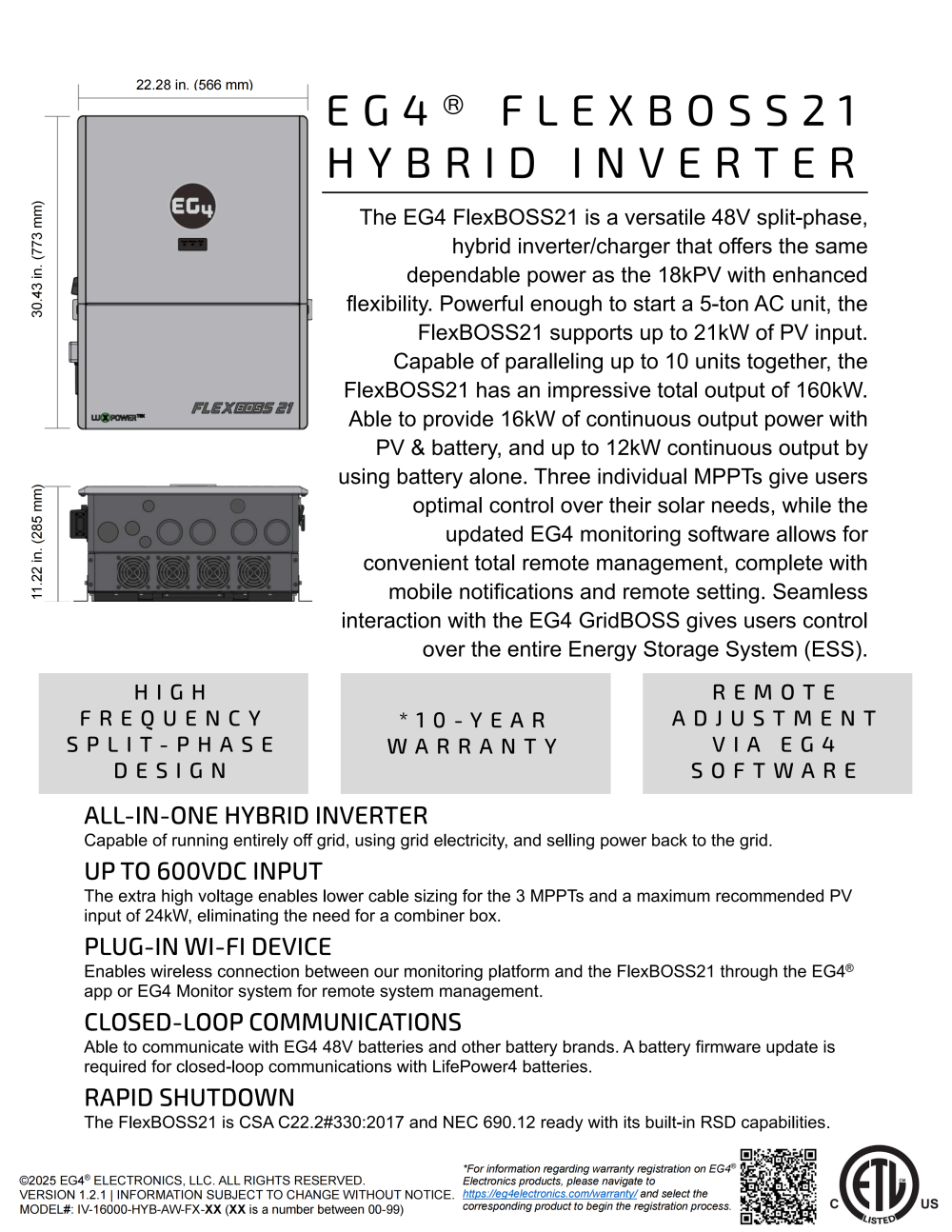

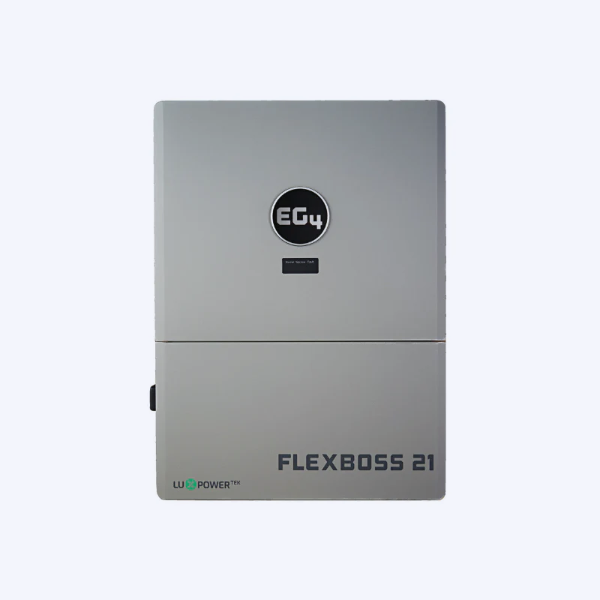

EG4 FlexBOSS21 16kW 48V Split Phase Hybrid Inverter Charger 21kW MPPT (EG4FLEXBOSS21)

No.EG4FLEXBOSS21
0.0 (0)
$4,005.06 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
Download
Add to Favorites (0)
  • EG4 Inverter/Charger 16000W 48V 120/240VAC 21000W MPPT EG4FLEXBOSS21
  • EG4 Inverter/Charger 16000W 48V 120/240VAC 21000W MPPT EG4FLEXBOSS21
1/1
  • EG4 Inverter/Charger 16000W 48V 120/240VAC 21000W MPPT EG4FLEXBOSS21
  • Description

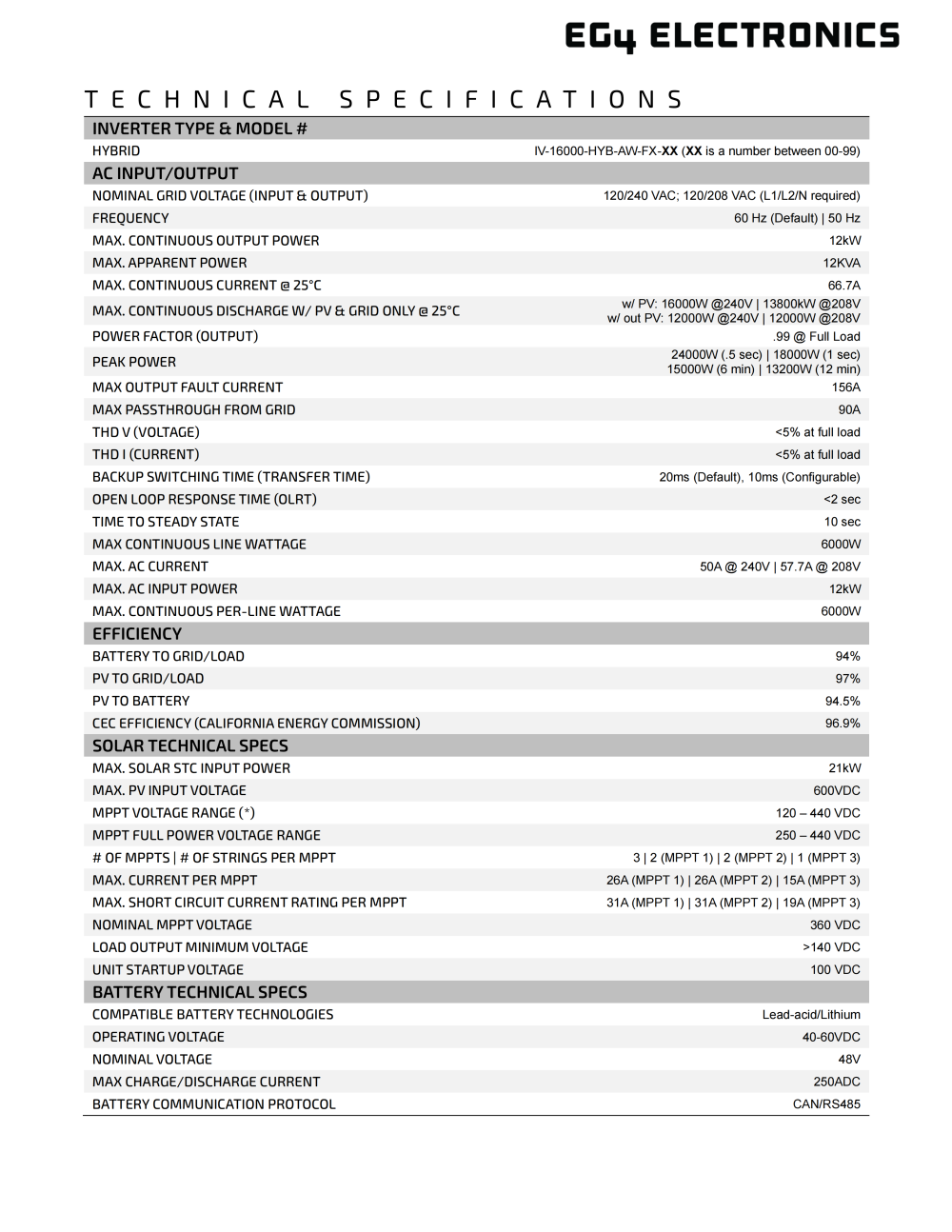

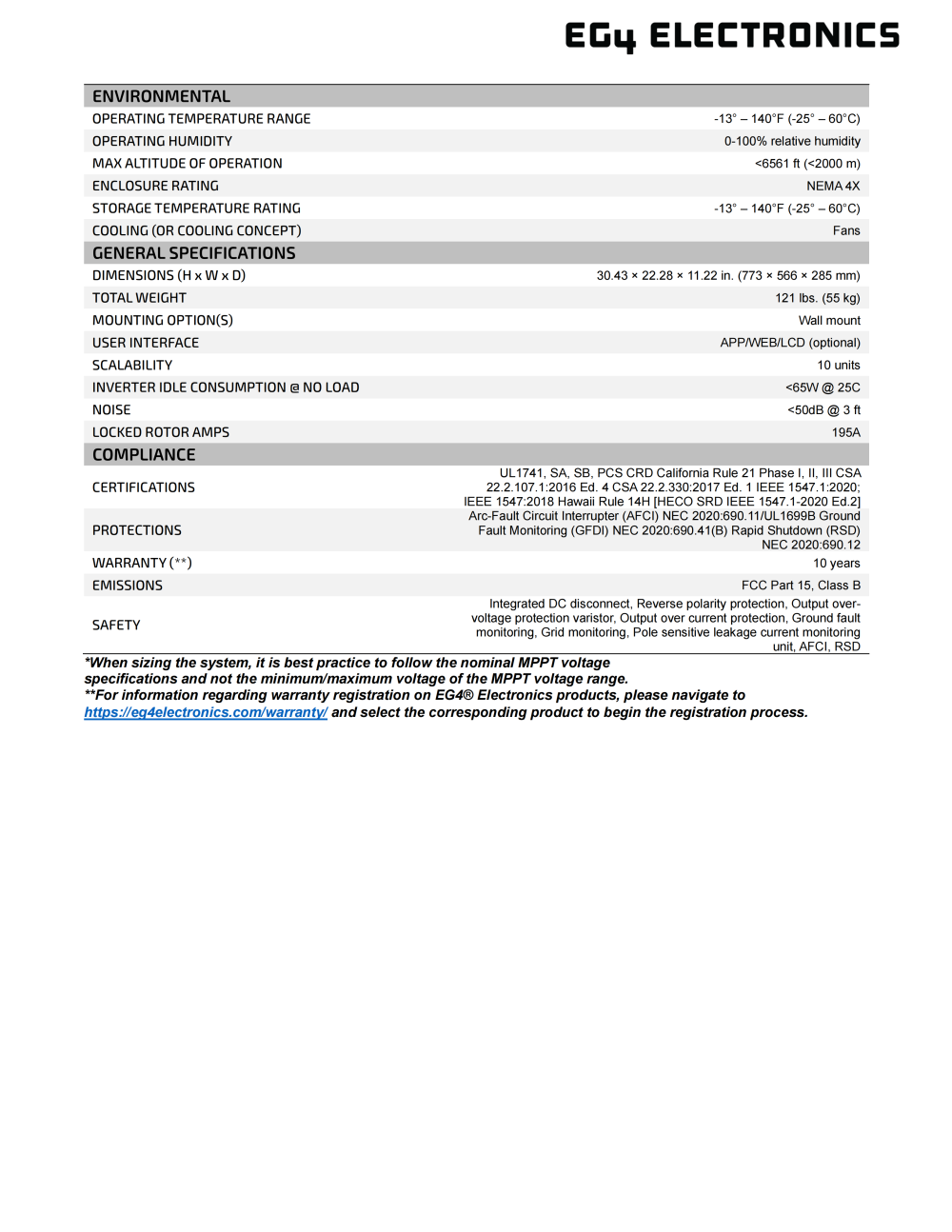

Specification Details
Manufacturer EG4
Model EG4FLEXBOSS21
Product Type Hybrid Inverter / Charger
Nominal Output Power 16 kW
Peak Power 24 kW (0.5 sec)
Battery Voltage 48V (51.2V nominal)
Max PV Input Power 21 kW
Max DC Input Voltage 600 VDC
MPPTs 3 Independent MPPTs
MPPT Voltage Range 120 – 440 VDC
Max Continuous Output Current 66.7 A
Max Battery Charge/Discharge 250 A
AC Output Voltage 120/240V Split Phase or 120/208V
Frequency 50/60 Hz
Efficiency Up to 97%
Transfer Time 10–20 ms
Communication Wi-Fi, Ethernet, Cellular, CAN, RS485
Operating Temperature -13°F to 140°F (-25°C to 60°C)
Enclosure Rating NEMA 4X
Dimensions 30.43 × 22.28 × 11.22 in
Weight 121 lbs
Mounting Wall Mount
Certifications UL1741, CSA, IEEE 1547, FCC Part 15 Class B
