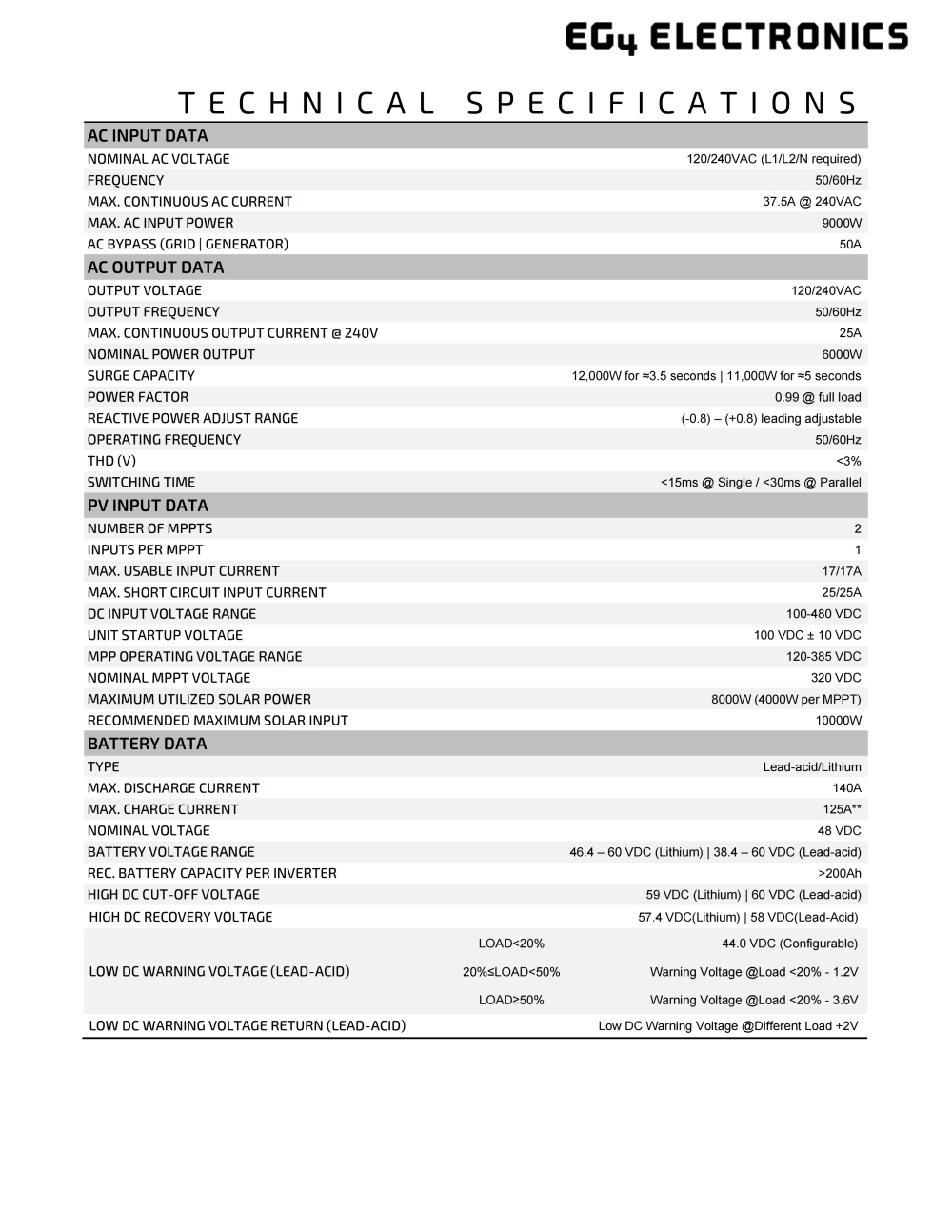

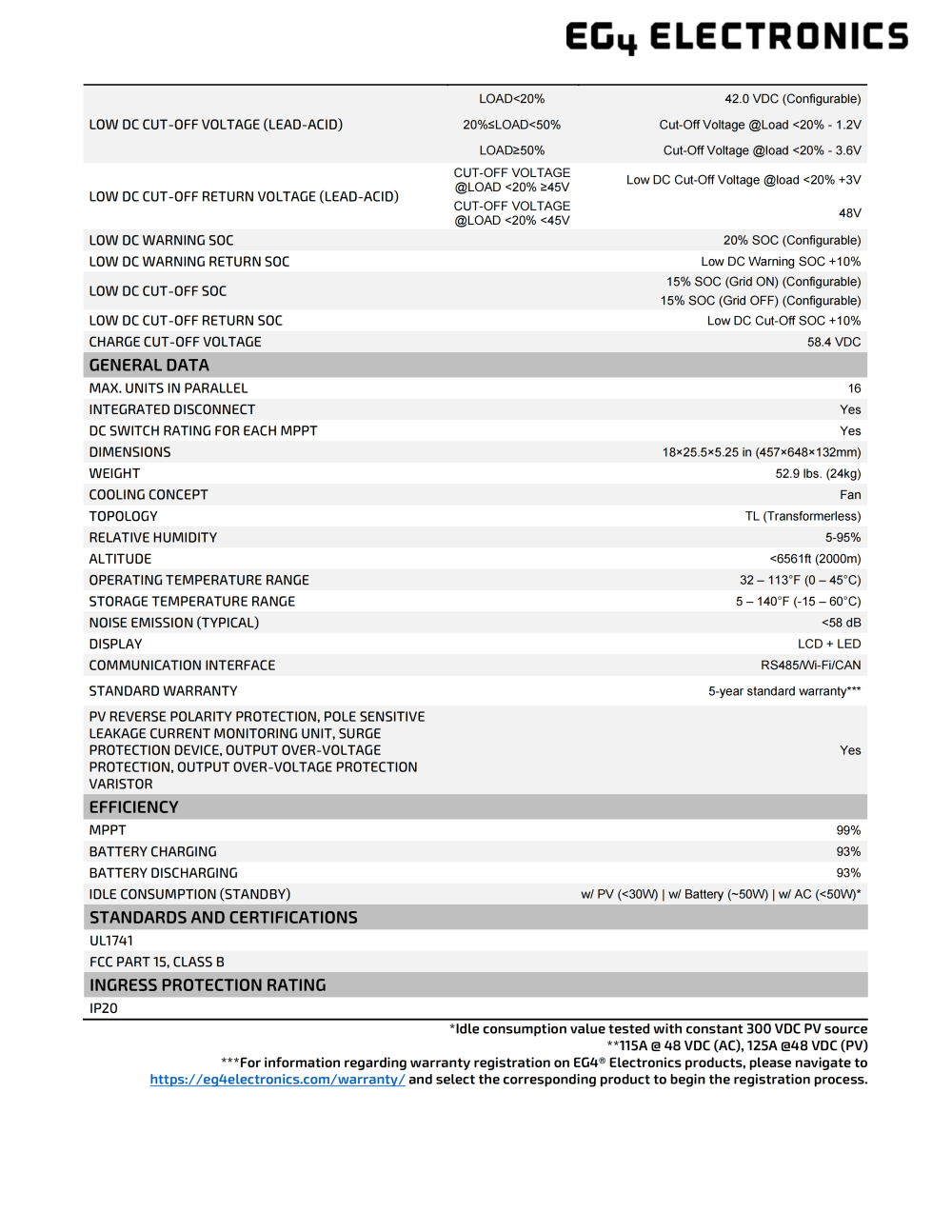

| Specification | Details |
|---|---|
| Model Number | EG4-6000XP |
| AC Output Voltage | 120/240VAC |
| Nominal Power Output | 6000W |
| Maximum AC Input Power | 9000W |
| Surge Capacity | 12,000W for 3.5 sec / 11,000W for 5 sec |
| Power Factor | 0.99 @ full load |
| Switching Time | <15ms (Single) / <30ms (Parallel) |
| Max PV Input Voltage | 480VDC |
| MPPT Operating Voltage | 120-385VDC |
| Number of MPPTs | 2 (4000W per MPPT) |
| Recommended Solar Input | 10,000W |
| Max Battery Discharge Current | 140A |
| Max Battery Charge Current | 125A |
| Battery Compatibility | 48V Lithium & Lead-Acid |
| Cooling Concept | Fan Cooling |
| Max Units in Parallel | 16 Units (96kW) |
| Dimensions (H x W x D) | 18" x 25.5" x 5.25" |
| Weight | 52.9 lbs |
| Operating Temperature | 32°F – 113°F (0°C – 45°C) |
| Enclosure Rating | IP20 |
| Certifications | UL 1741, FCC Part 15, Class B |
