Home > All Products > Solar Inverters > Off-Grid Inverters > EG4 12000XP 48V 12kW Off-Grid Inverter/Charger with 24kW MPPT EG412000XP V1

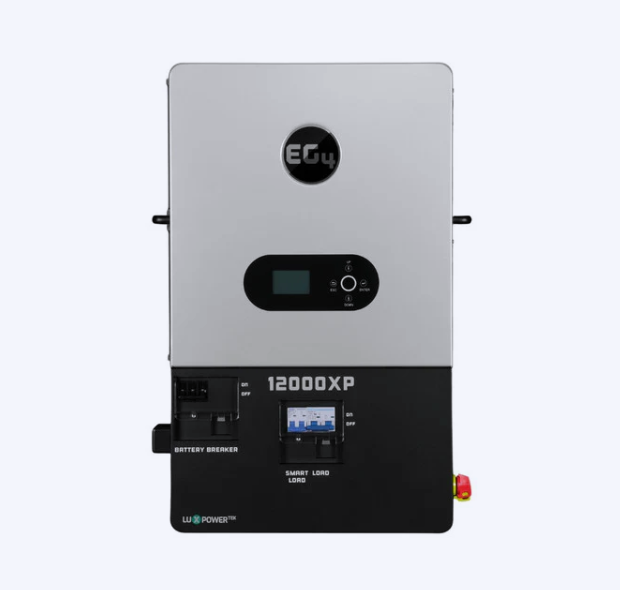

  • EG4 12000XP 48V 12kW Off-Grid Inverter/Charger with 24kW MPPT EG412000XP V1
1/1
  • EG4 12000XP 48V 12kW Off-Grid Inverter/Charger with 24kW MPPT EG412000XP V1
Share:

EG4 12000XP 12kW 48V Split Phase Off-Grid Inverter Charger 24kW MPPT (EG412000XP V1)

No.EG4-12000XP
0.0 (0)
$2,301.44 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
Download
Add to Favorites (0)
  • EG4 12000XP 48V 12kW Off-Grid Inverter/Charger with 24kW MPPT EG412000XP V1
  • EG4 12000XP 48V 12kW Off-Grid Inverter/Charger with 24kW MPPT EG412000XP V1
1/1
  • EG4 12000XP 48V 12kW Off-Grid Inverter/Charger with 24kW MPPT EG412000XP V1
  • Description

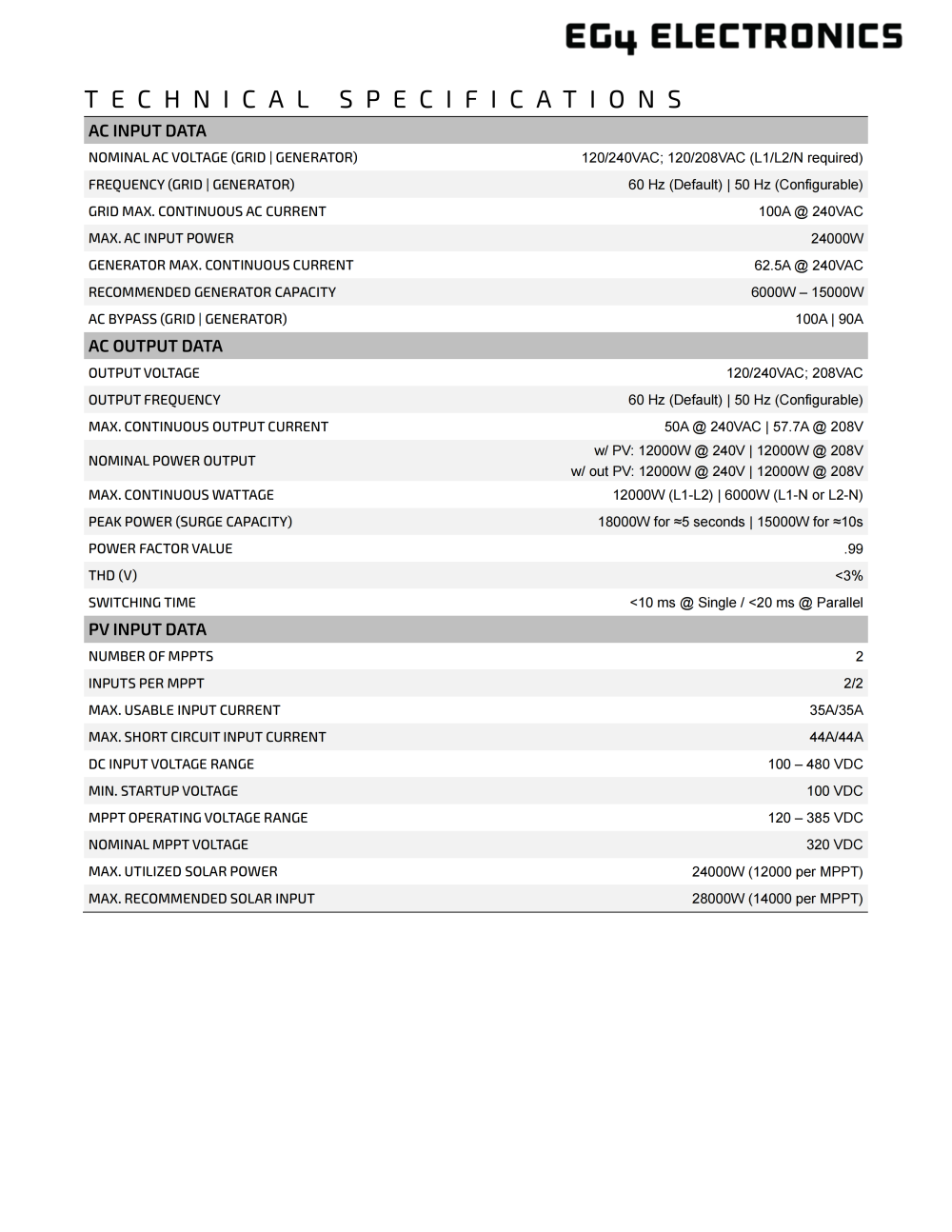

Parameter Value
Rated AC Power Output 12kW (12,000W)
Max. PV Input Power 24kW (24,000W)
MPPT Voltage Range 100V – 480V DC
Max. DC Input Voltage 500V DC
Max. Efficiency (PV to Battery) 99%
Max. Efficiency (Battery to Load) 92.8%
Nominal AC Voltage 120/240V Split-Phase
Max. AC Input Power 24kW
Max. Continuous Output Current 50A @ 240V
Number of MPPTs 2
Battery Compatibility Li-ion (48V), Lead-Acid
Battery Voltage Range 46.4V – 60V
Max. Charge/Discharge Current 250A @ 48V DC
Operating Temperature Range 32°F to 113°F (0°C to 45°C)
Enclosure Rating NEMA 1 (Indoor Use)
Dimensions (H × W × D) 34.25 × 20.87 × 5.91 in
Weight 104.7 lbs (47.5 kg)
Max. Units in Parallel 6 (Up to 72kW Total Output)
Communication Interface RS485, CAN, Wi-Fi
Warranty 5 Years
