Home > All Products > Solar Panels > Axitec 590W AXIworldbiperfect GXXL Bifacial N-Type TOPCon Solar Panel AC-590TGB/144TS

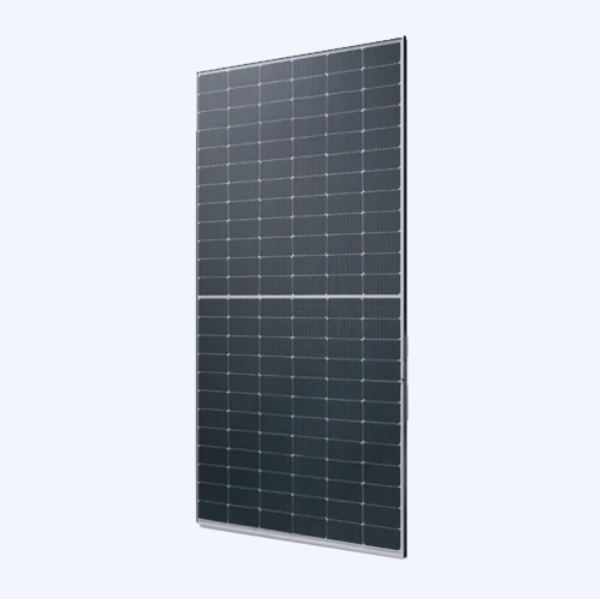

Axitec 590W AXIworldbiperfect GXXL Assembled in USA N-Type TOPCon Bifacial Solar Panel (AC-590TGB/144TS)

No.AC-590TGB/144TS
0.0 (0)
$283.89 $0.00

High-efficiency Axitec 590W AXIworldbiperfect GXXL N-Type TOPCon bifacial solar panel, proudly Assembled in the United States:

  • Assembled in USA (Domestic Content Eligible): Qualifies for U.S. IRA tax credit bonuses to maximize project Return on Investment (ROI).

  • High Efficiency Bifacial Advantage: Features 144 N-type bifacial half-cells with dual-glass protection, delivering up to 30% additional power output from rear-side generation.

  • 30-Year Comprehensive Warranty: Backed by an industry-leading 30-year manufacturer's warranty and 30-year linear performance guarantee (max 1% 1st year degradation, then 0.4% annually).

  • Heavy-Duty Commercial Grade: Built with a robust 1.18 in (30 mm) silver aluminum frame, IP68 junction box, and Stäubli MC4-EVO 2 connectors.

Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
Download
  • Axitec 590W AXIworldbiperfect GXXL Bifacial N-Type TOPCon Solar Panel AC-590TGB/144TS
  • Axitec 590W AXIworldbiperfect GXXL Bifacial N-Type TOPCon Solar Panel AC-590TGB/144TS
1/1
  • Axitec 590W AXIworldbiperfect GXXL Bifacial N-Type TOPCon Solar Panel AC-590TGB/144TS
  • Description

Type

AC-590TGB/144TS

Nominal output

590 Wp

Nominal voltage Umpp

42.87 V

Nominal current Impp

13.77 A

Short circuit current Isc

14.48 A

Open circuit voltag Uoc

51.70 V

Module conversion efficiency

22.84%

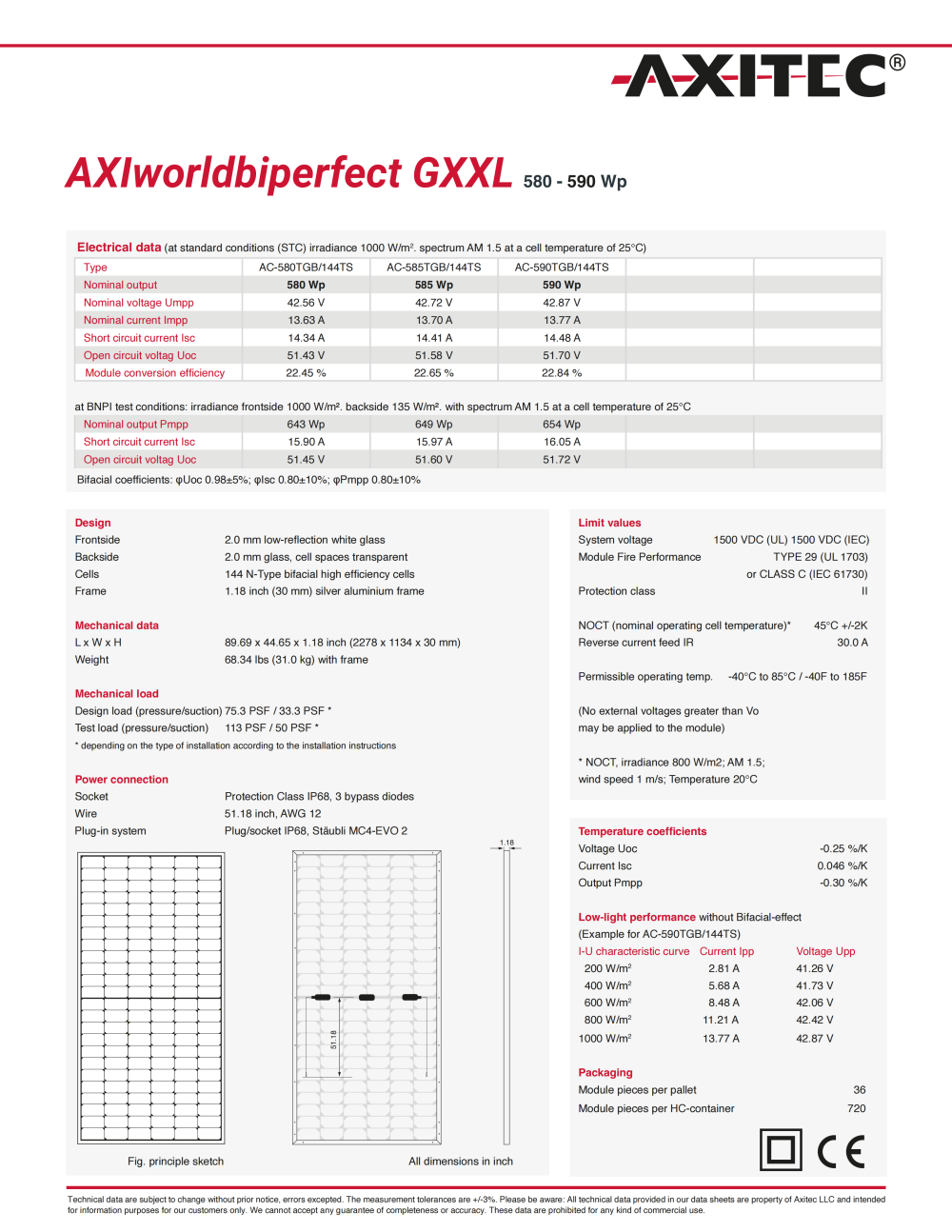

Specification Details
Manufacturer AXITEC
Model AC-590TGB/144TS
Series AXIworldbiperfect GXXL
Cell Technology N-Type TOPCon Bifacial
Cell Configuration 144 Half Cells
Maximum Power (Pmax) 590 W
Module Efficiency 22.84%
Maximum Power Voltage (Vmp) 42.87 V
Maximum Power Current (Imp) 13.77 A
Open Circuit Voltage (Voc) 51.70 V
Short Circuit Current (Isc) 14.48 A
Temperature Coefficient (Pmax) -0.30 % / K
Maximum System Voltage 1500 V DC
Nominal Operating Cell Temperature 45°C ± 2°C
Operating Temperature -40°C to +85°C
Dimensions 89.69 × 44.65 × 1.18 in
Weight 68.34 lb
Front Glass 2.0 mm low-reflection tempered glass
Rear Glass 2.0 mm glass
Frame 30 mm silver anodized aluminum
Junction Box IP68 rated with 3 bypass diodes
Connector MC4-EVO2 compatible
Cable 51.18 in (AWG 12)
Packaging 36 modules per pallet / 720 modules per container
