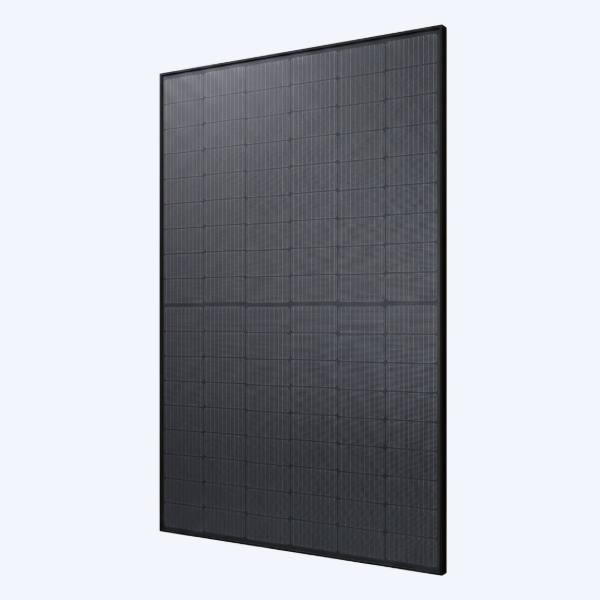

Product Description
Designed for homeowners and solar contractors seeking reliable energy solutions
This solar panel is engineered to meet the needs of residential and light commercial users who prioritize durability and efficiency. Incorporating cutting-edge solar panel bifacial technology and renowned n type solar panels, it harnesses sunlight from both sides to maximize output. The panel’s sleek black solar panel frame blends seamlessly with rooftop aesthetics, making it suitable for residential installations while also appealing to commercial projects needing robust, sustainable power solutions. Its comprehensive design supports diverse environments, meeting evolving energy demands with consistent performance.
Advanced technical specifications ensure optimal power generation
The product features an impressive 23.04% module efficiency, made possible by 108 half-cells arranged in a glass/glass configuration utilizing n type solar panels. The bifacial design significantly increases energy capture by absorbing reflected light, improving yield beyond traditional panels. Built with a sturdy black solar panel frame and semi-tempered glass layers front and back, it operates reliably across temperatures from -40°C to +85°C. Supporting up to 1500 V DC system voltage, the panel integrates easily into modern arrays, meeting rigorous electrical and environmental standards without compromising safety or durability.
Versatile applications across residential and commercial solar projects
Ideal for grid-tied systems and off-grid setups, the solar panel bifacial technology dramatically boosts energy returns in urban and rural settings alike. It is a preferred option for upgrading existing installations or new builds requiring environmentally responsible energy. Thanks to its compatibility with high system voltages and UL certification, this black solar panel supports compliance with energy standards while enhancing ROI. The product’s design and performance enable businesses and homeowners to reduce carbon footprints and energy costs effectively.
|

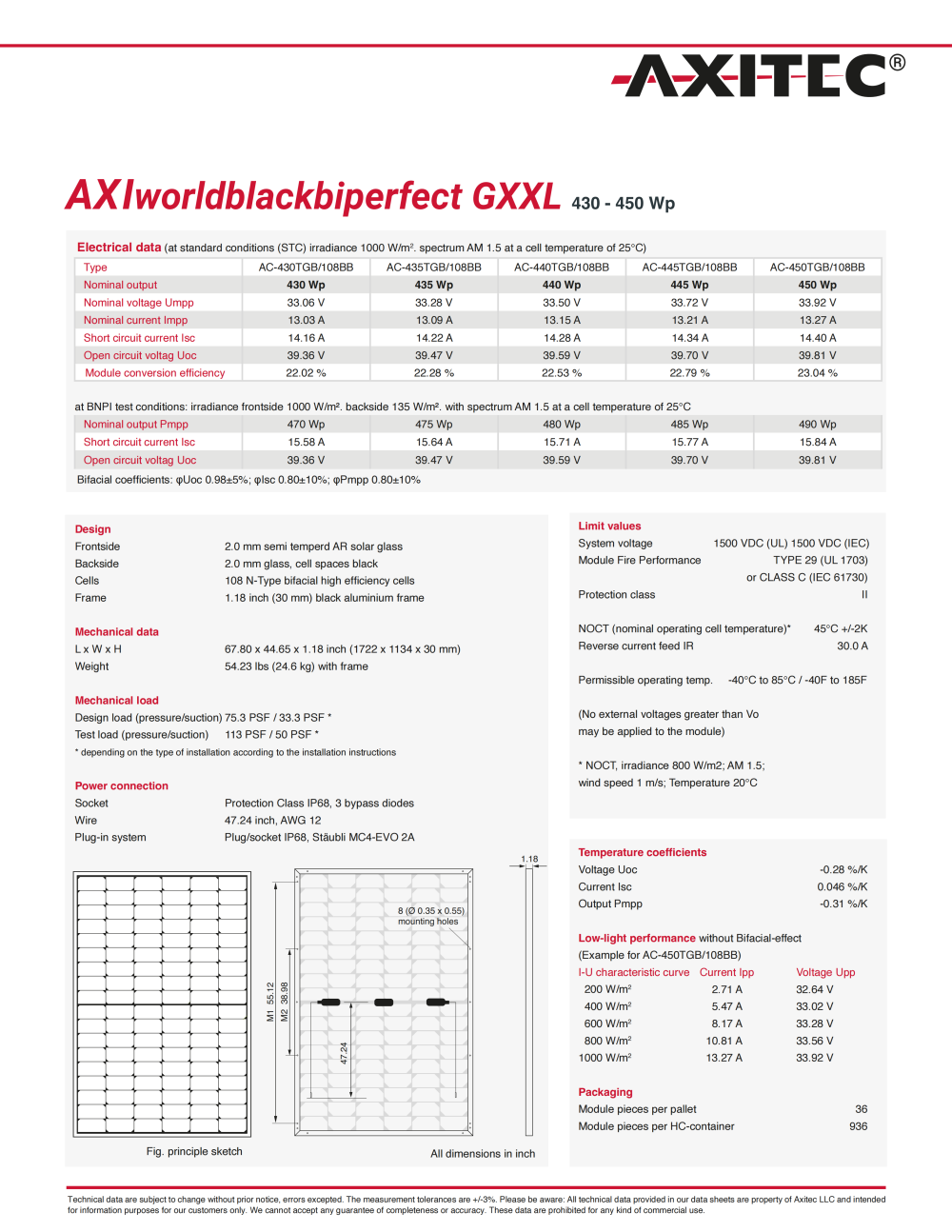

Type
|
AC-450TGB/108BB
|
|
Nominal output
|
450 Wp
|
|
Nominal voltage Umpp
|
33.92V
|
|
Nominal current Impp
|
13.27A
|
|
Nominal current Impp
|
14.40A
|
|
Open circuit voltag Uoc
|
39.81V
|
|
Module conversion efficiency
|
23.04 %
|
| Specification |
Details |
| Manufacturer |
AXITEC |
| Model |
AC-450TGB/108/FS30/BF |
| Series |
AXIworldblackbiperfect GXXL |
| Cell Technology |
N-Type Bifacial, Glass/Glass |
| Cell Configuration |
108 Half-Cells |
| Maximum Power (Pmax) |
450 W |
| Module Efficiency |
Up to 23.04% |
| Maximum Power Voltage (Vmp) |
33.92 V |
| Maximum Power Current (Imp) |
13.27 A |
| Open Circuit Voltage (Voc) |
39.81 V |
| Short Circuit Current (Isc) |
14.40 A |
| Temperature Coefficient (Pmax) |
-0.31% / °C |
| Temperature Coefficient (Voc) |
-0.28% / °C |
| Temperature Coefficient (Isc) |
+0.046% / °C |
| Nominal Operating Cell Temperature (NOCT) |
45°C ± 2°C |
| Maximum System Voltage |
1500 V DC |
| Maximum Series Fuse Rating |
30 A |
| Operating Temperature |
-40°C to +85°C |
| Dimensions |
67.80 × 44.65 × 1.18 in |
| Weight |
54.23 lb |
| Front Glass |
2.0 mm semi-tempered AR glass |
| Back Glass |
2.0 mm glass |
| Frame |
Black Anodized Aluminum |
| Junction Box |
IP68, 3 bypass diodes |
| Connector |
Stäubli MC4-EVO2 |
| Output Cable |
12 AWG, ~47.24 in |
| Mechanical Load |
75.3 PSF / 33.3 PSF (design) |
| Pallet Quantity |
36 modules per pallet |
FAQ
What makes the Axitec 450W GXXL bifacial solar panel efficient for residential use?
Our Axitec 450W GXXL panel features advanced n type solar panels technology and bifacial design, capturing sunlight from both sides for higher energy yield. Its 23.04% module efficiency and durable construction make it an excellent choice for residential solar power systems seeking reliable performance.
Can you help with installation requirements for this black solar panel?
Yes, we provide guidance on installation specifics. This black solar panel includes robust black anodized aluminum framing and supports up to 1500 V DC systems. Its bifacial design performs best when installed in environments allowing light reflection onto the back side for maximum energy production.
Do you offer local support or fast delivery for the Axitec solar panels?
We operate a local warehouse and service center in Anaheim, CA, which helps us maintain ready stock of this panel for quick shipping. Customers in the region can also visit to inspect products and consult with our experts on project requirements or maintenance for the solar panel bifacial solutions we provide.
Are there any special maintenance tips for the bifacial solar panels you offer?
Our solar panel bifacial units are built with durable glass/glass layers and IP68 junction boxes, designed for long-lasting performance in varied conditions. Regular cleaning to remove dirt and debris on both sides helps maintain optimal efficiency, and we are available to advise on best maintenance practices.
